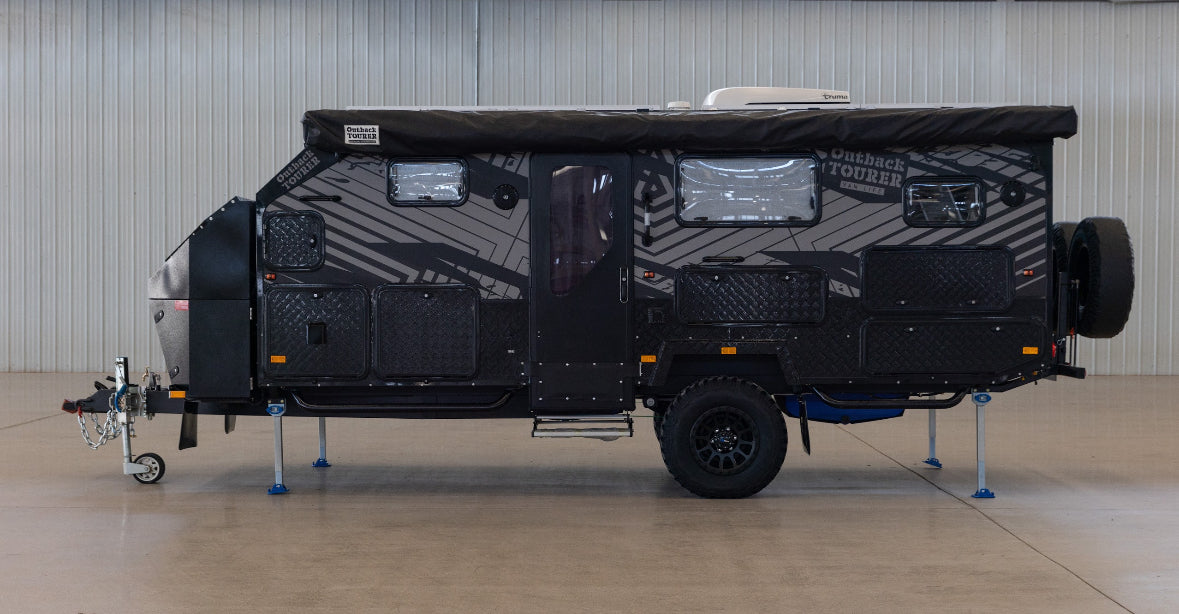

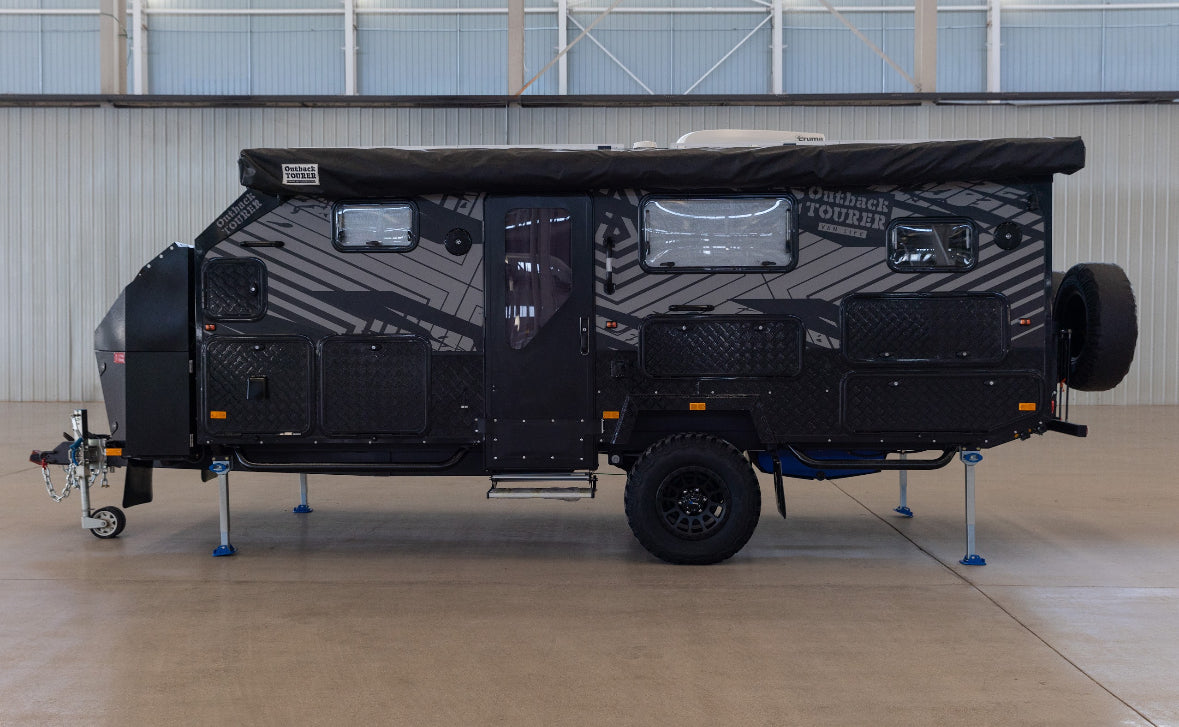

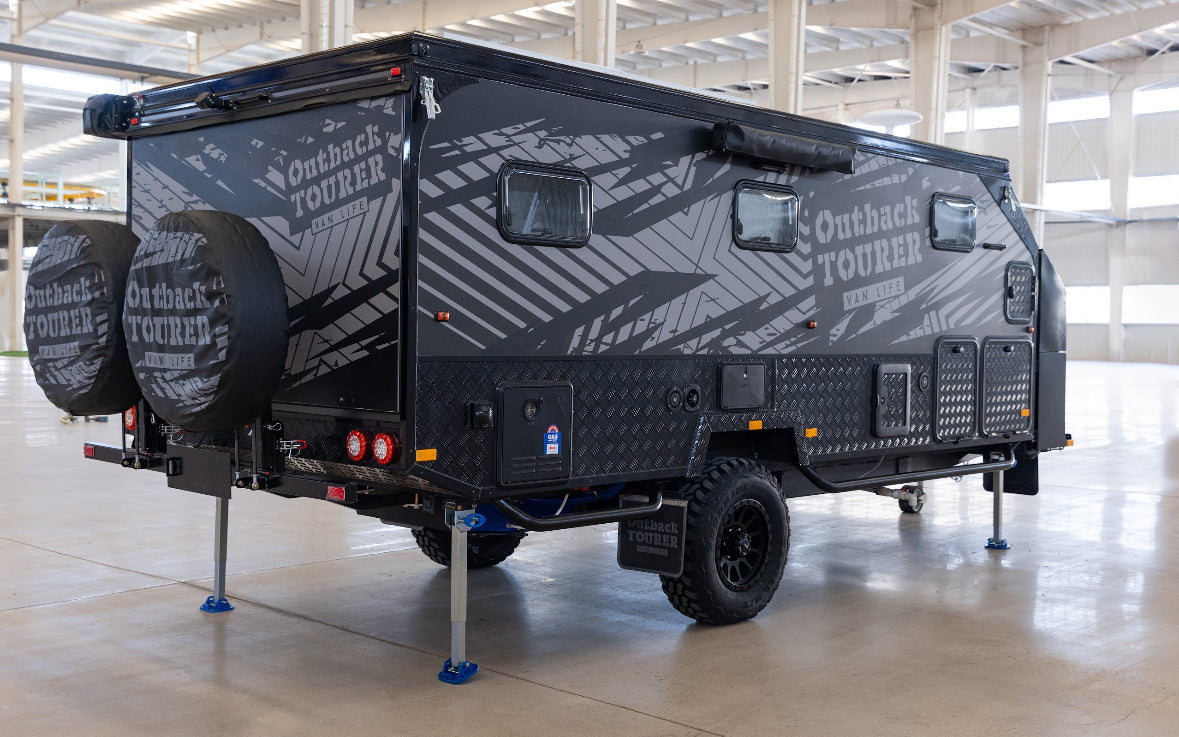

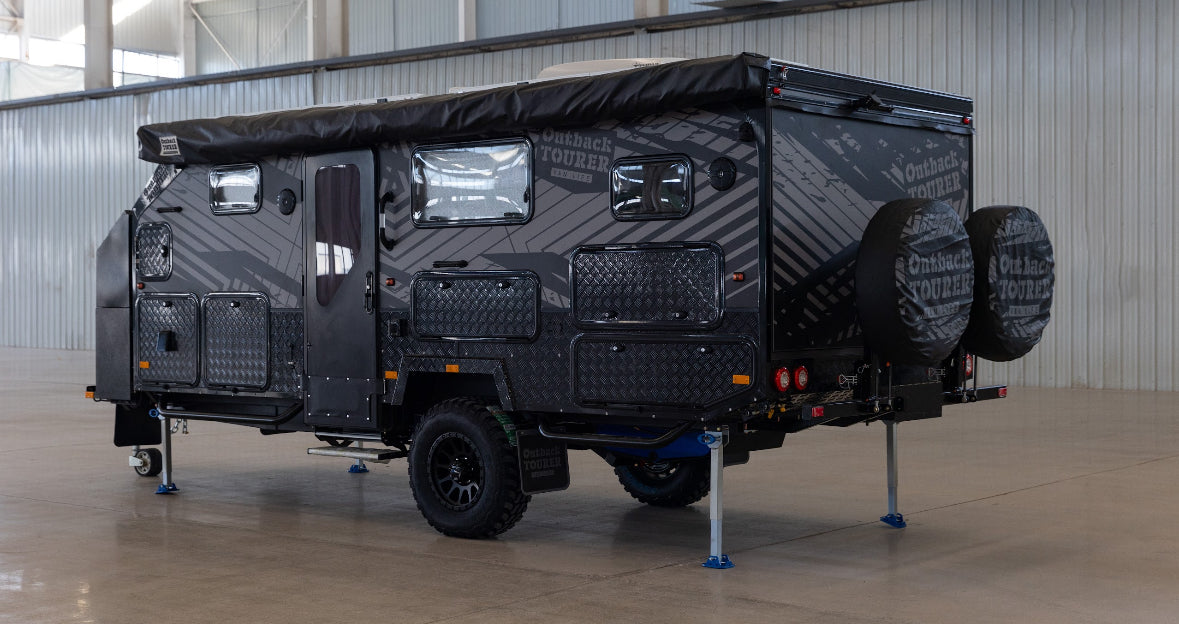

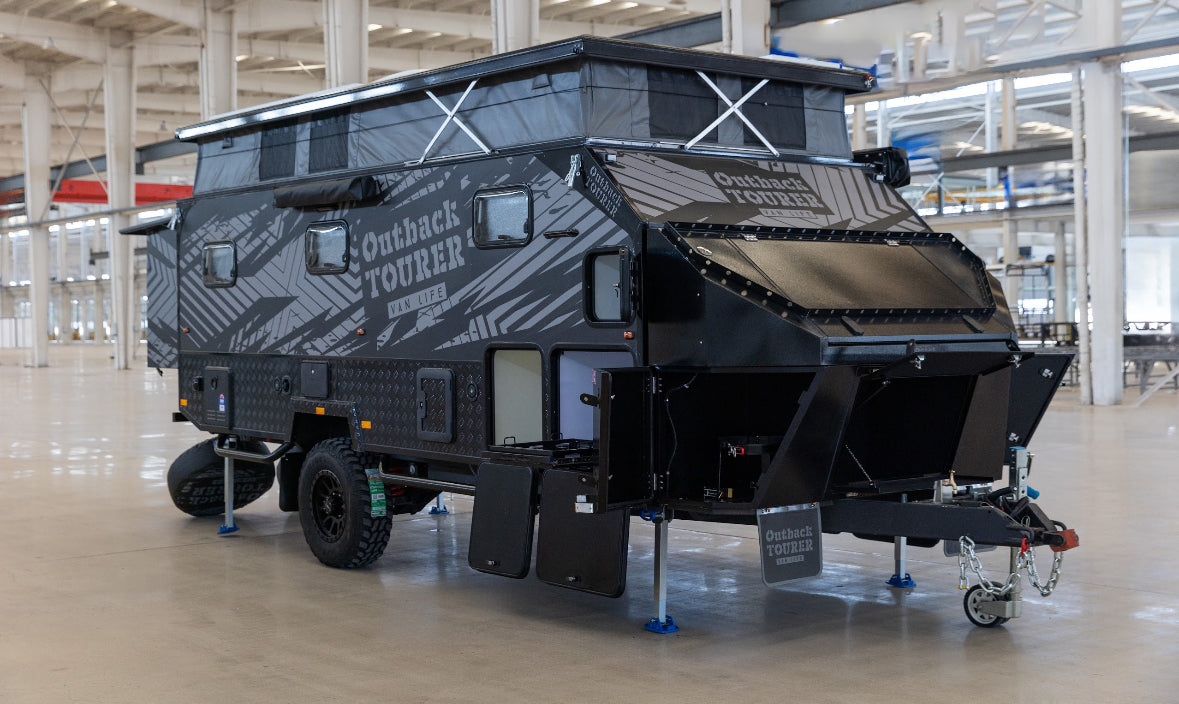

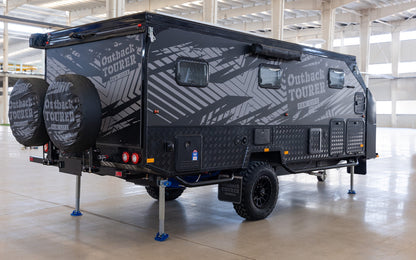

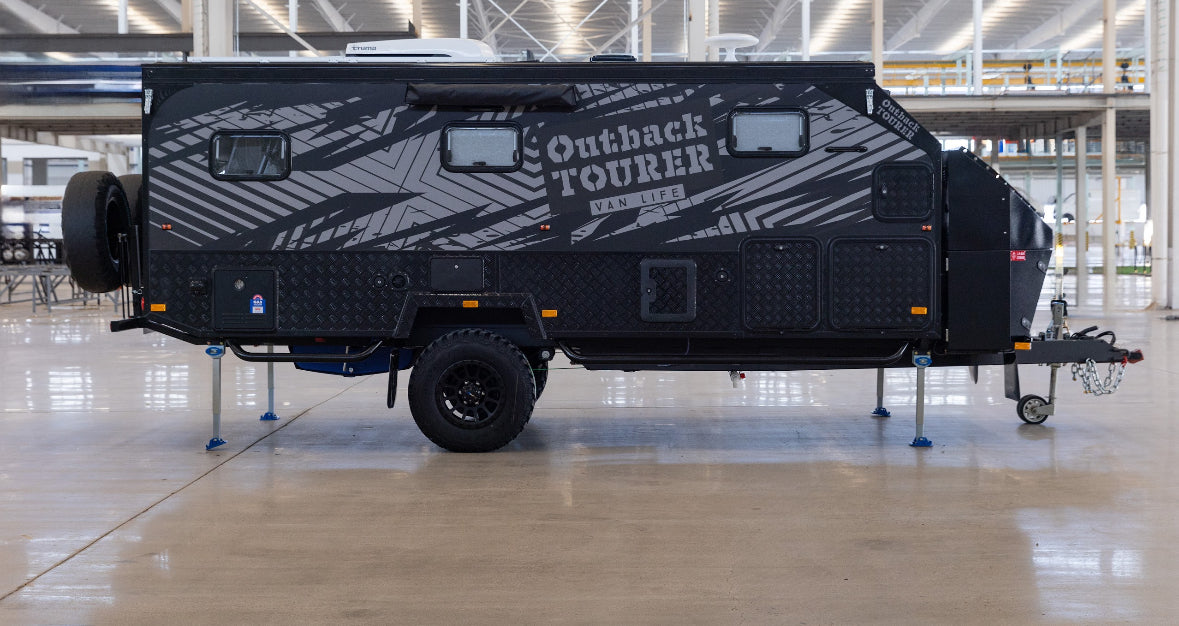

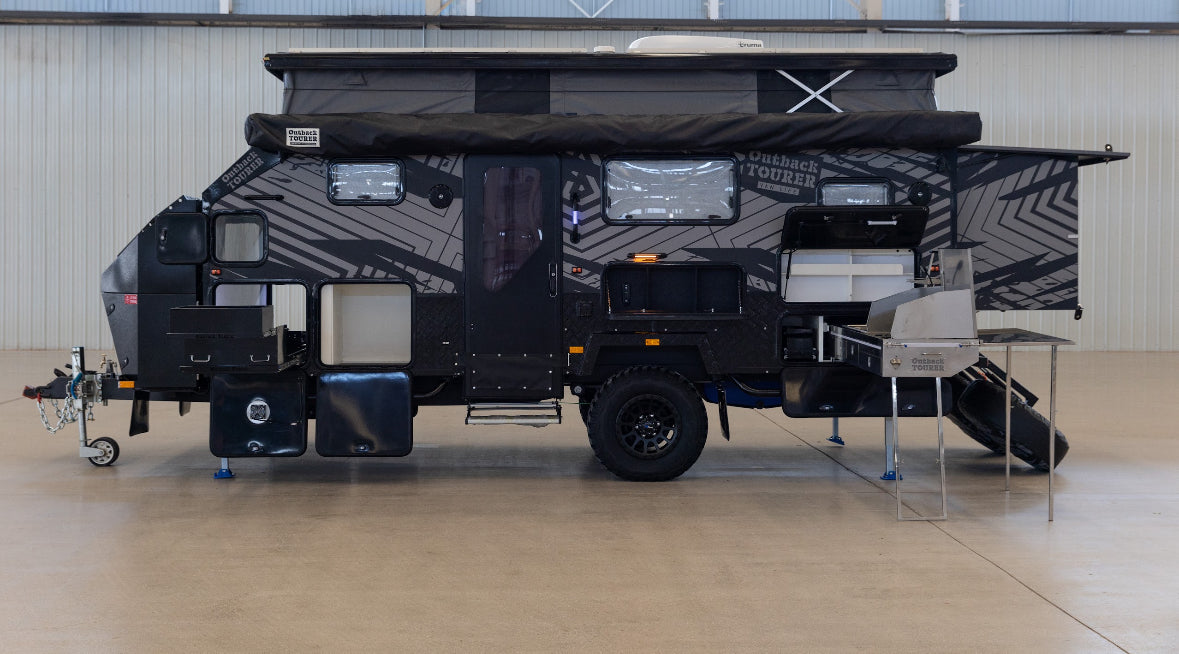

OT 16C Hybrid caravan $66,990 ( Club Lounge )
VAN AVAILABLE IN SILVER, SANDY OR WHITE COLOUR

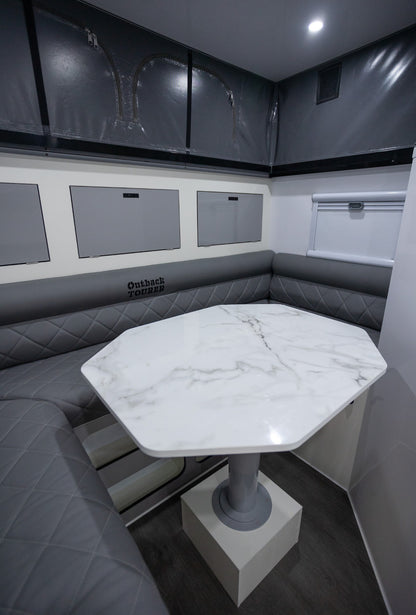

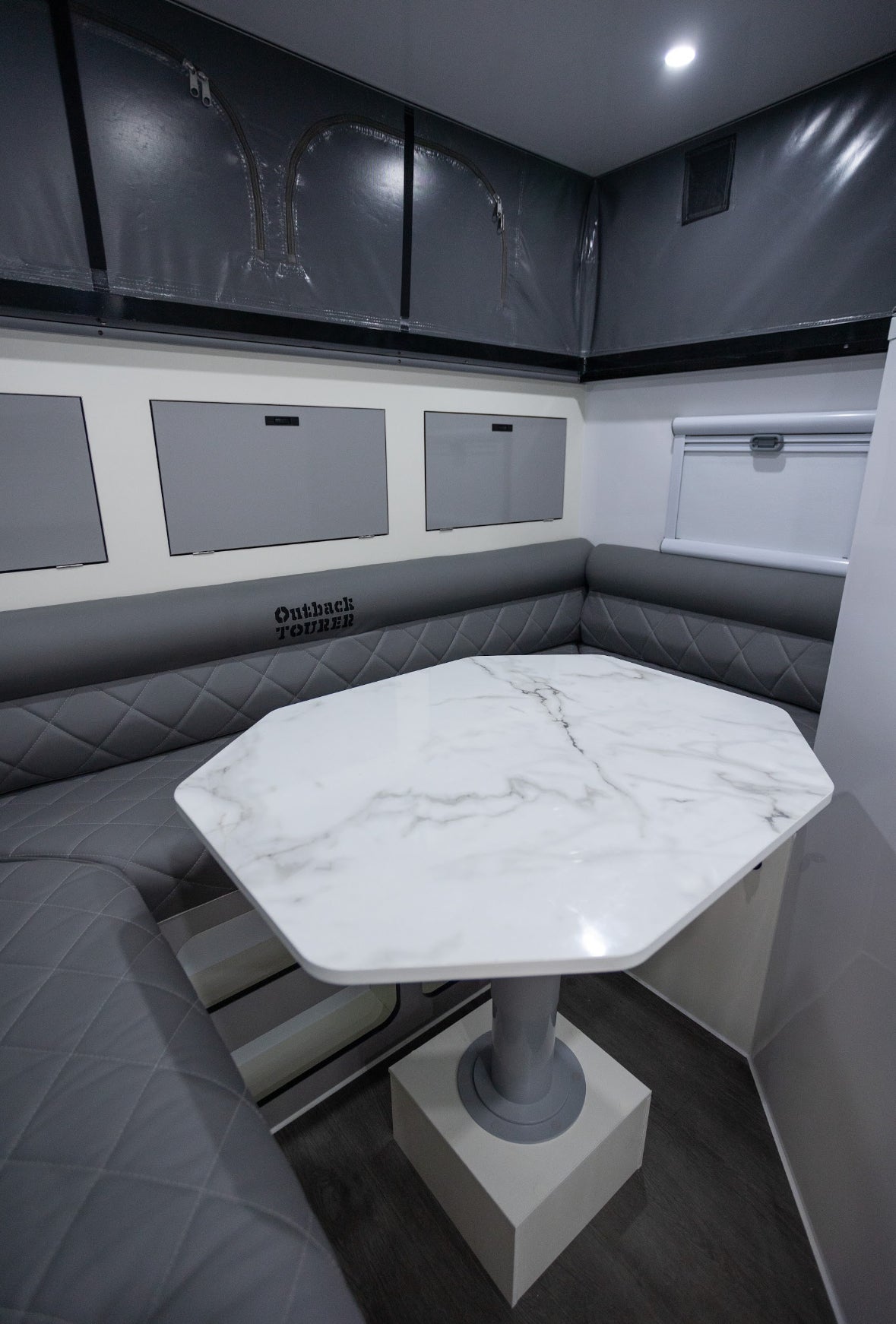

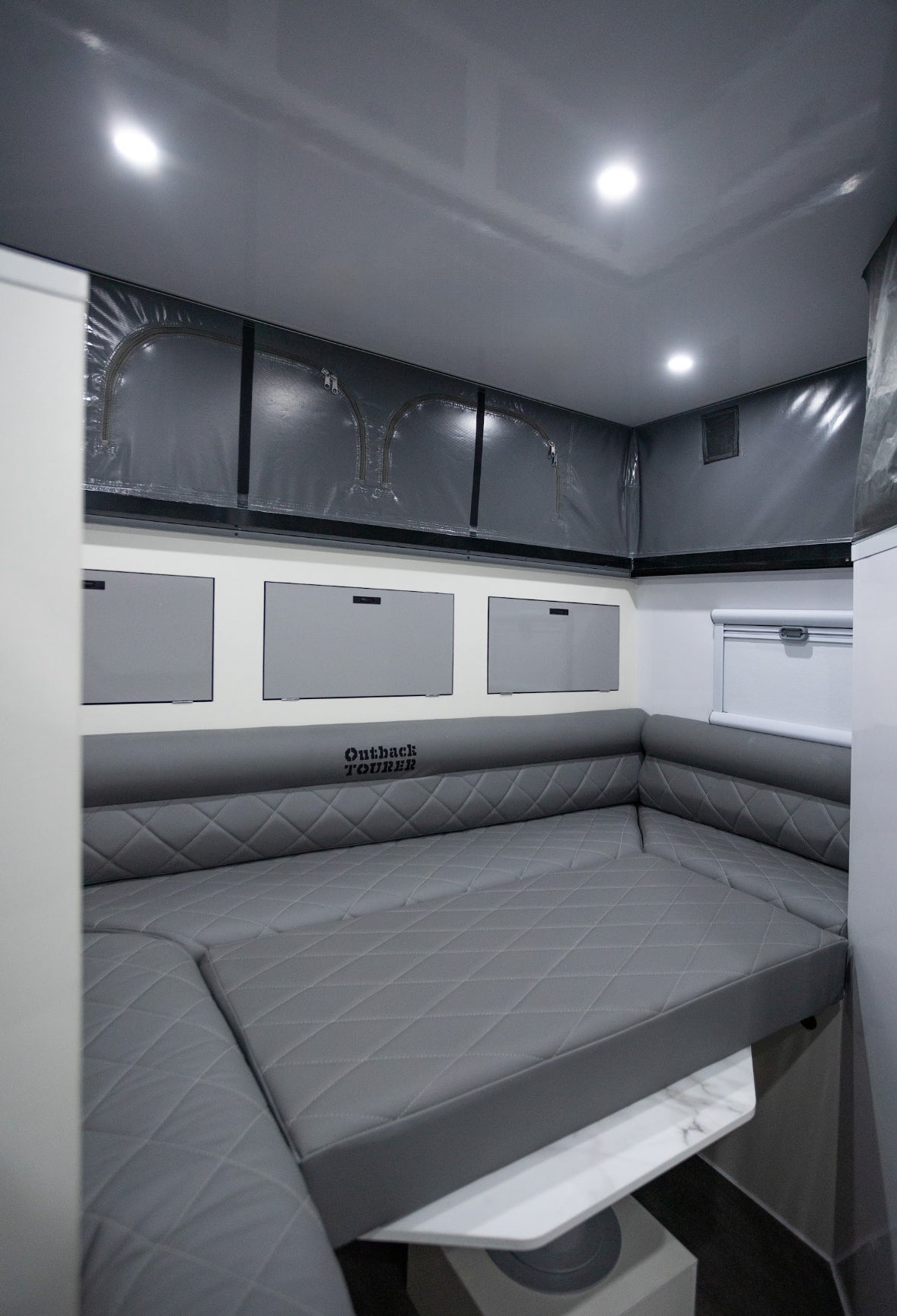

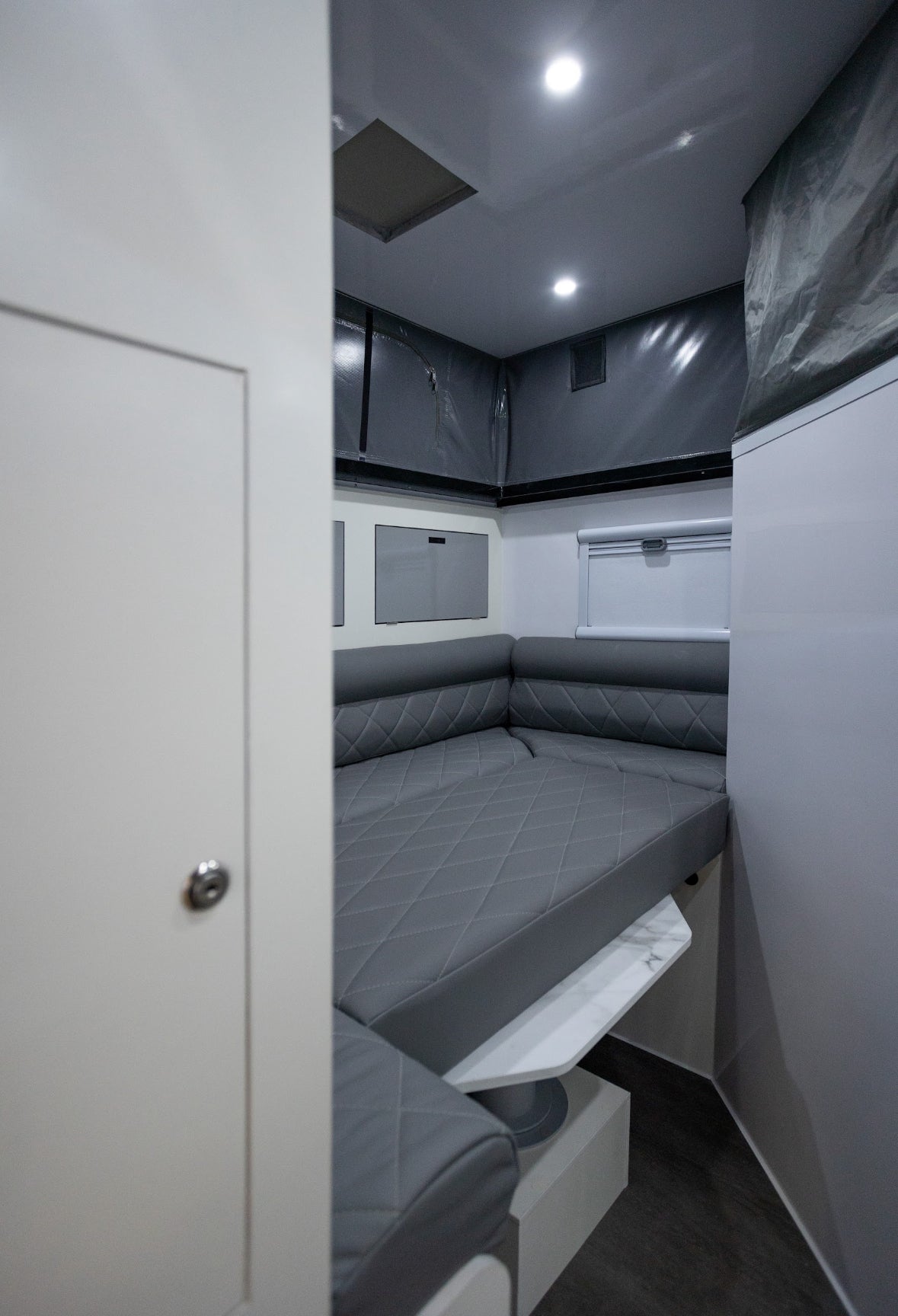

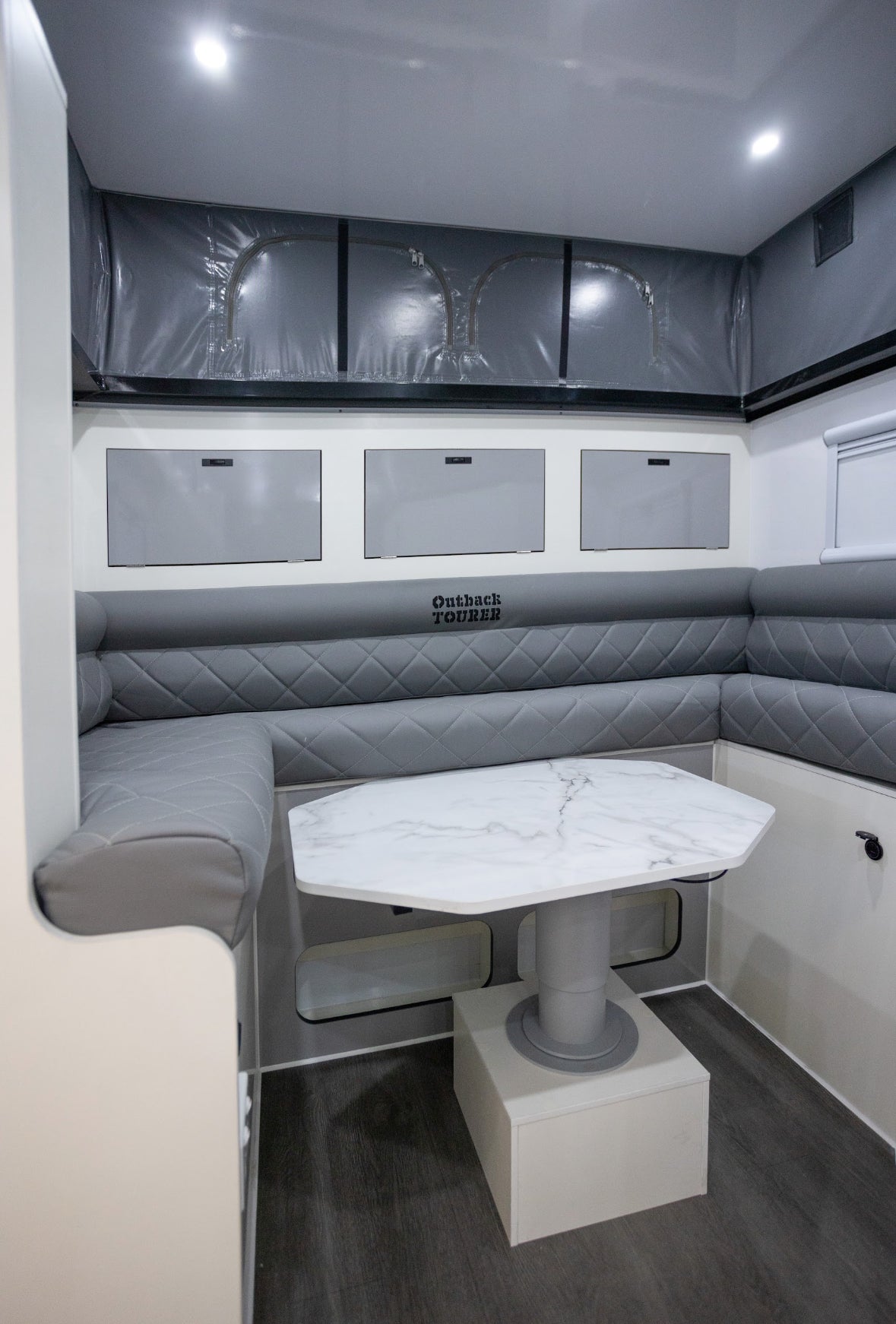

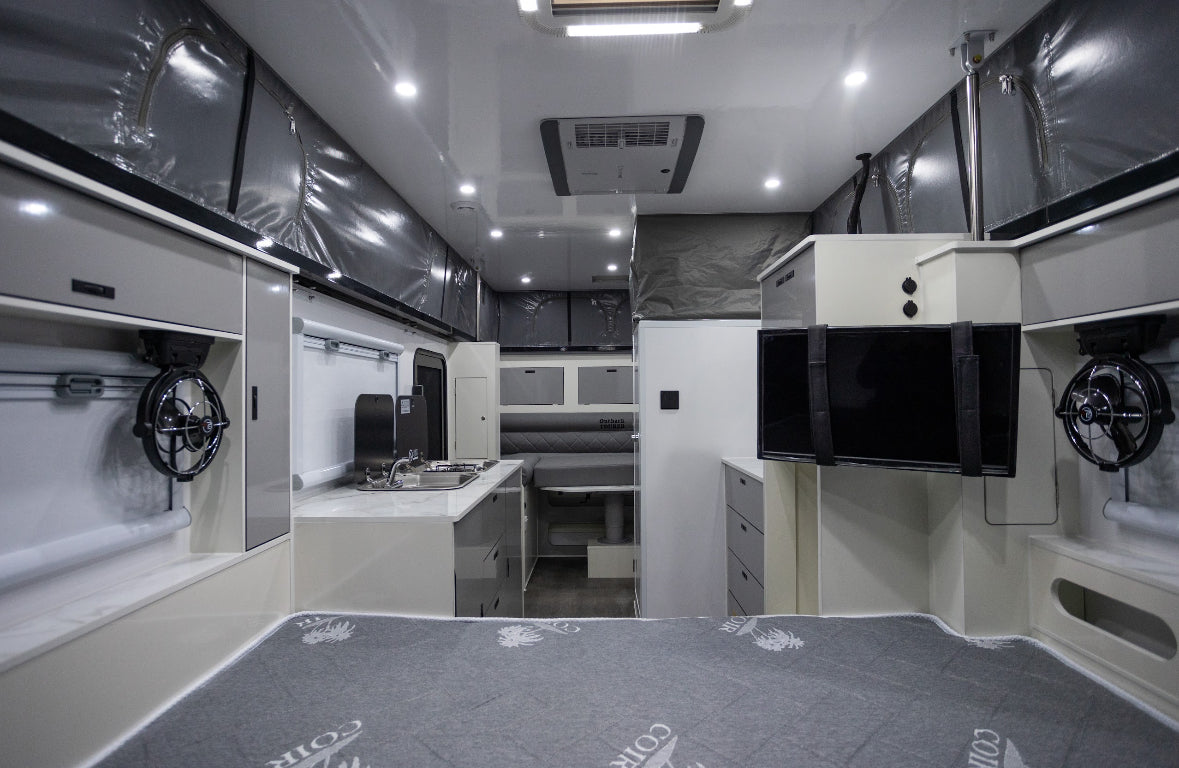

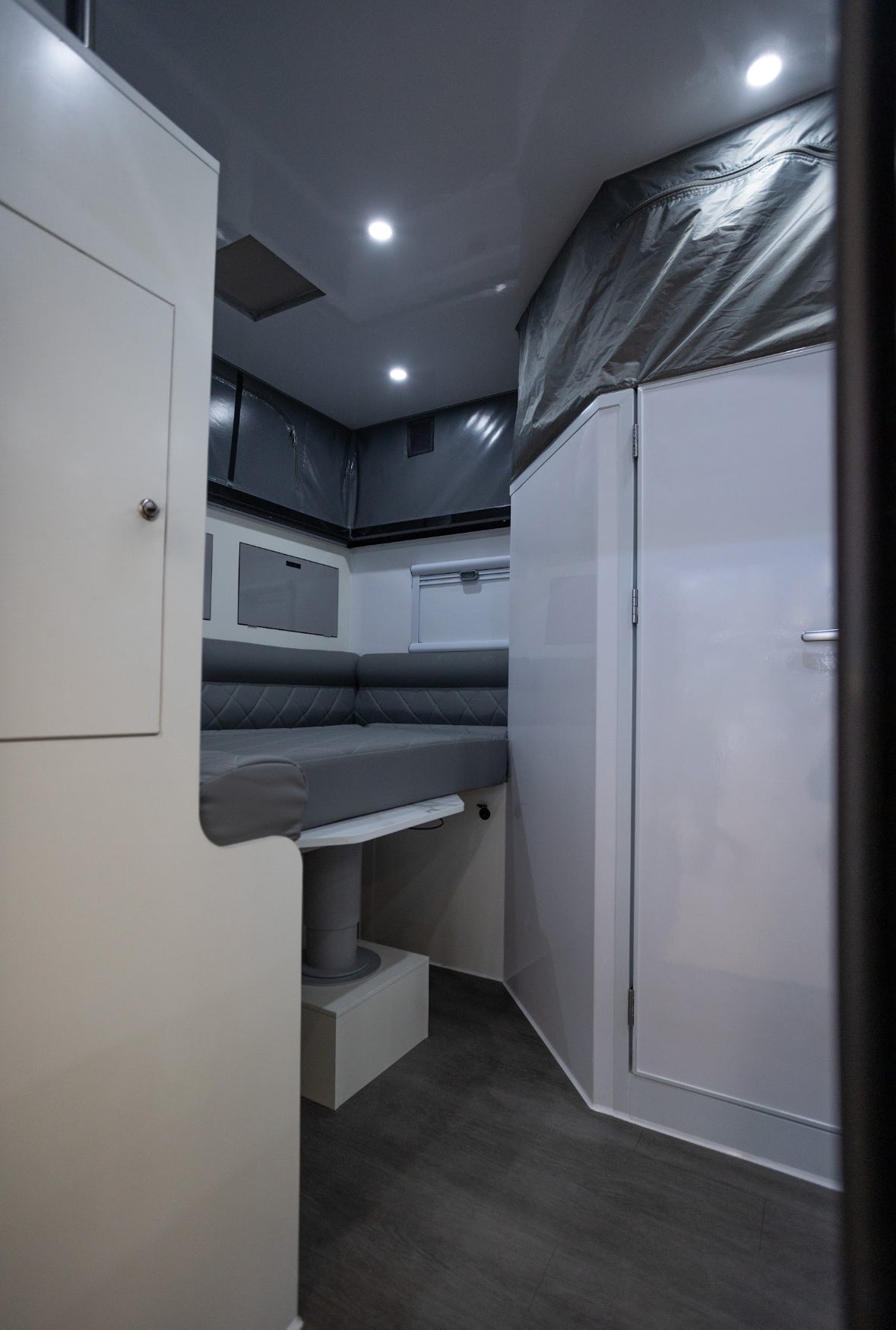

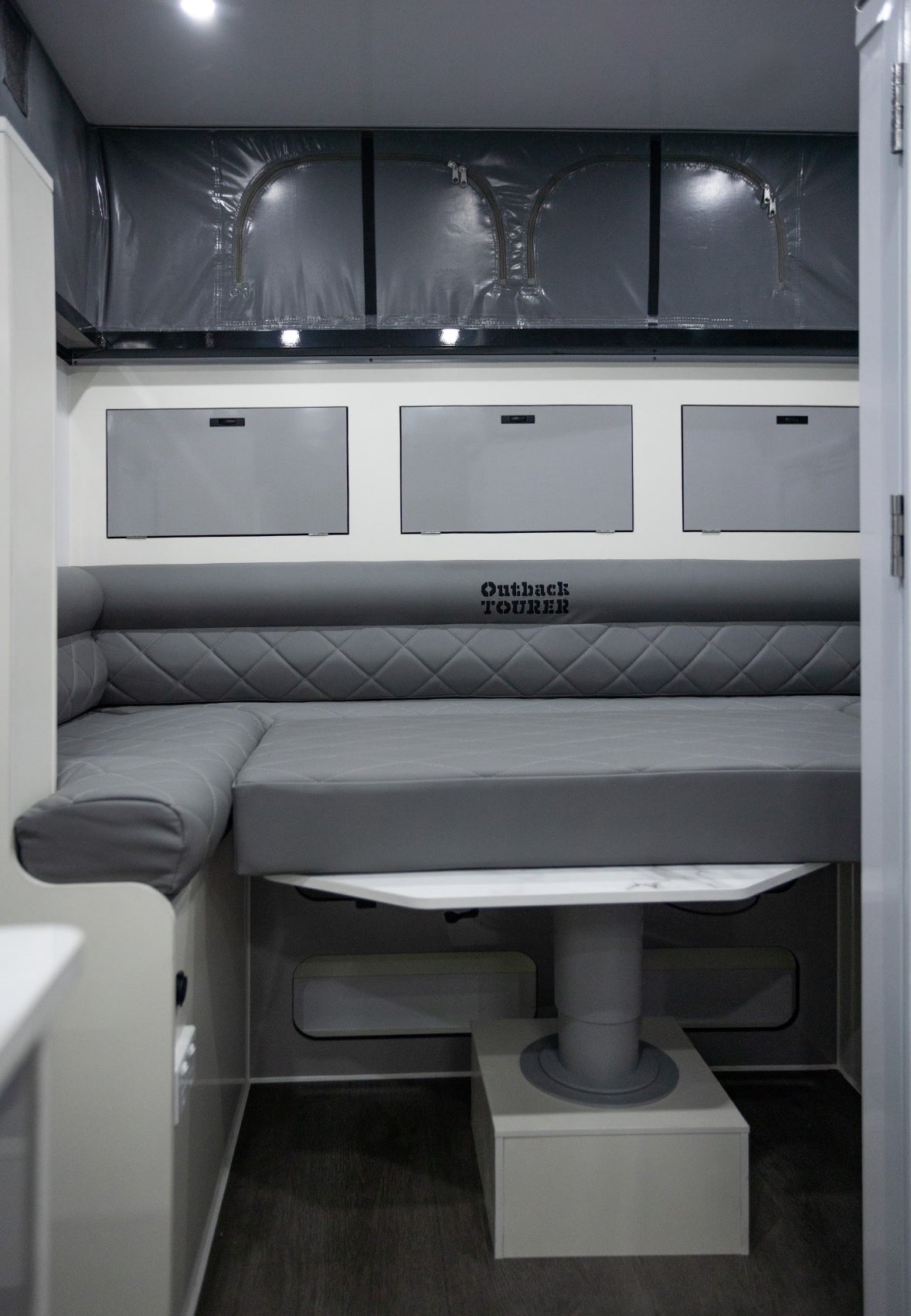

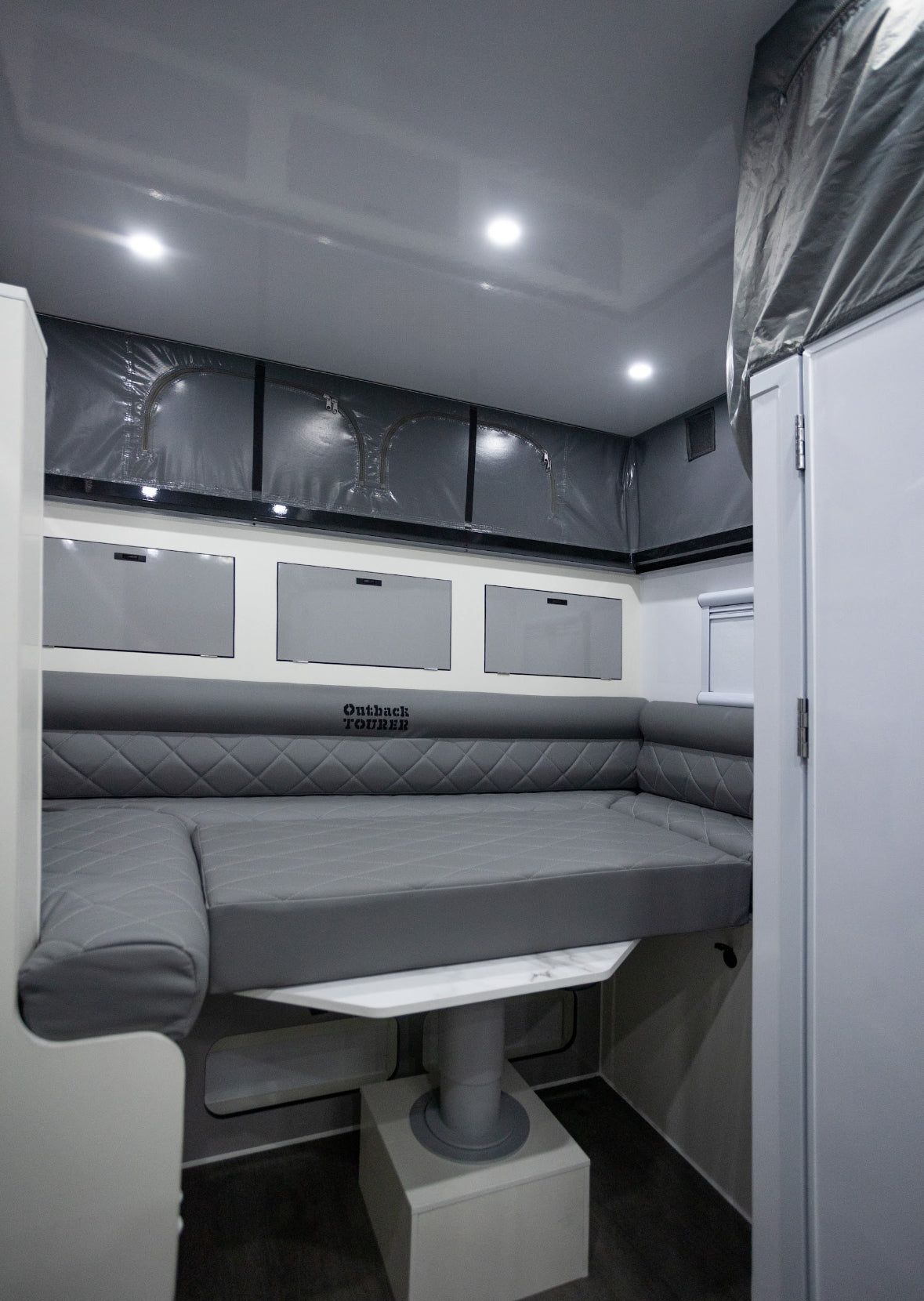

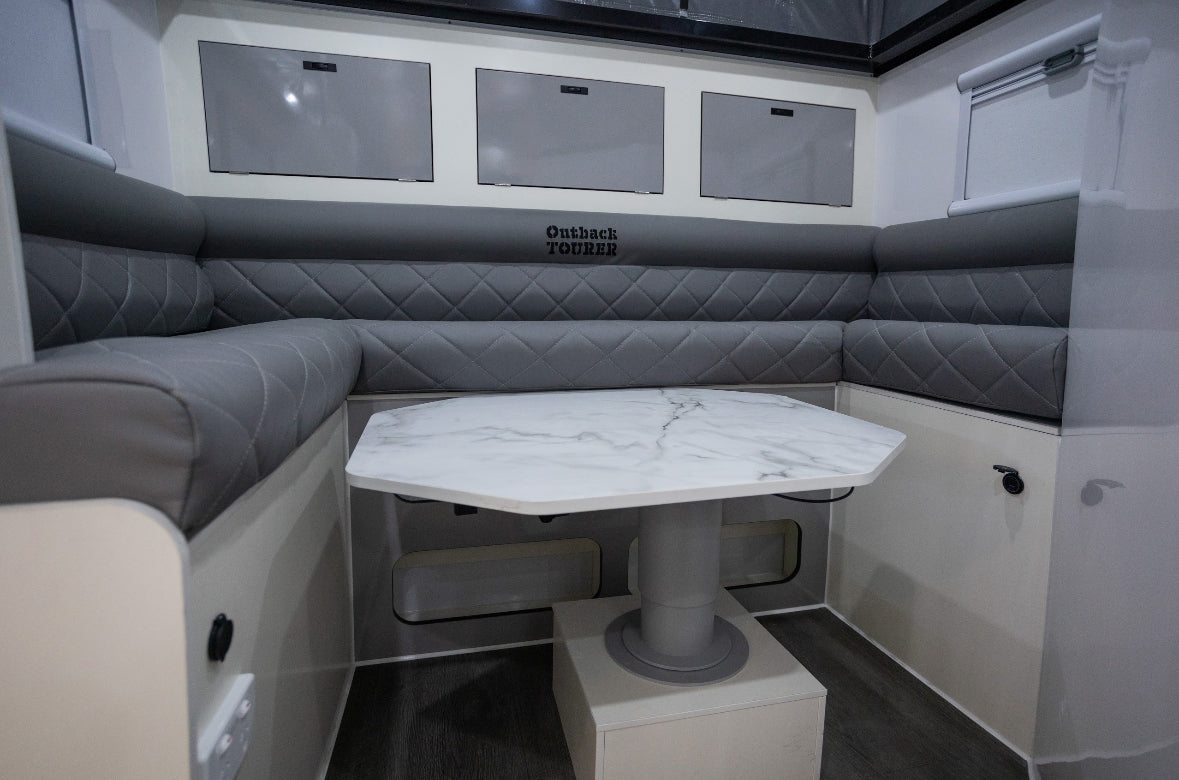

The club lounge in the OT16C Hybrid Caravan is the heart of the living space, offering both comfort and versatility. With spacious seating, plush cushions, and luxurious pleather upholstery, it creates a cosy, inviting atmosphere to relax after a day of adventure. The open layout is perfect for socialising, whether you're enjoying a meal, playing games, or sharing stories around the central table.

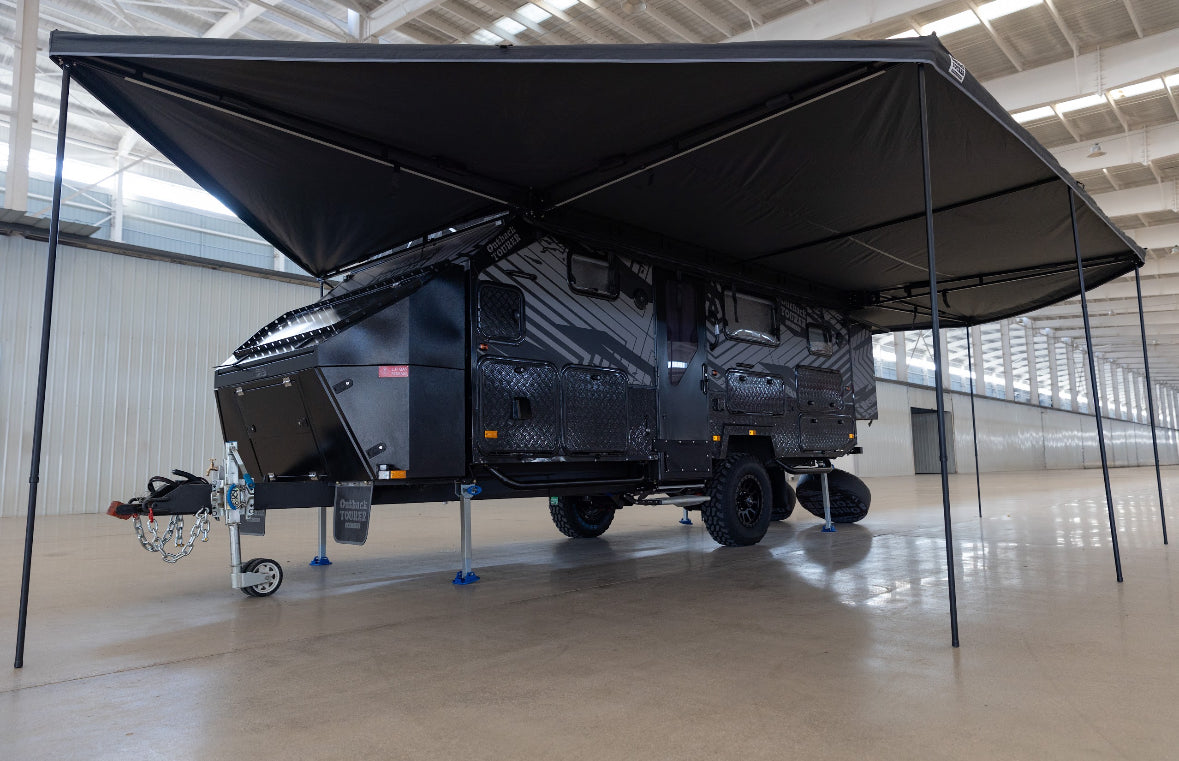

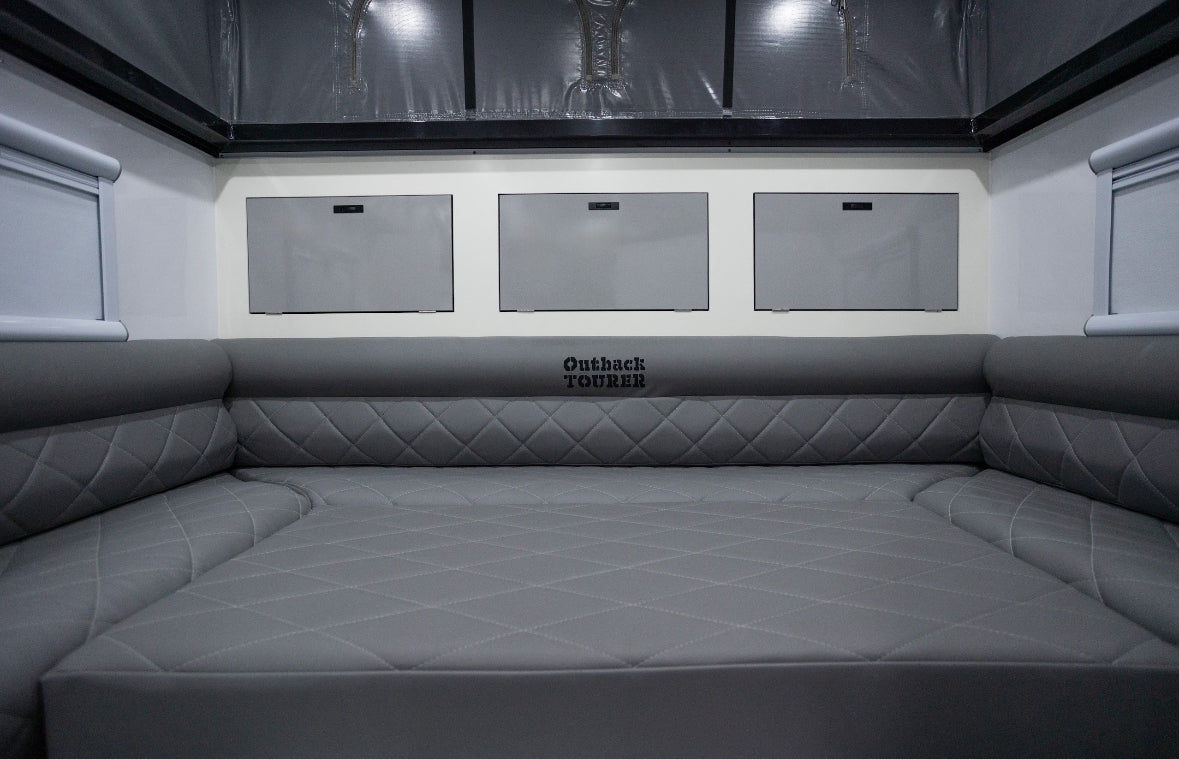

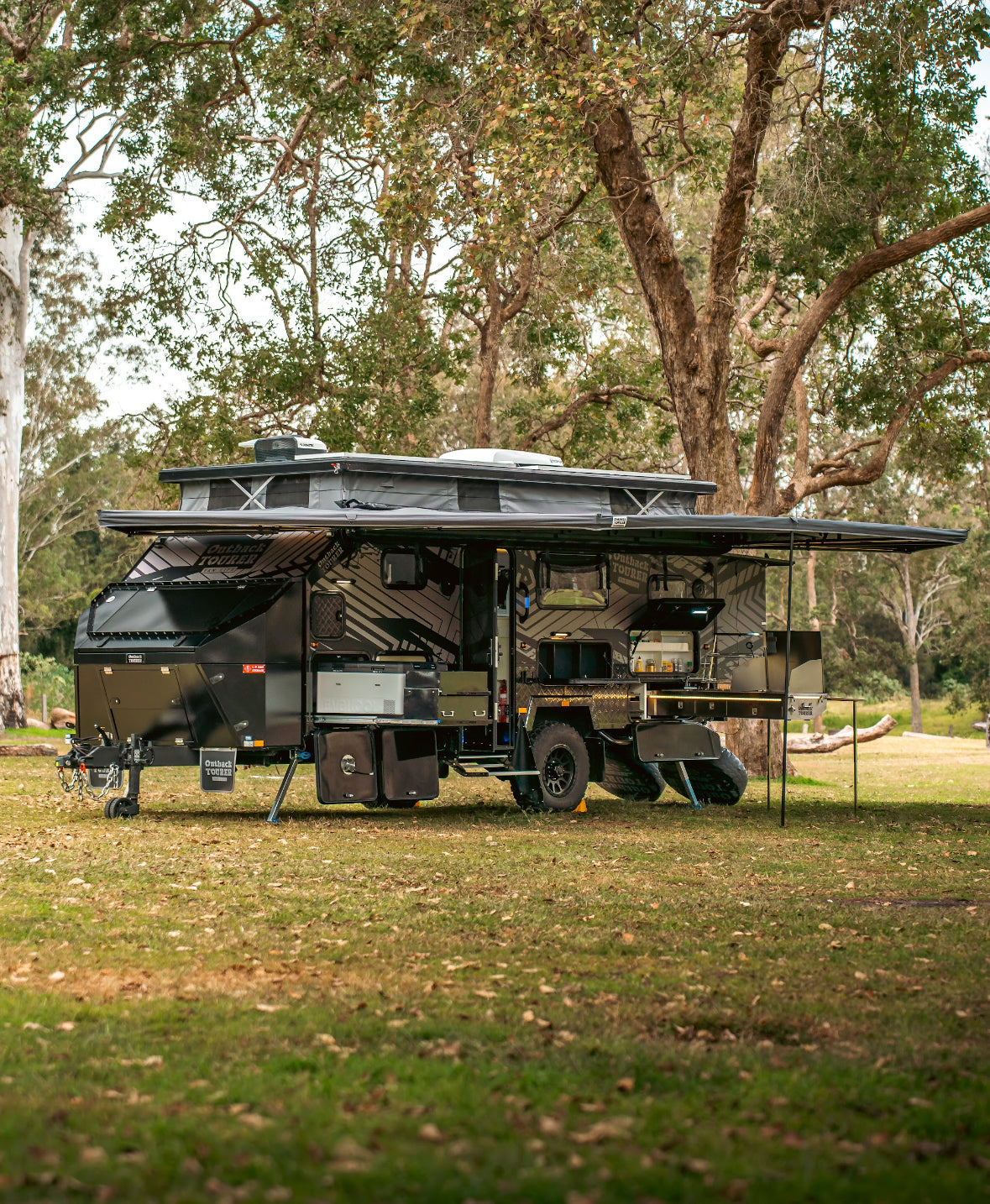

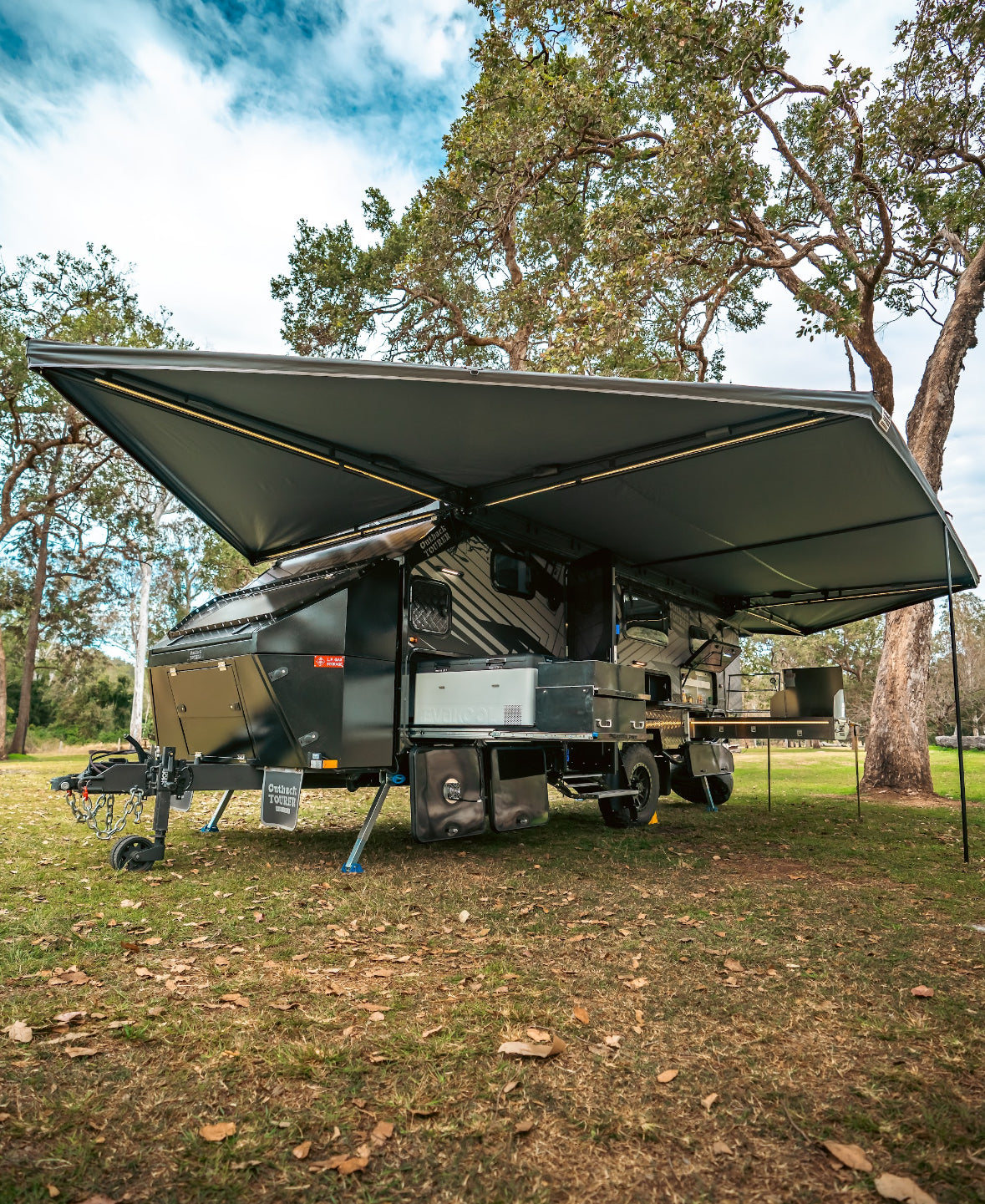

Built for outdoor living, the OT16C features a massive 360-degree awning that expands your space and provides full coverage, allowing you to enjoy the outdoors in all kinds of weather. Powered by a 850W solar system and a 400Ah / 800Ah lithium battery, you’ll stay off-grid and connected wherever your adventures take you. And when extra sleeping space is needed, the lounge easily converts to accommodate overnight stays, making it the perfect blend of flexibility and comfort.
VAN AVAILABLE IN SILVER, SANDY OR WHITE COLOUR

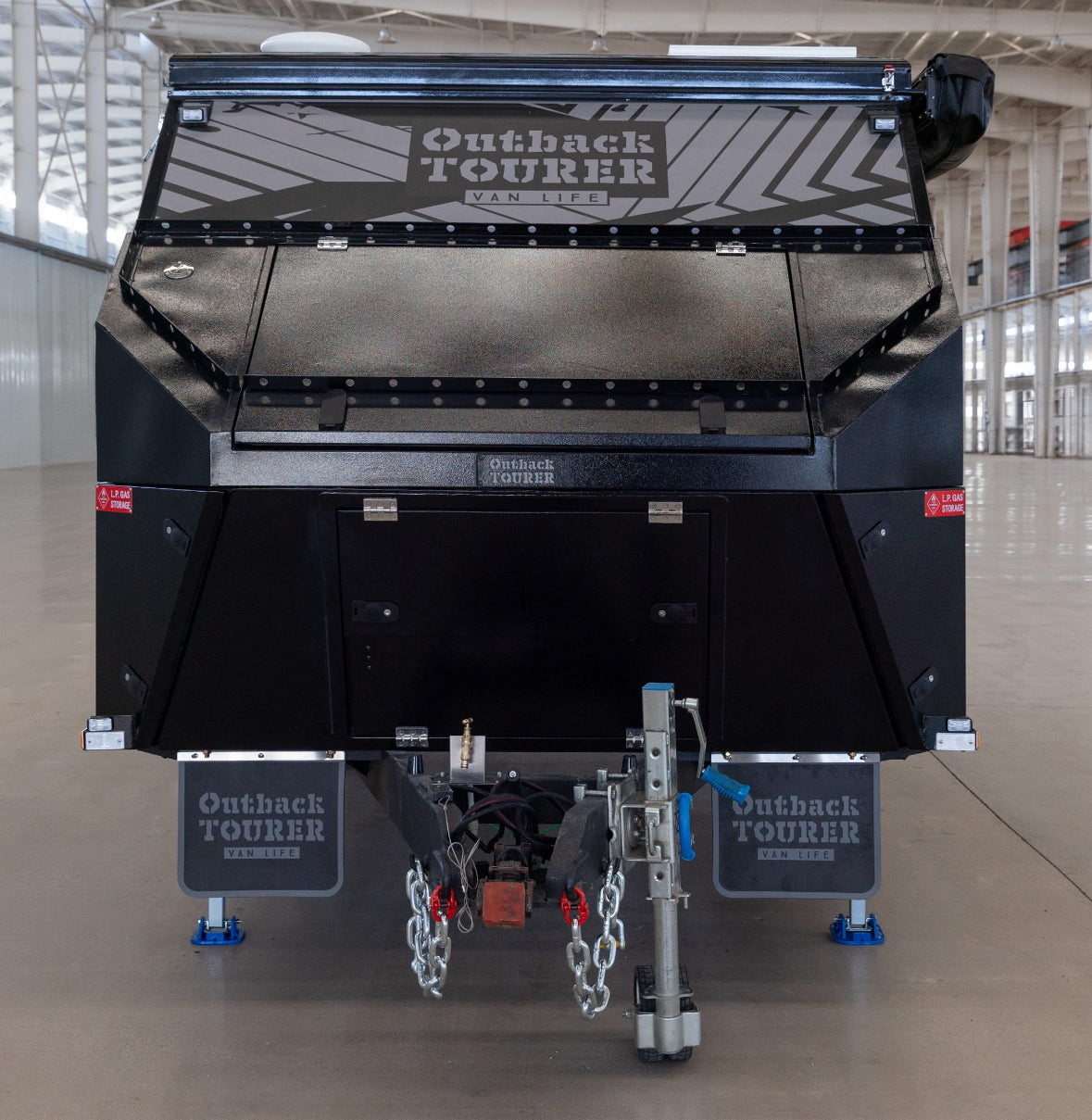

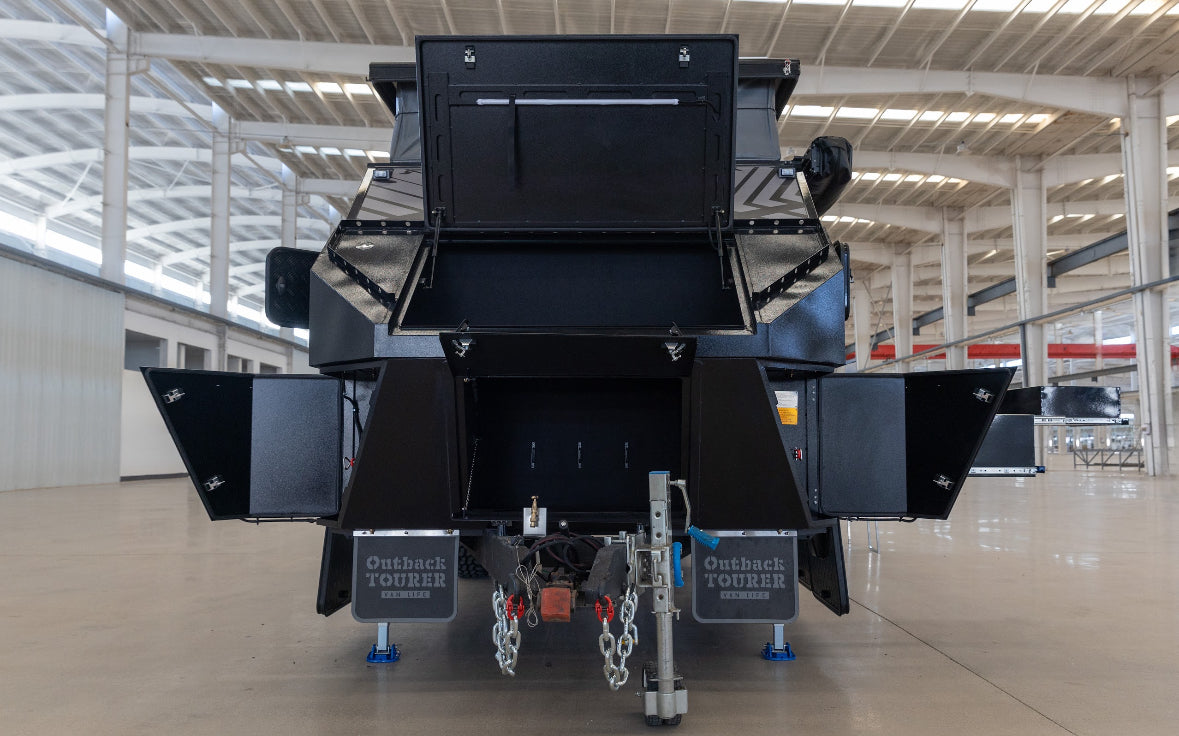

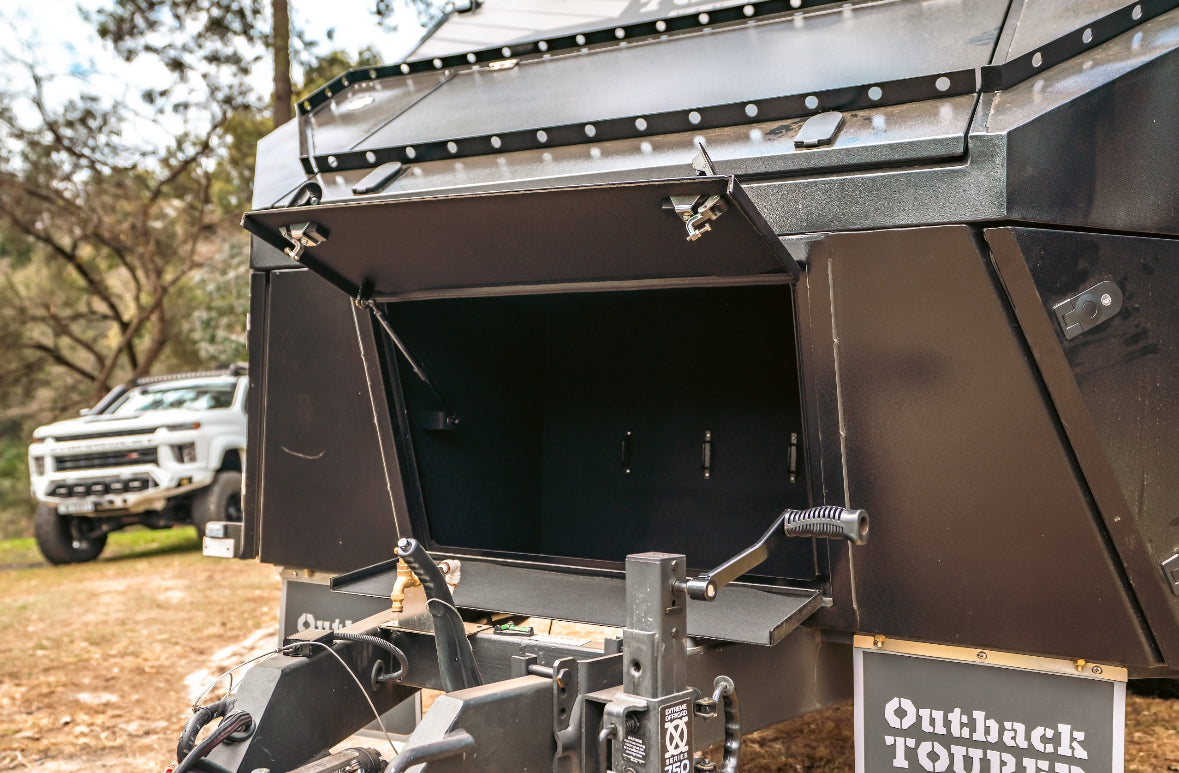

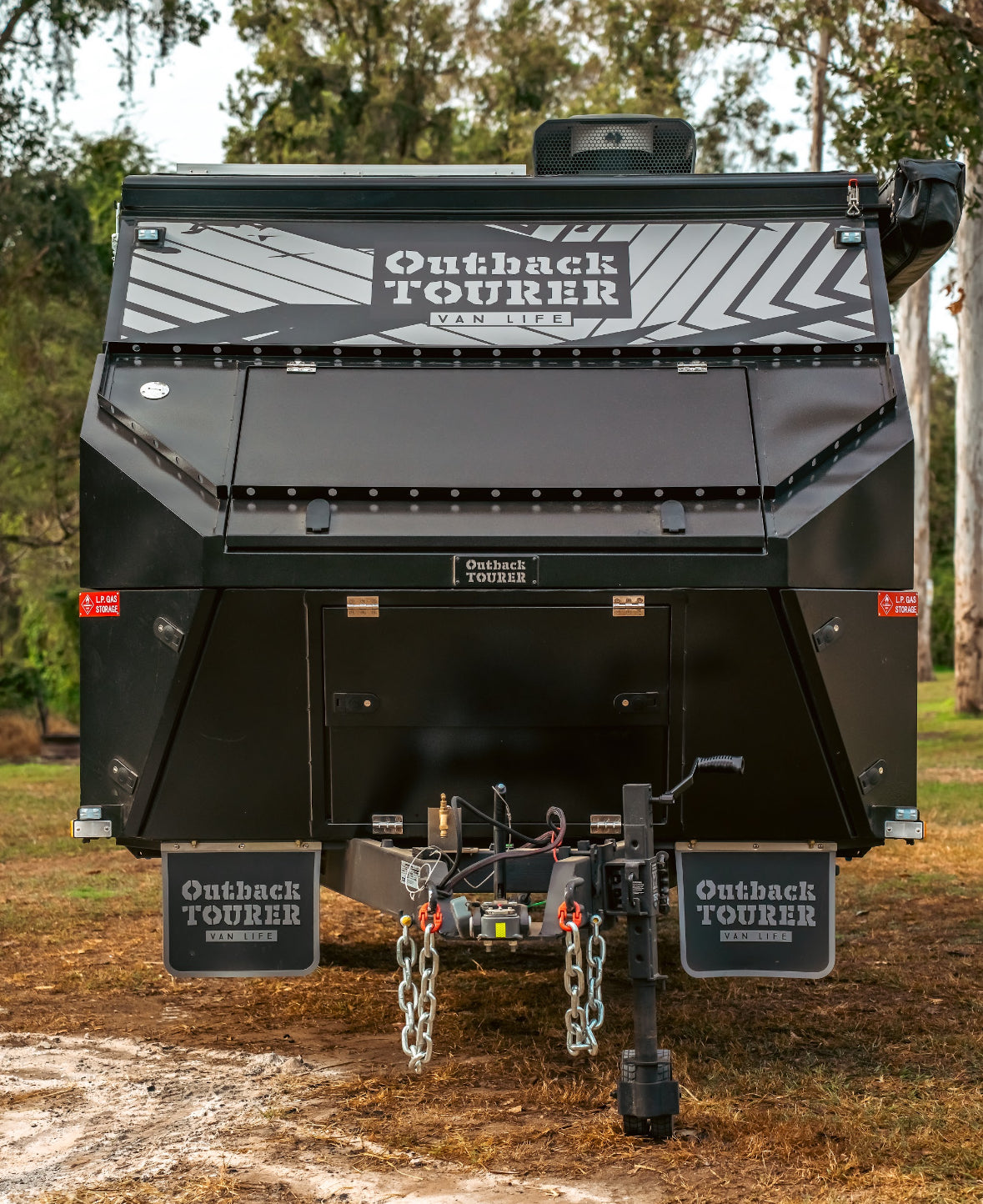

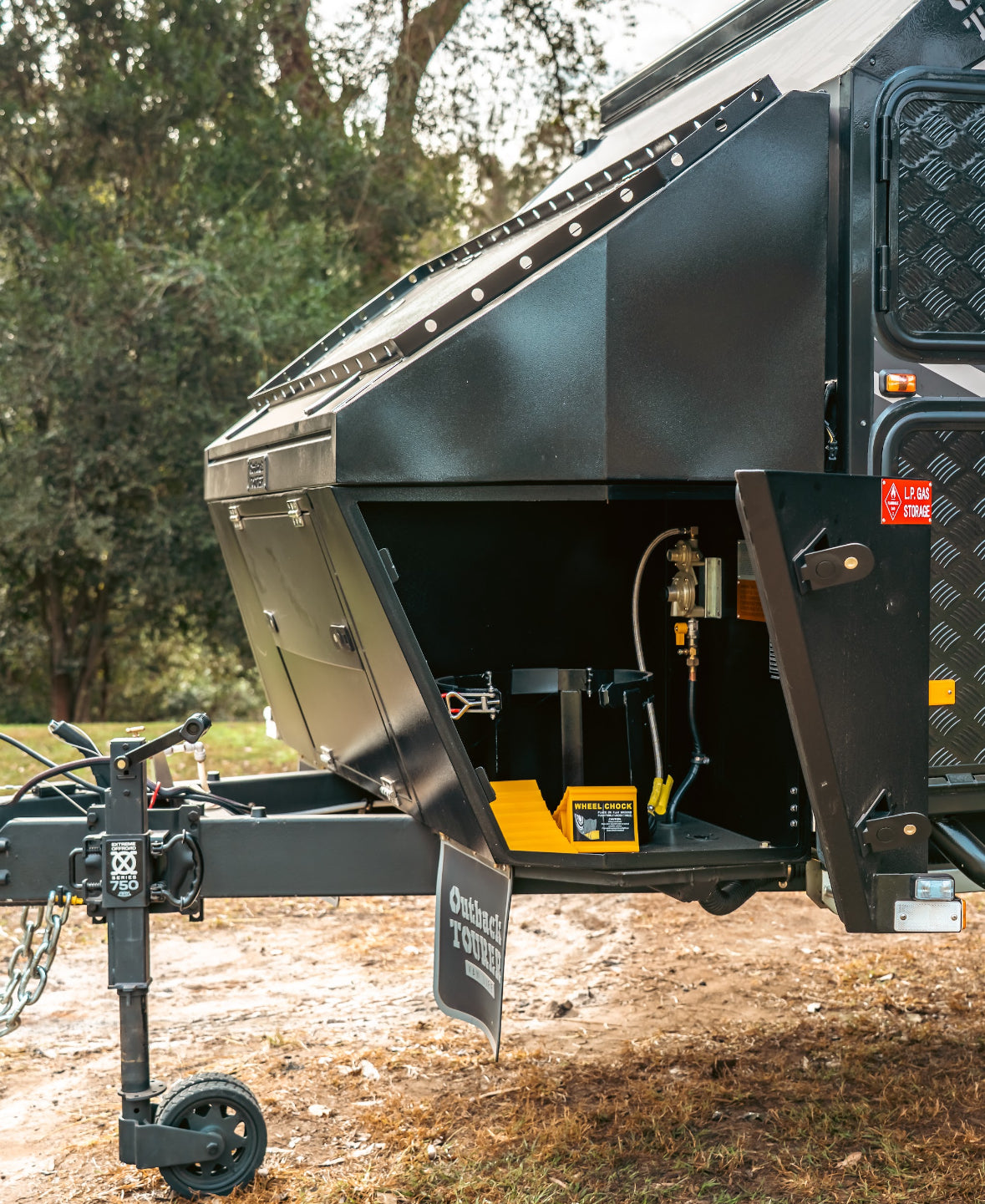

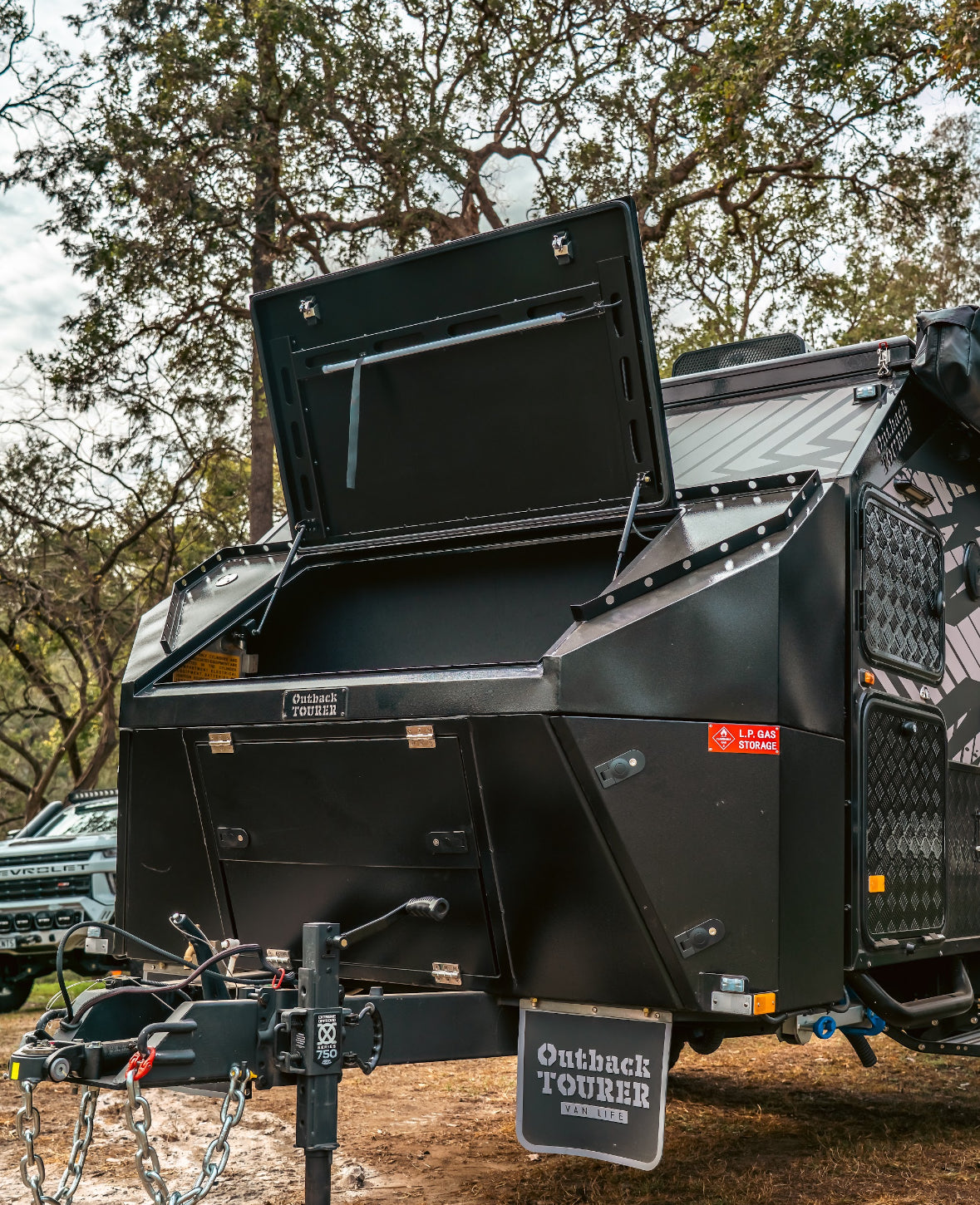

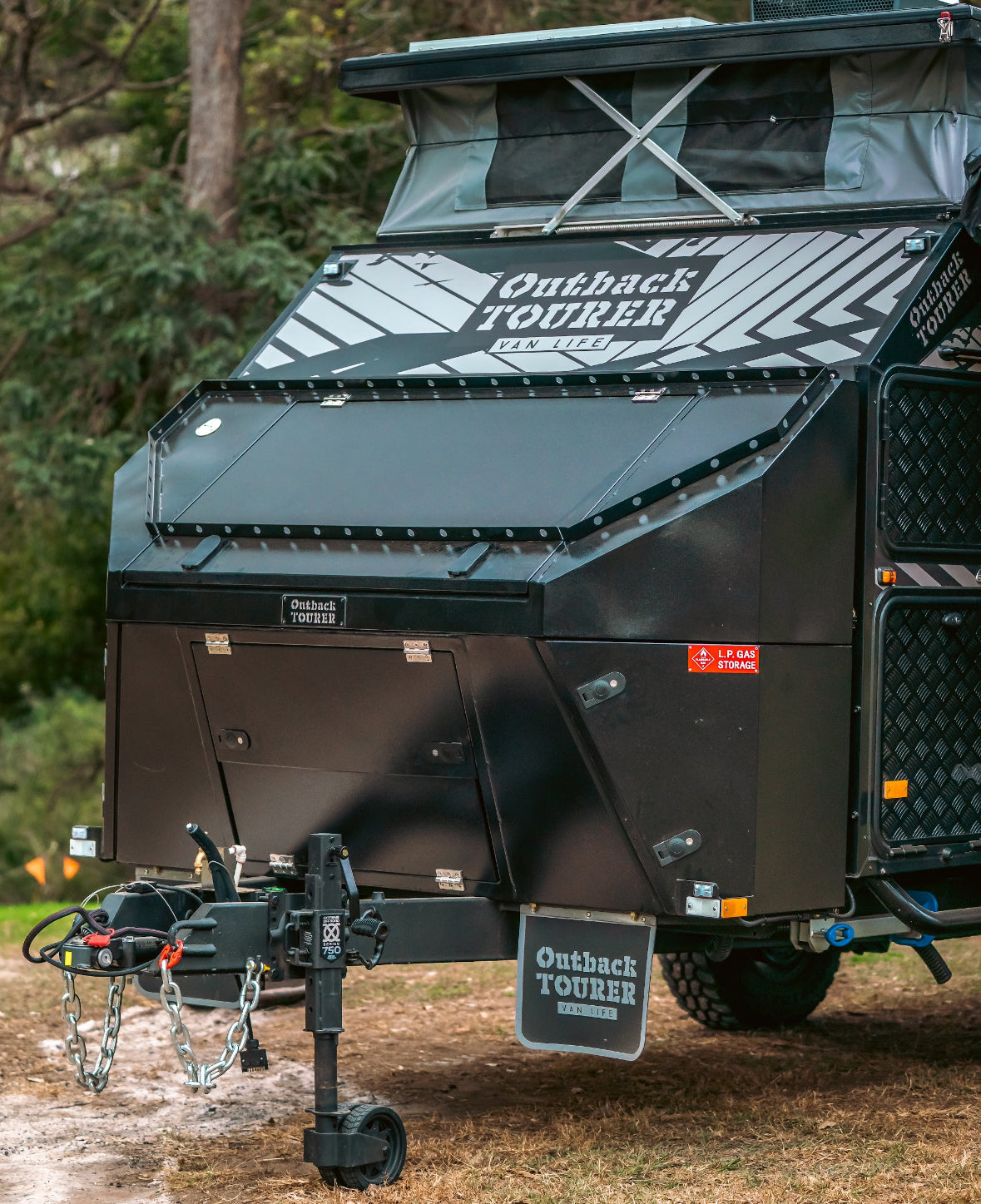

Coupling: Cruisemaster DO35 hitch
Jockey Wheel: ARK 750 off-road dual wheel (750kg rating, 6 adjustable heights)
Chassis: Fully galvanised steel (inside & out)
Brakes: 12” electric off-road drum brakes
Underbody Protection: Protective coating applied
Safety Chains: ADR approved (2x with D shackles)
Shock Absorbers: 4x gas shocks

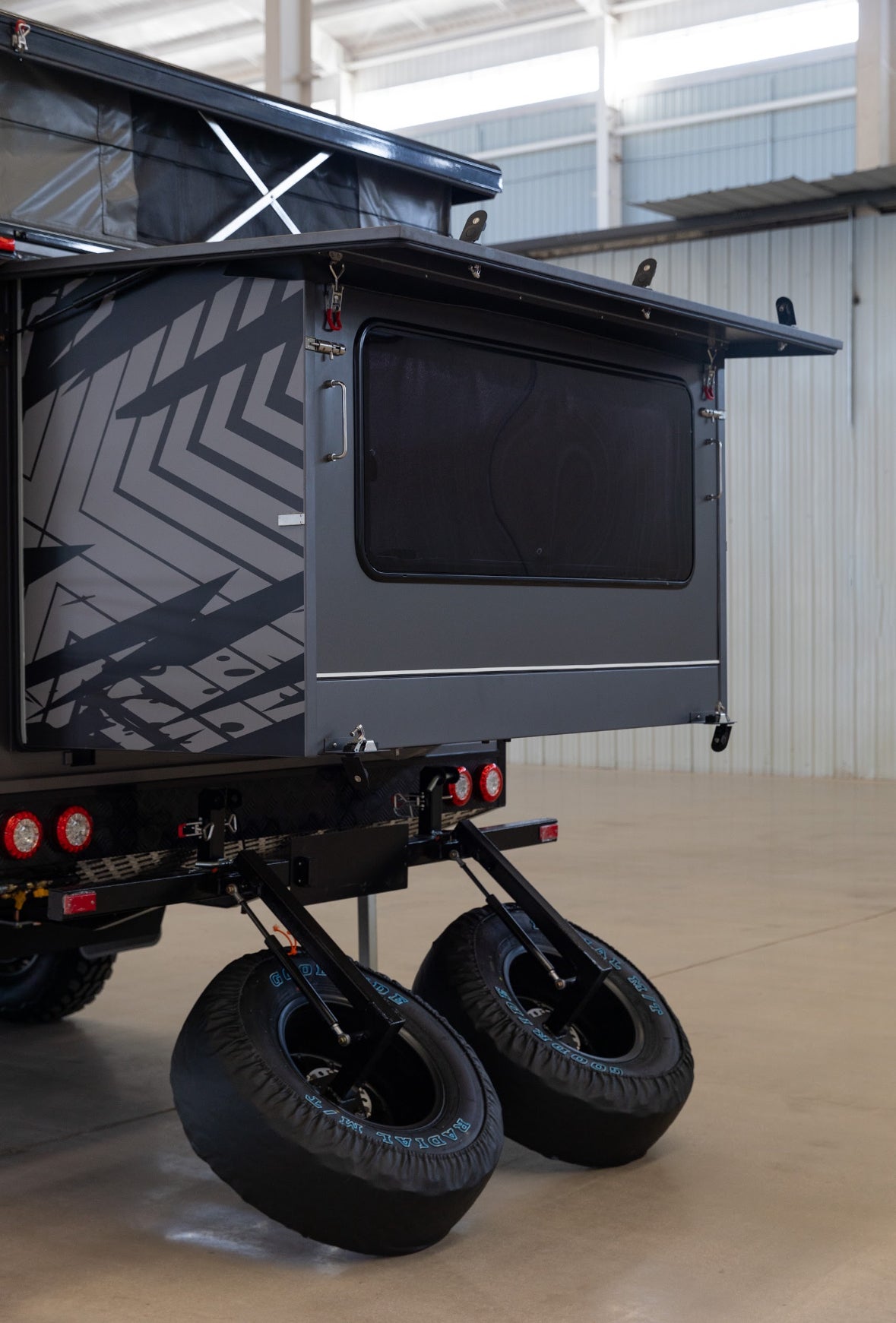

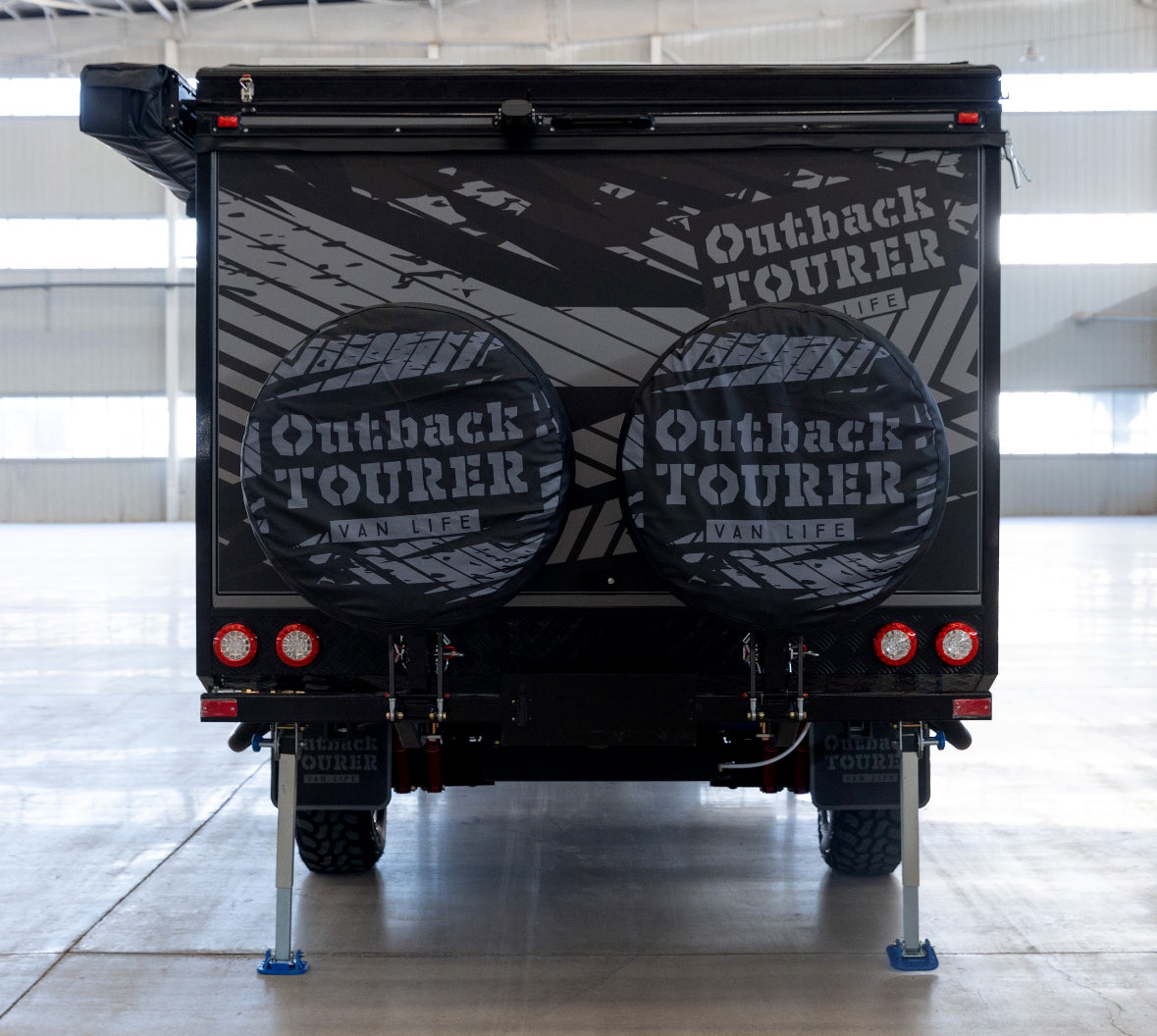

Spare Wheels: 2x full-size

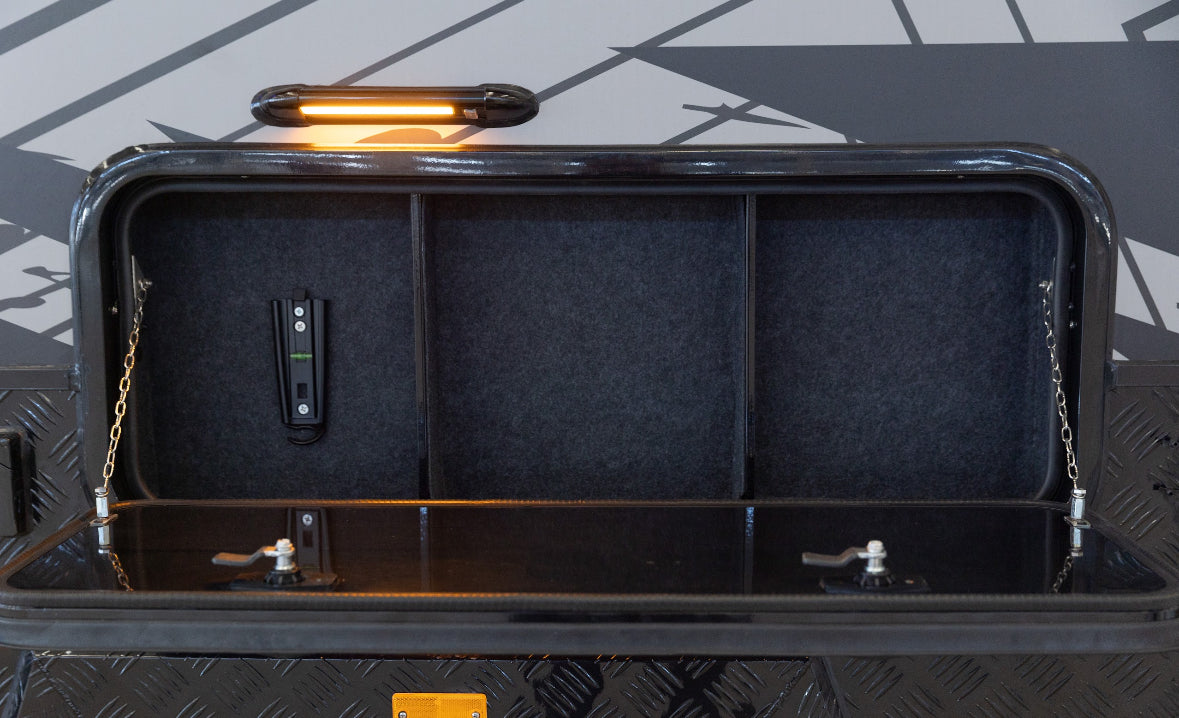

Jerry Can Holders: Includes integrated tie-down points

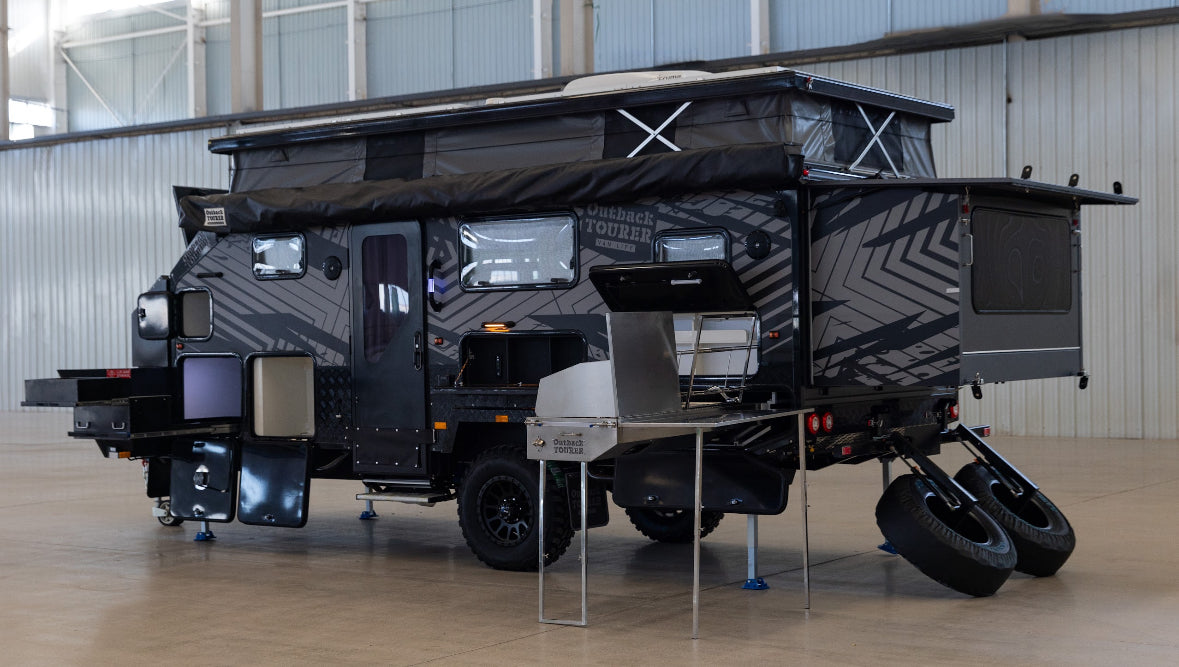

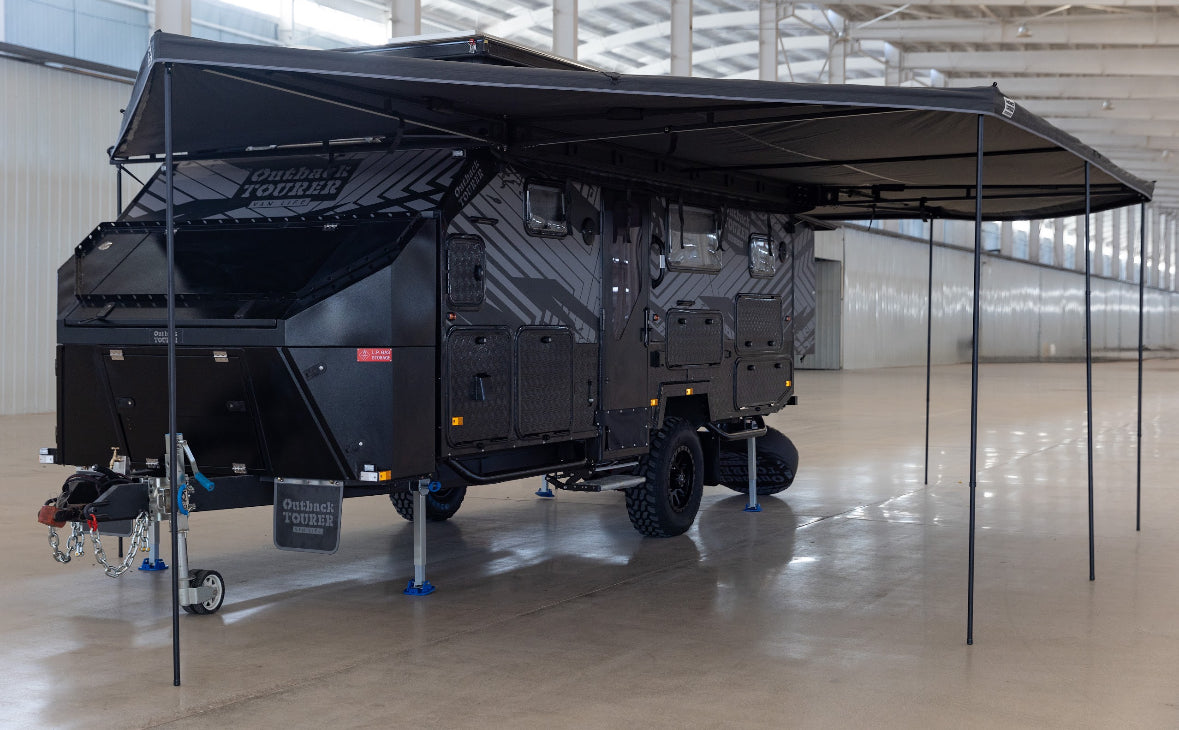

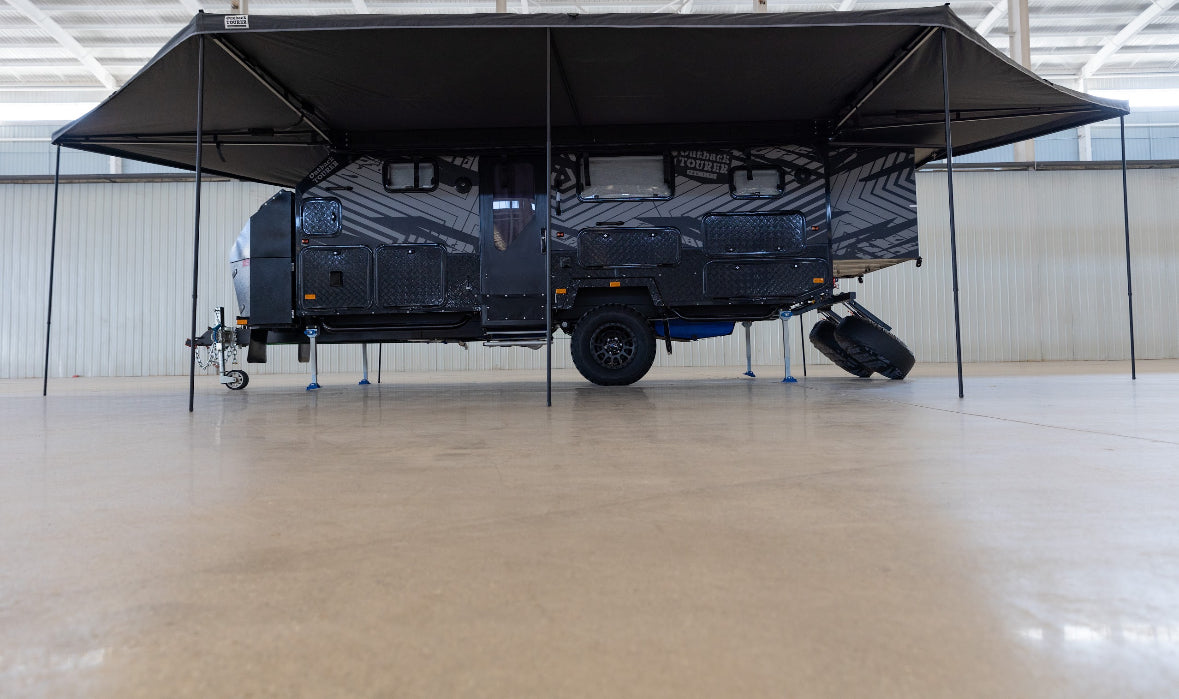

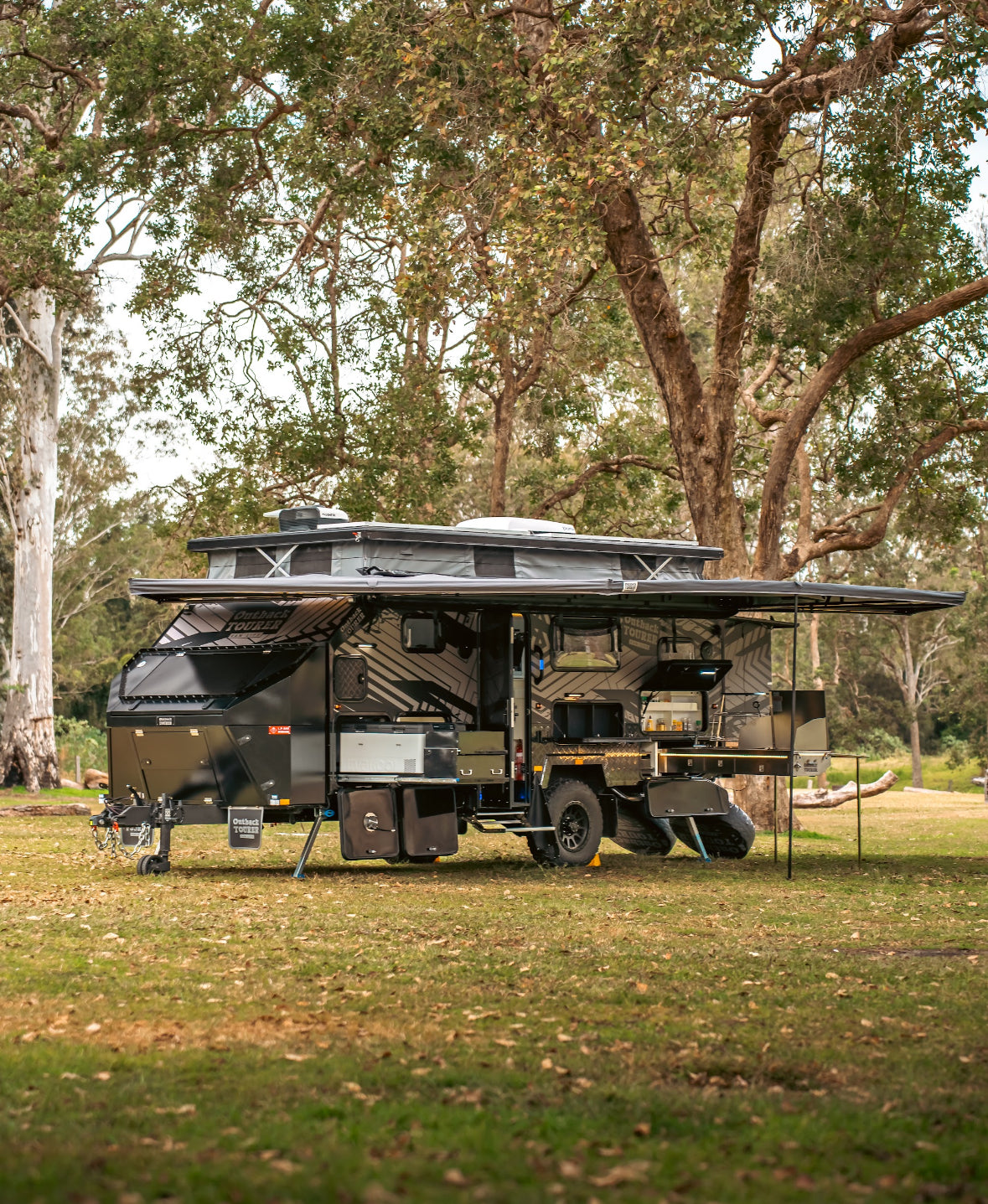

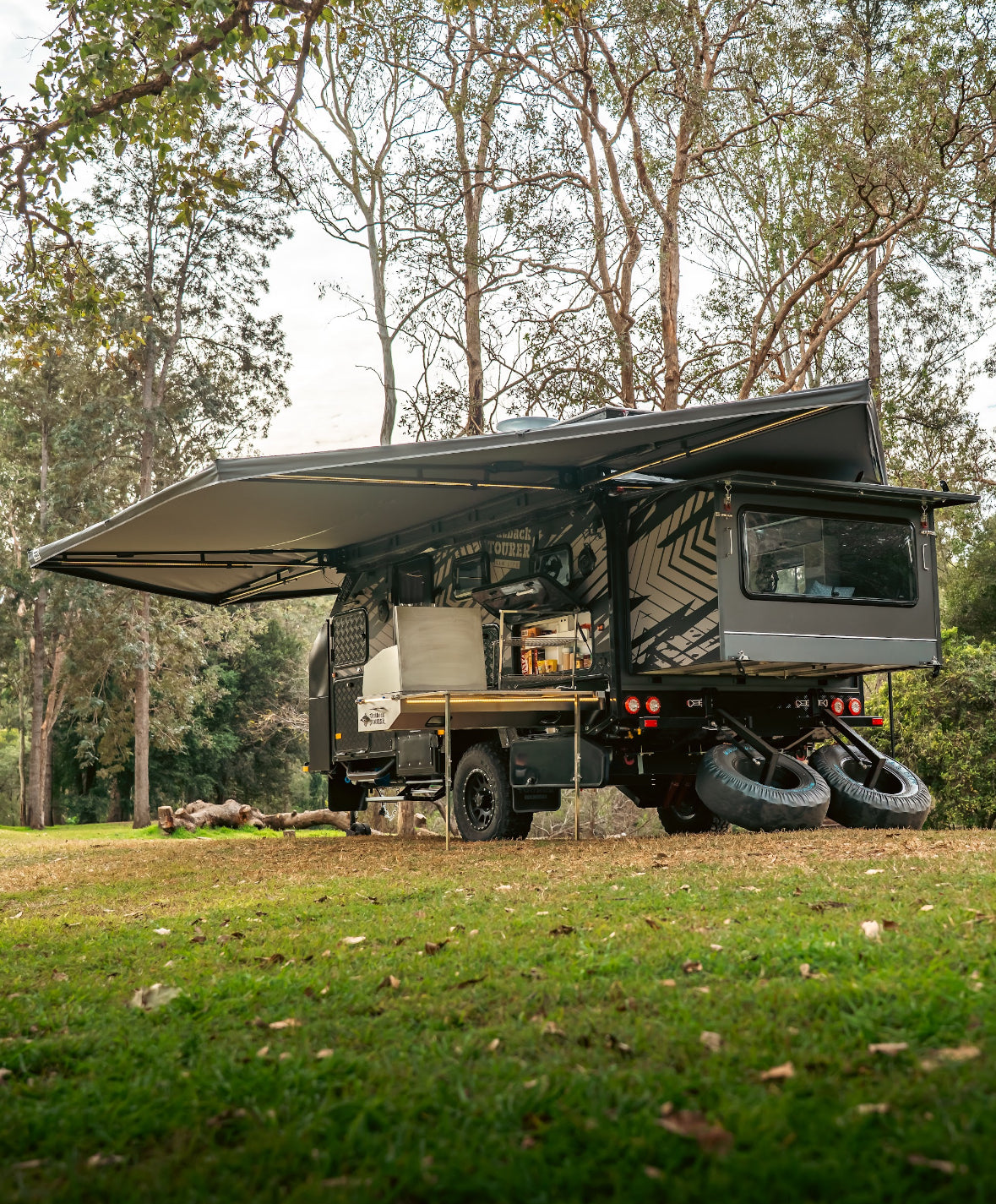

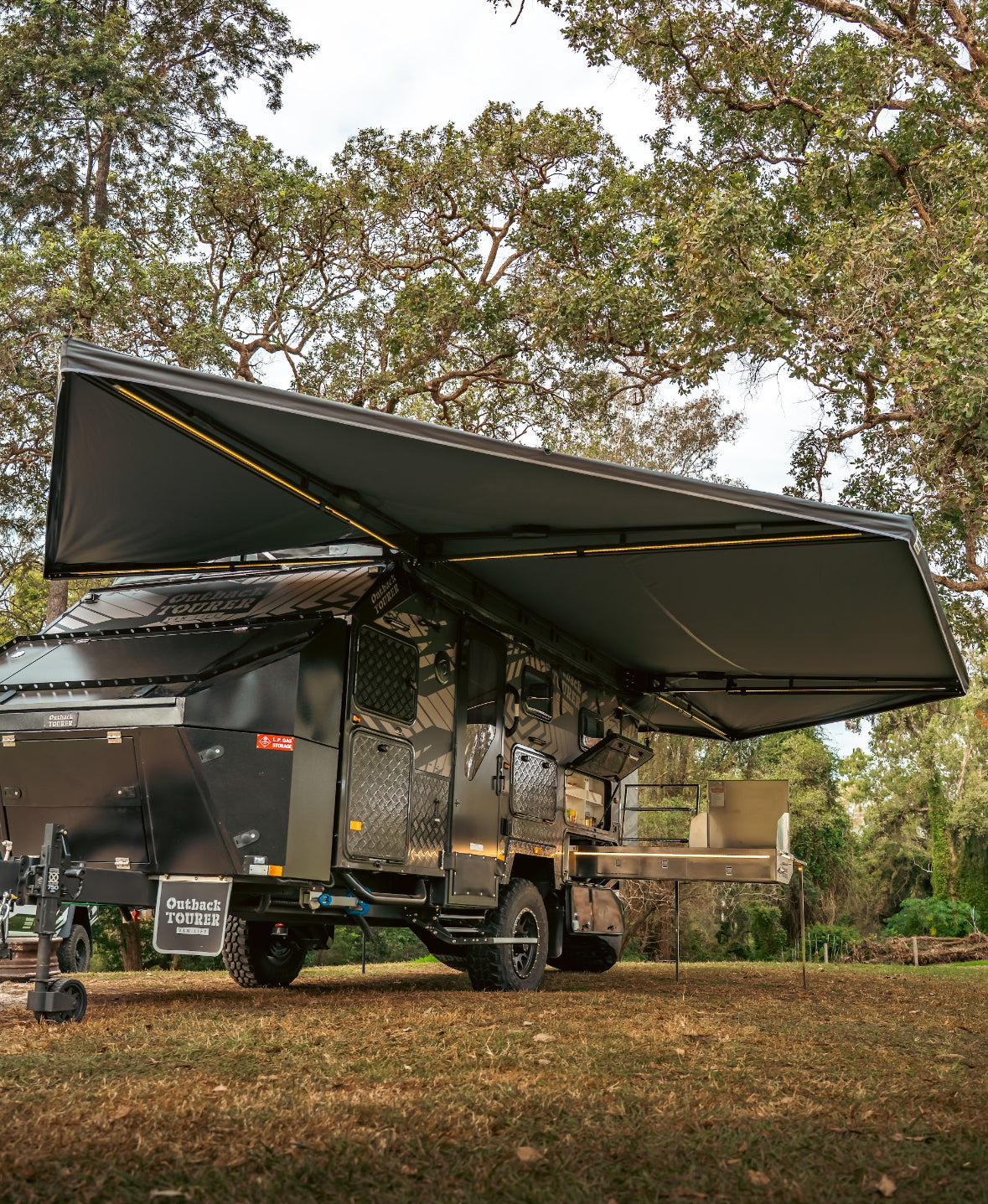

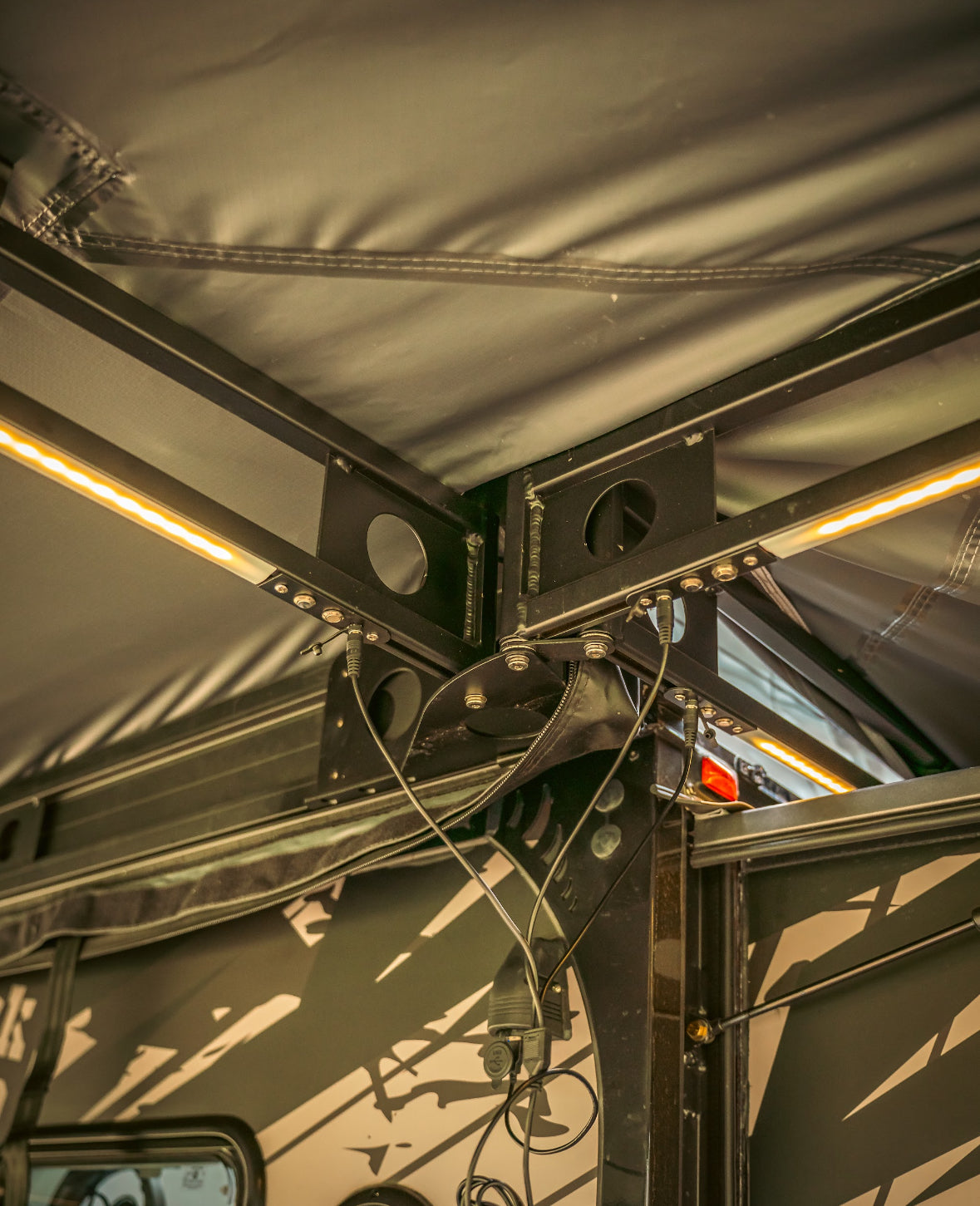

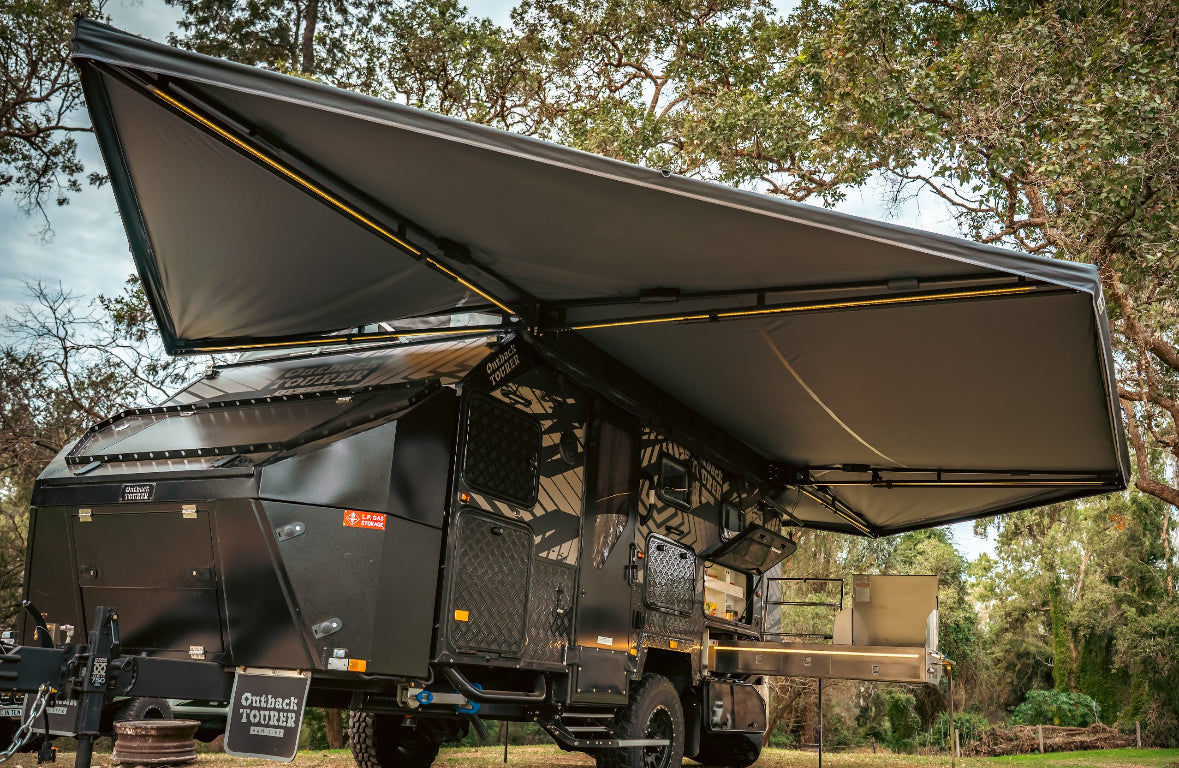

Awning: Outback Tourer 360° awning
Breakaway System: Included
Suspension: Australian-designed adjustable independent trailing arm
Wheels: 16” alloy (6 stud)
Tyres: 265/75/R16 radial MT / AT
Stabiliser Legs: 4x heavy-duty adjustable drop-down legs with winder

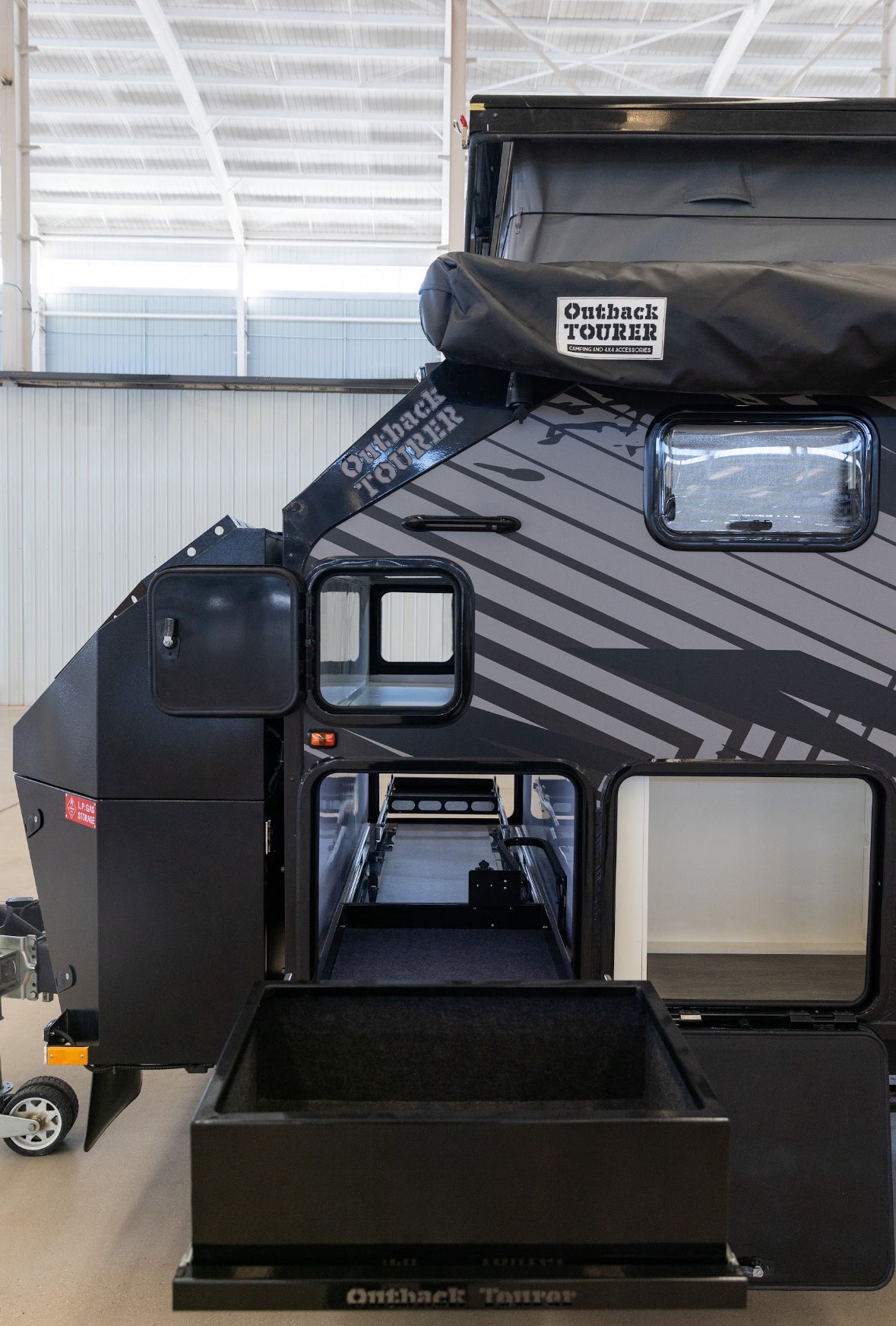

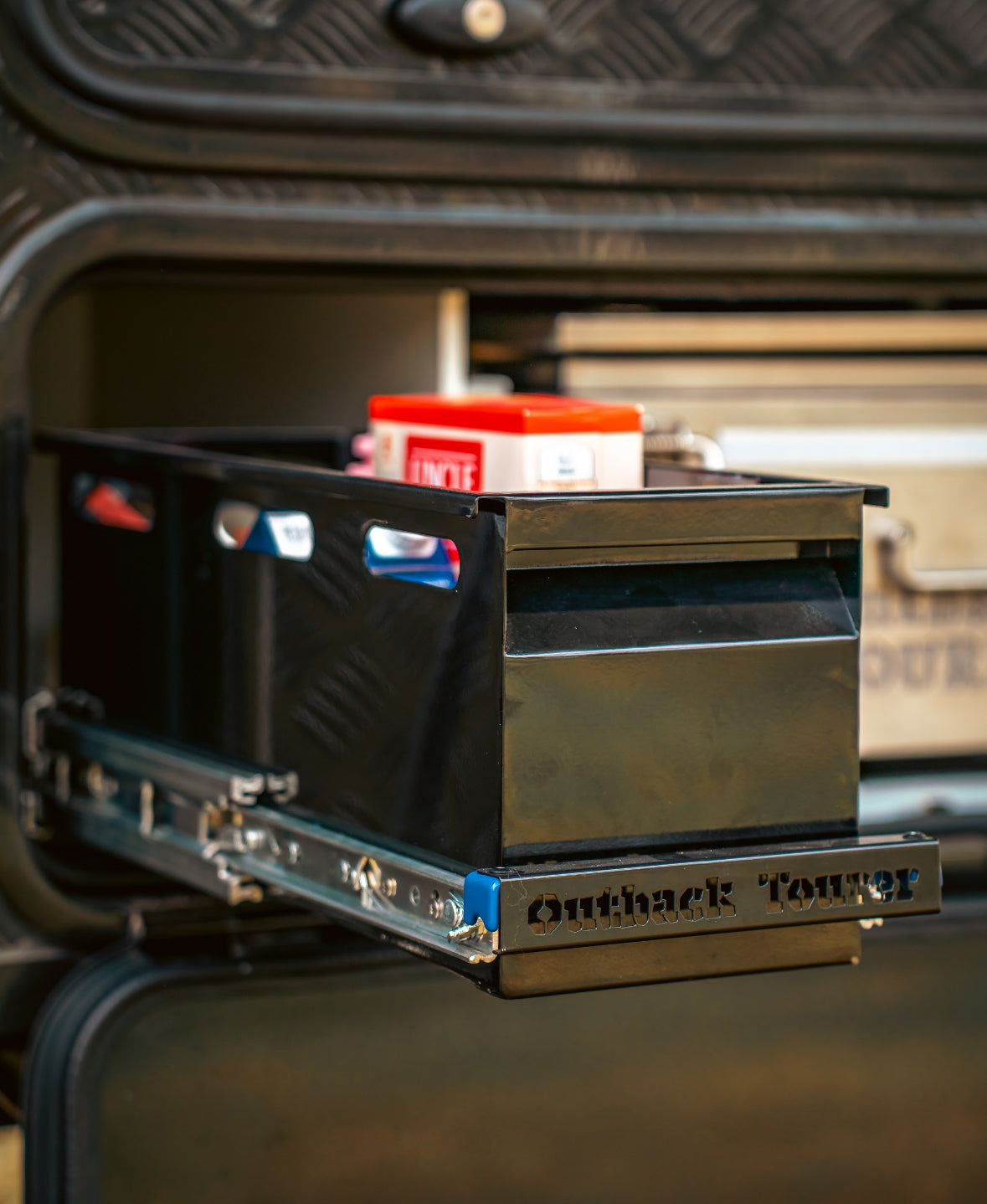

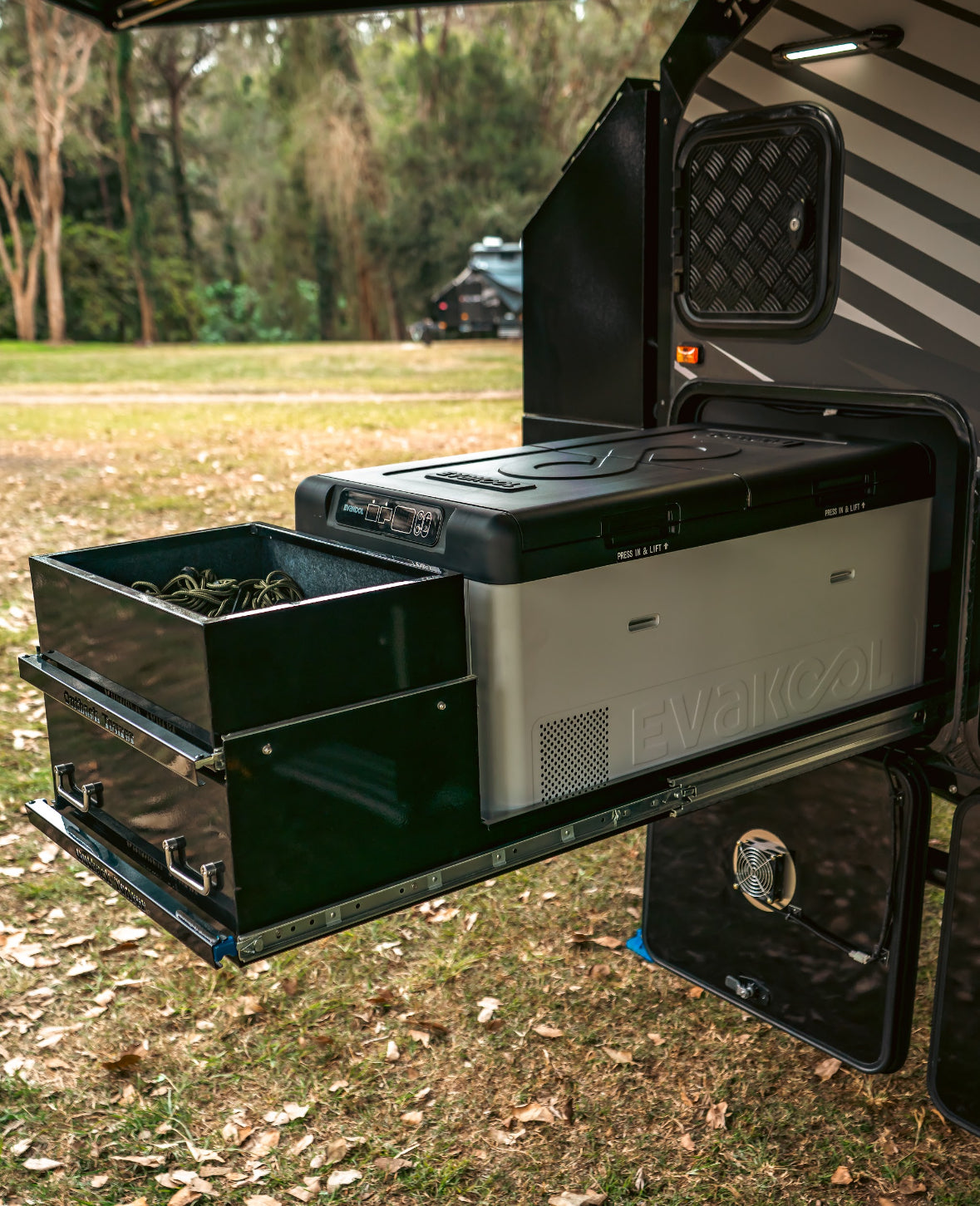

Fridge Slide: Integrated fan
Rear View Camera: Australian-supplied wireless system
Front water tank: 120L poly with bash plate
Rear water tank: 120L poly with bash plate
Grey water tank: 80L poly with bash plate
Mains water inlet
Dometic dust reduction system

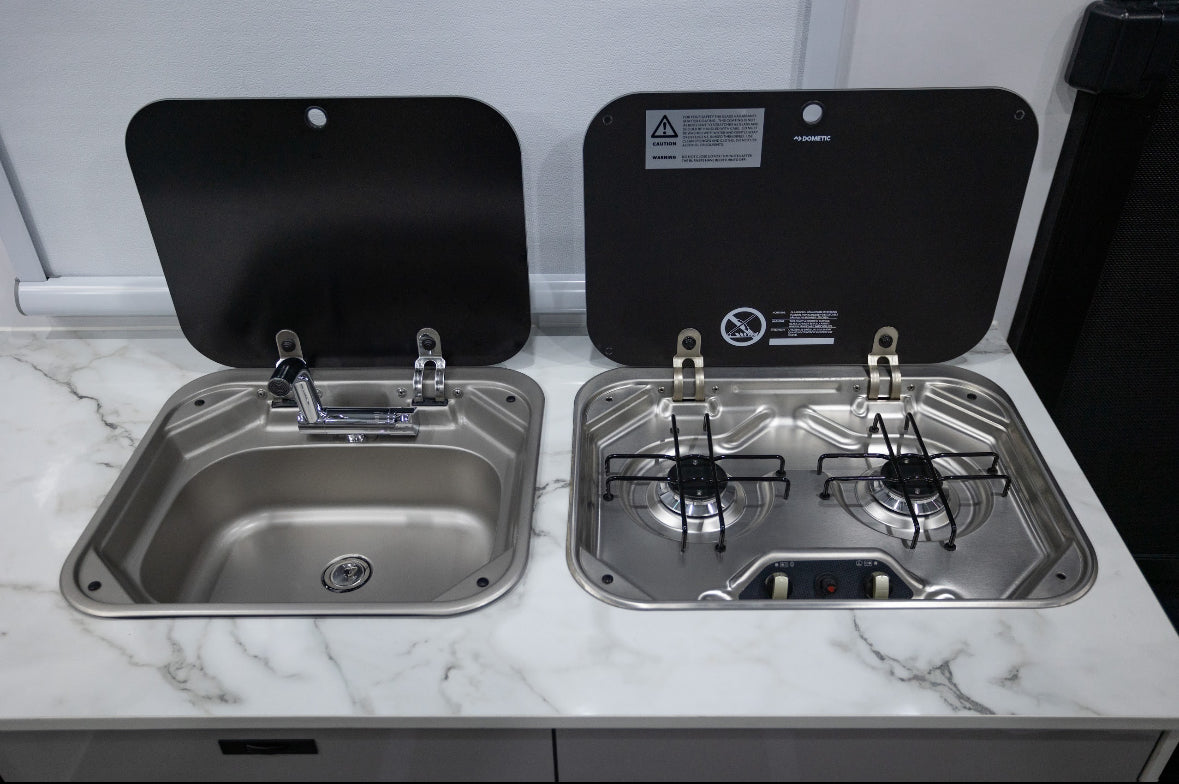

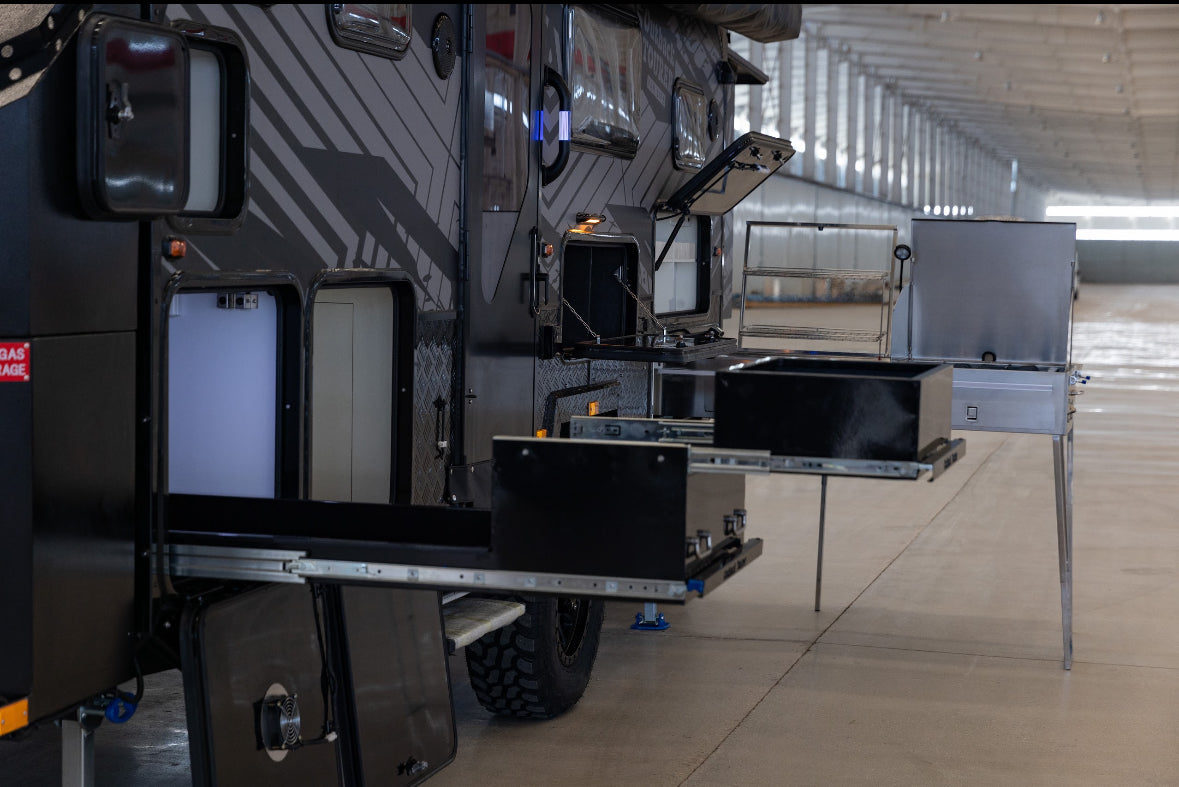

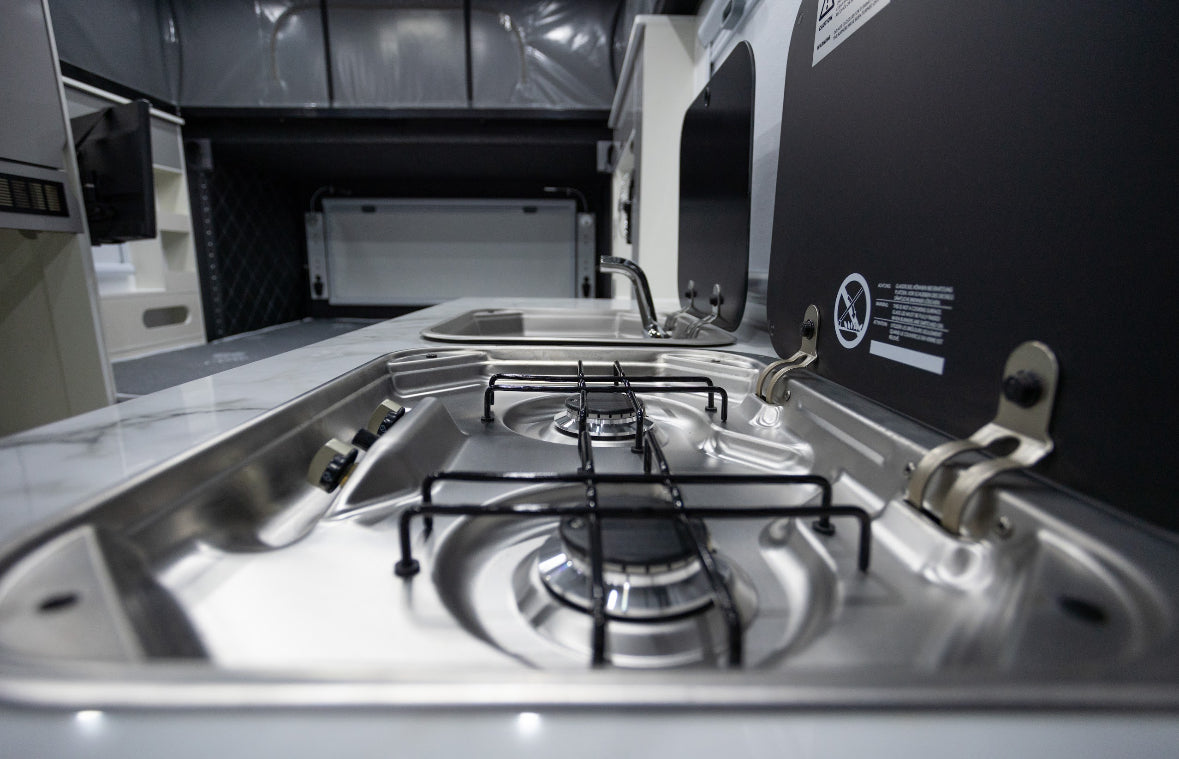

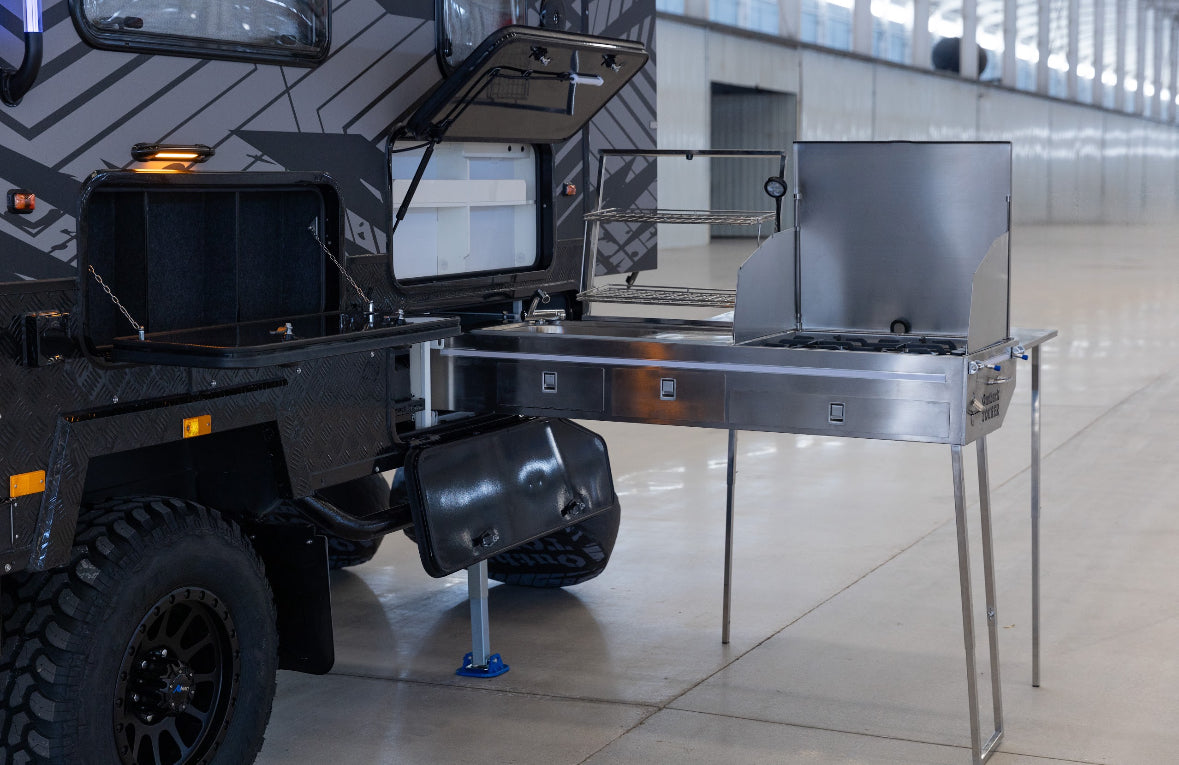

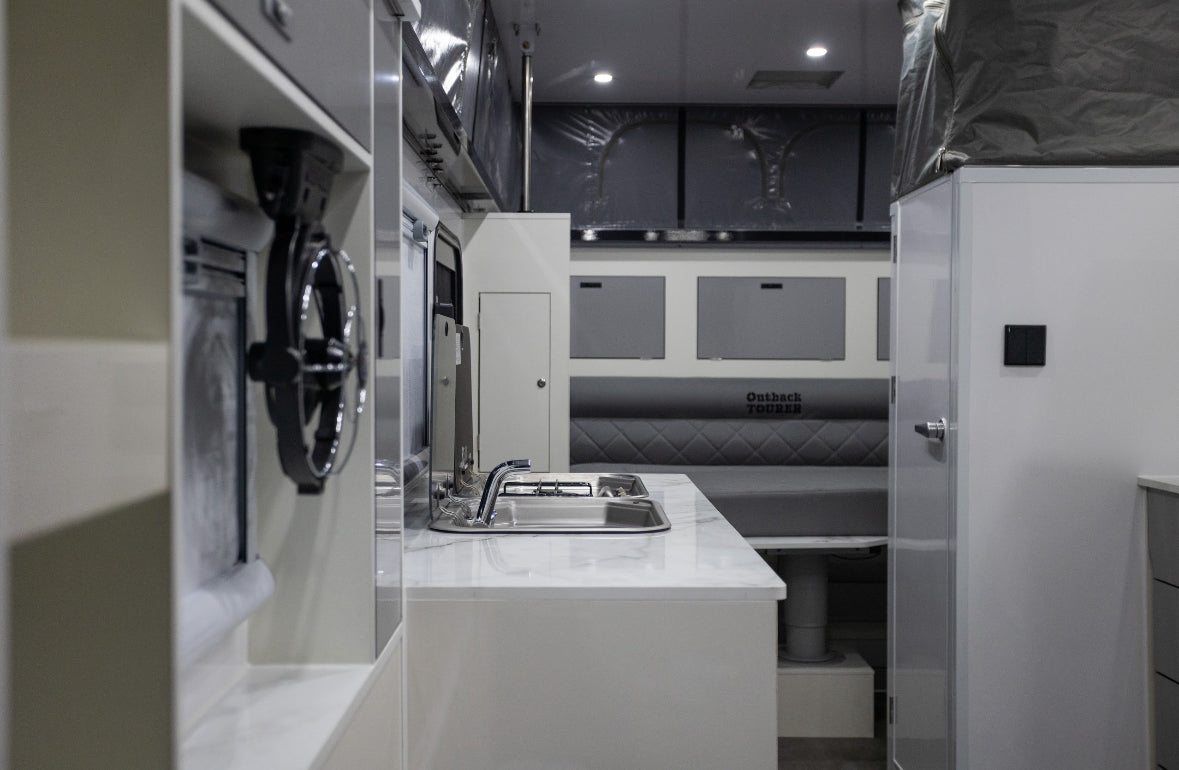

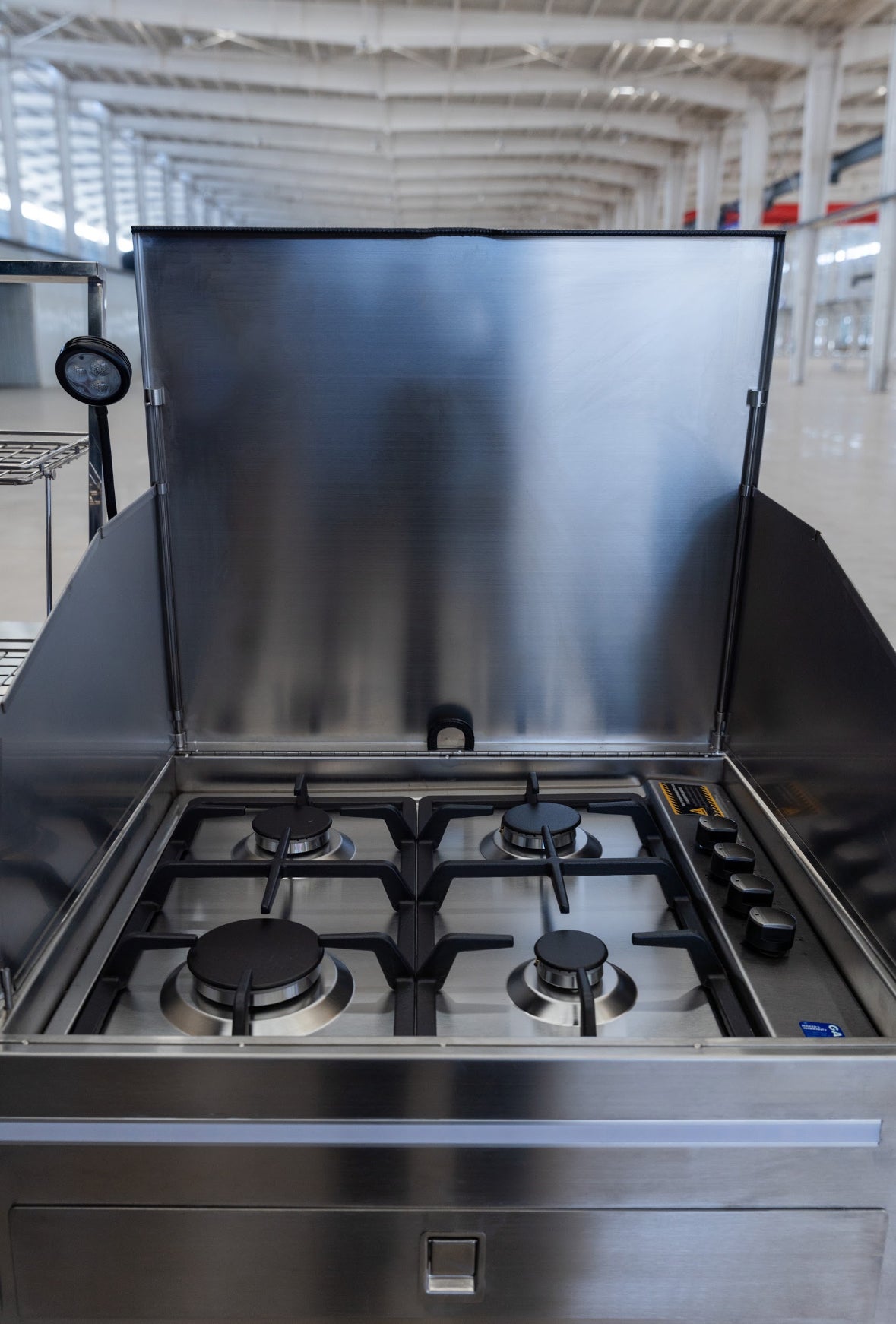

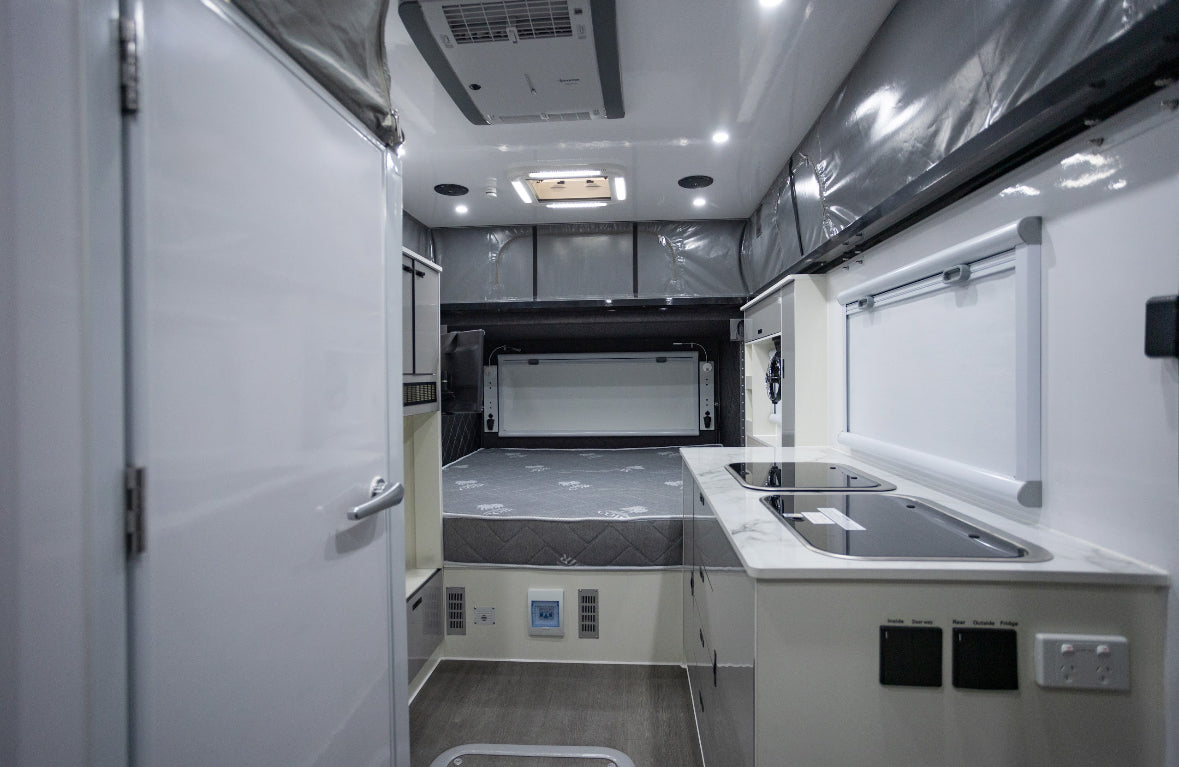

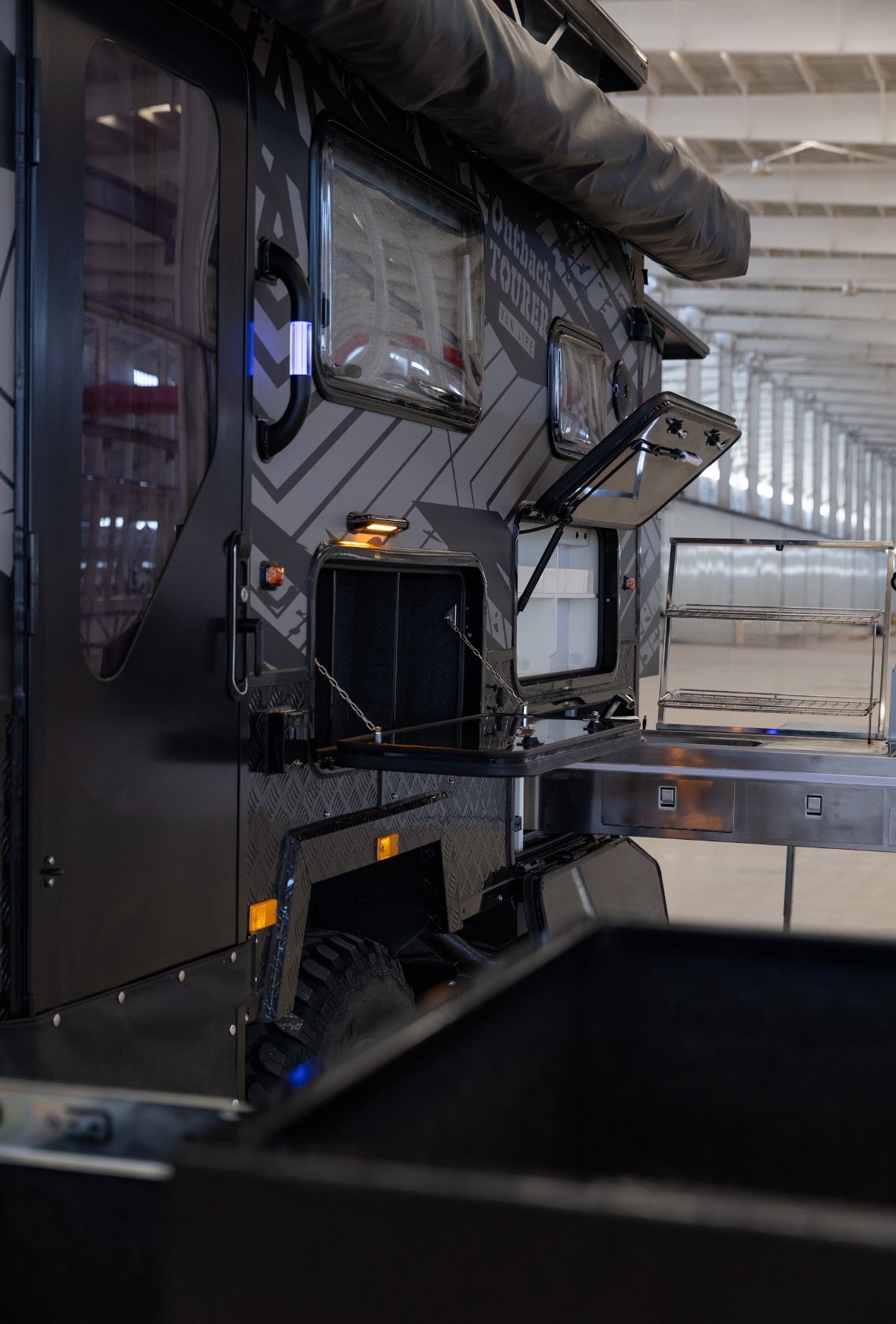

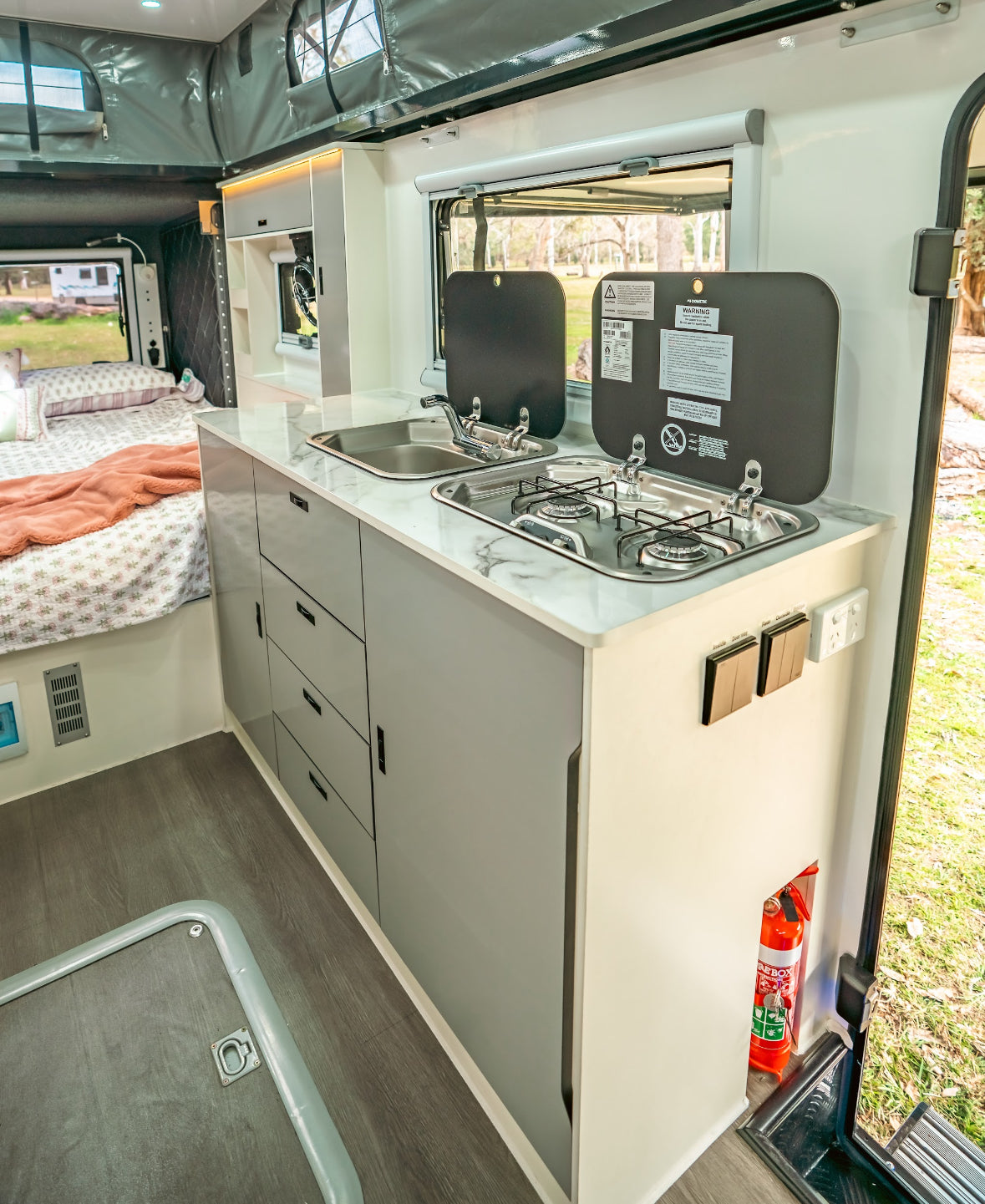

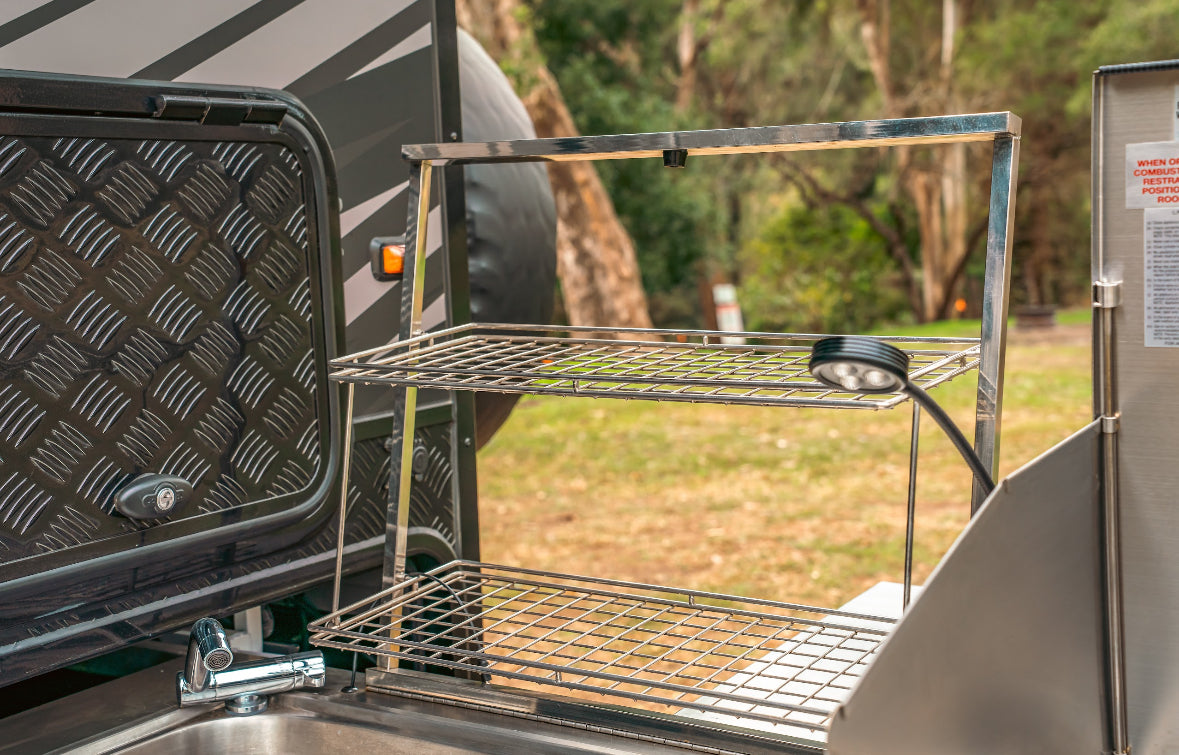

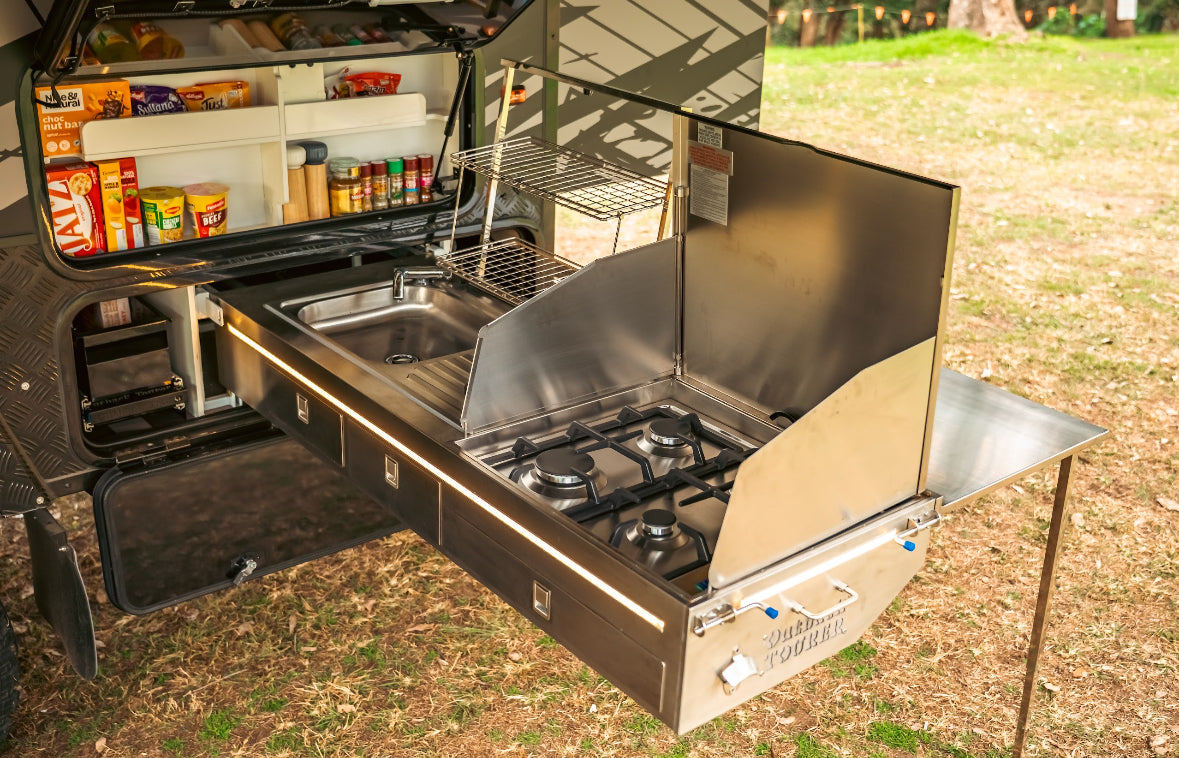

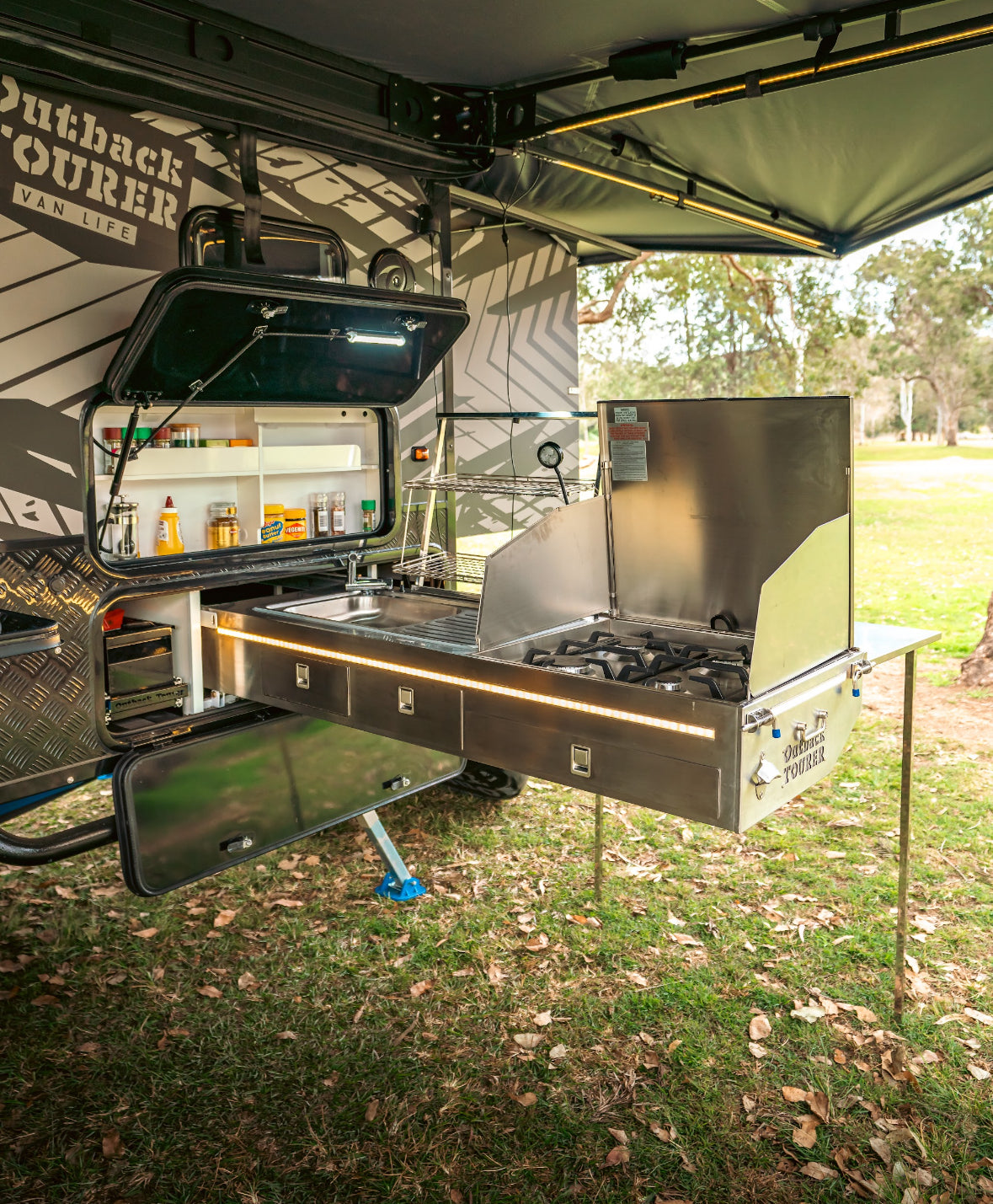

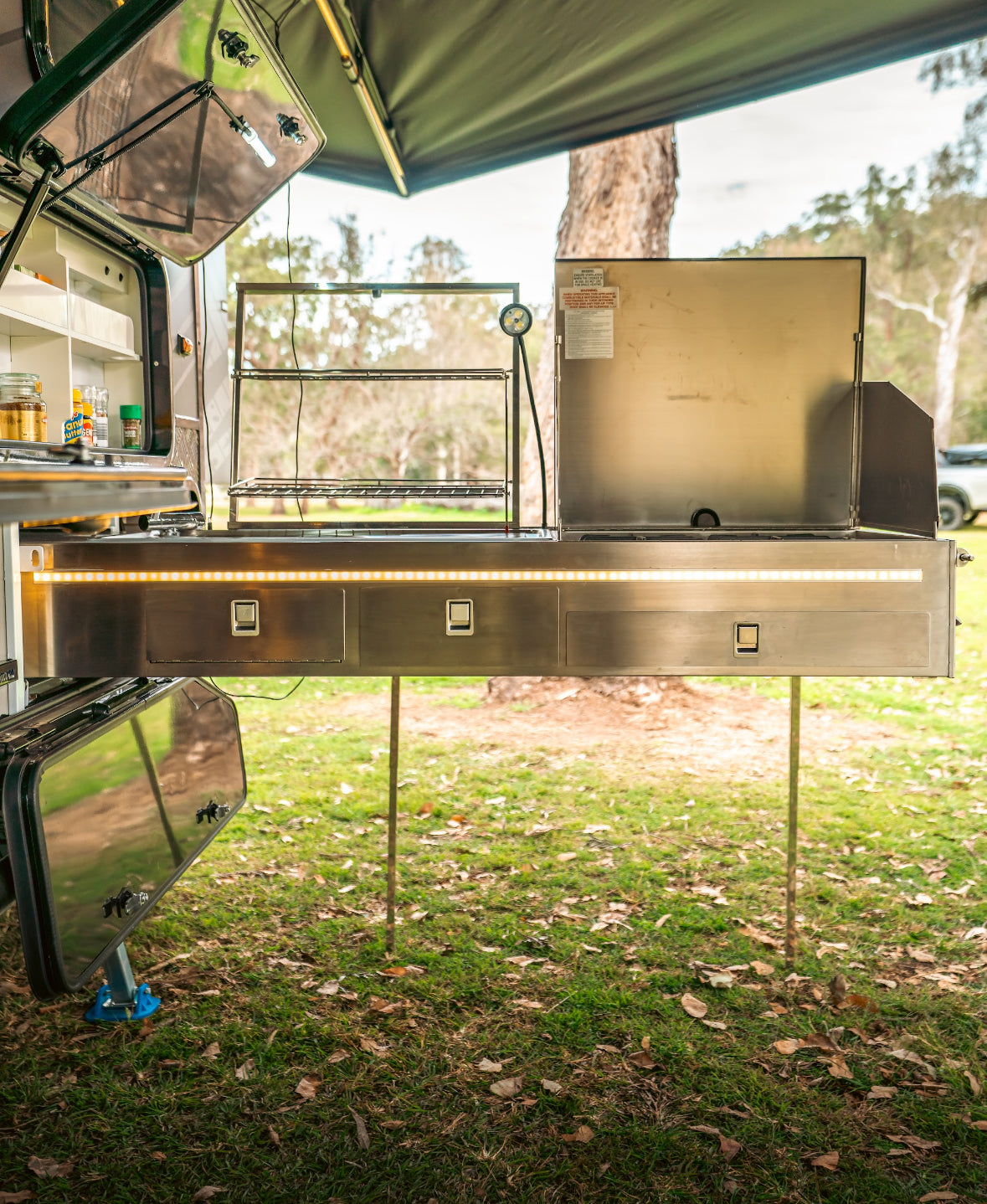

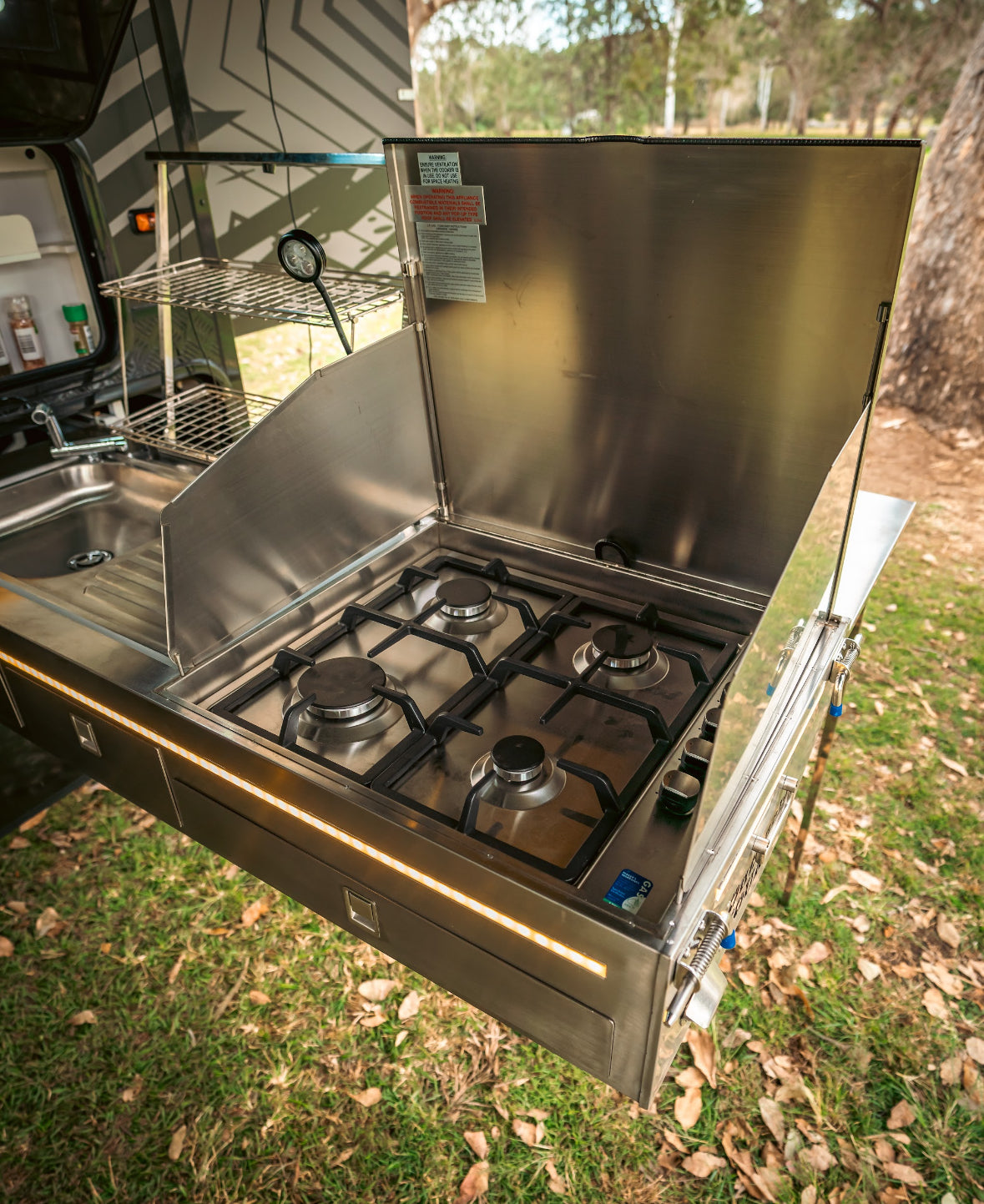

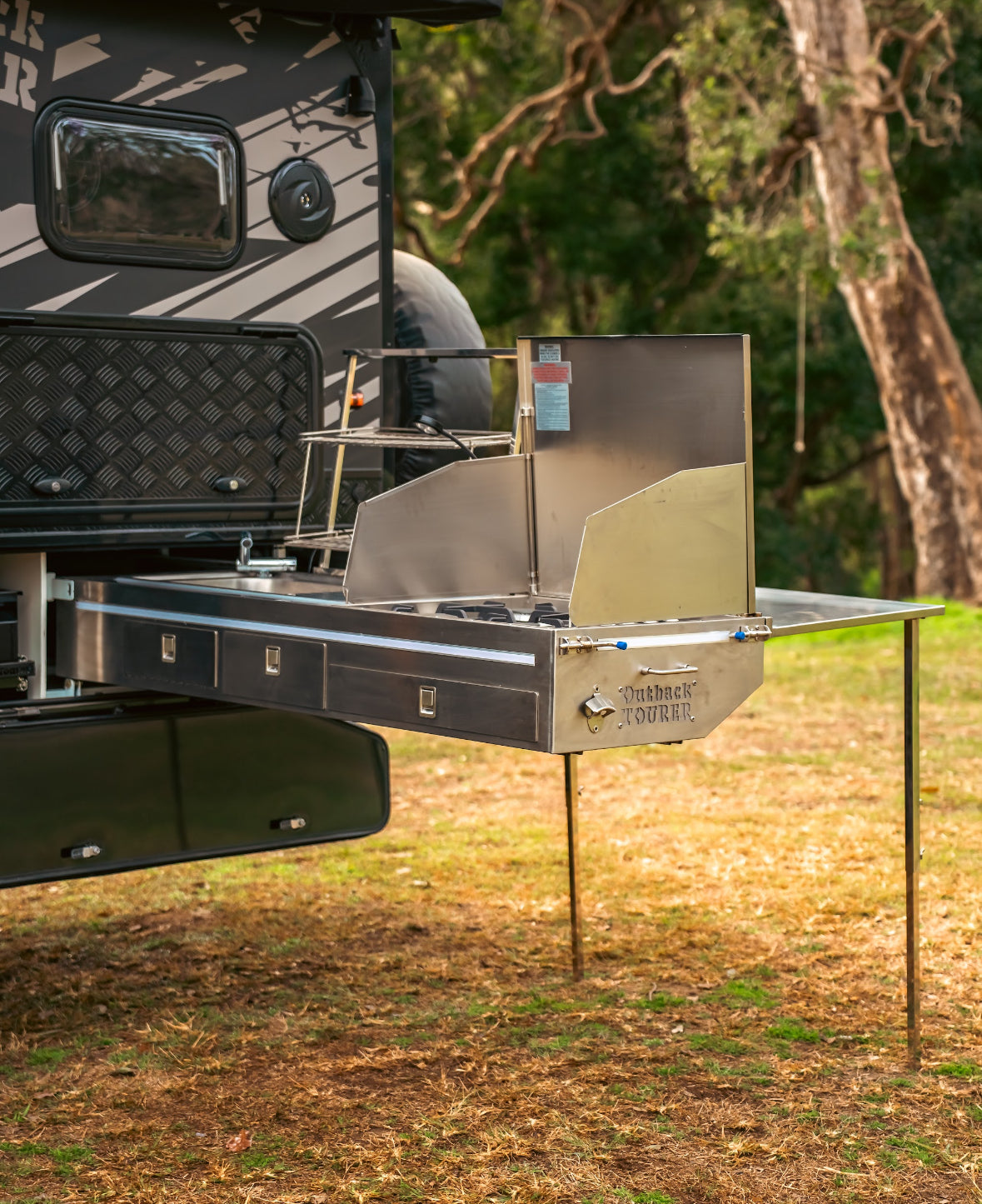

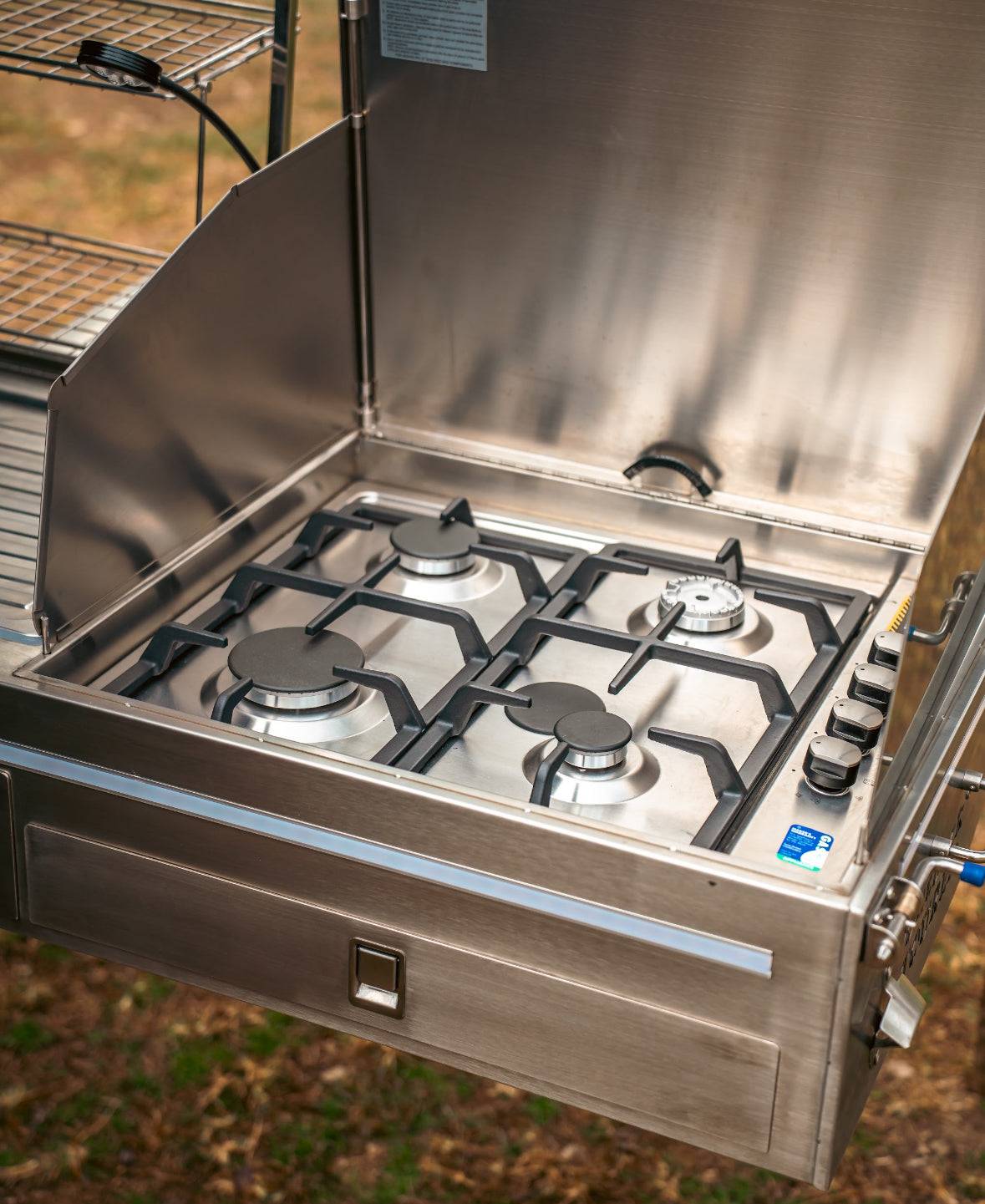

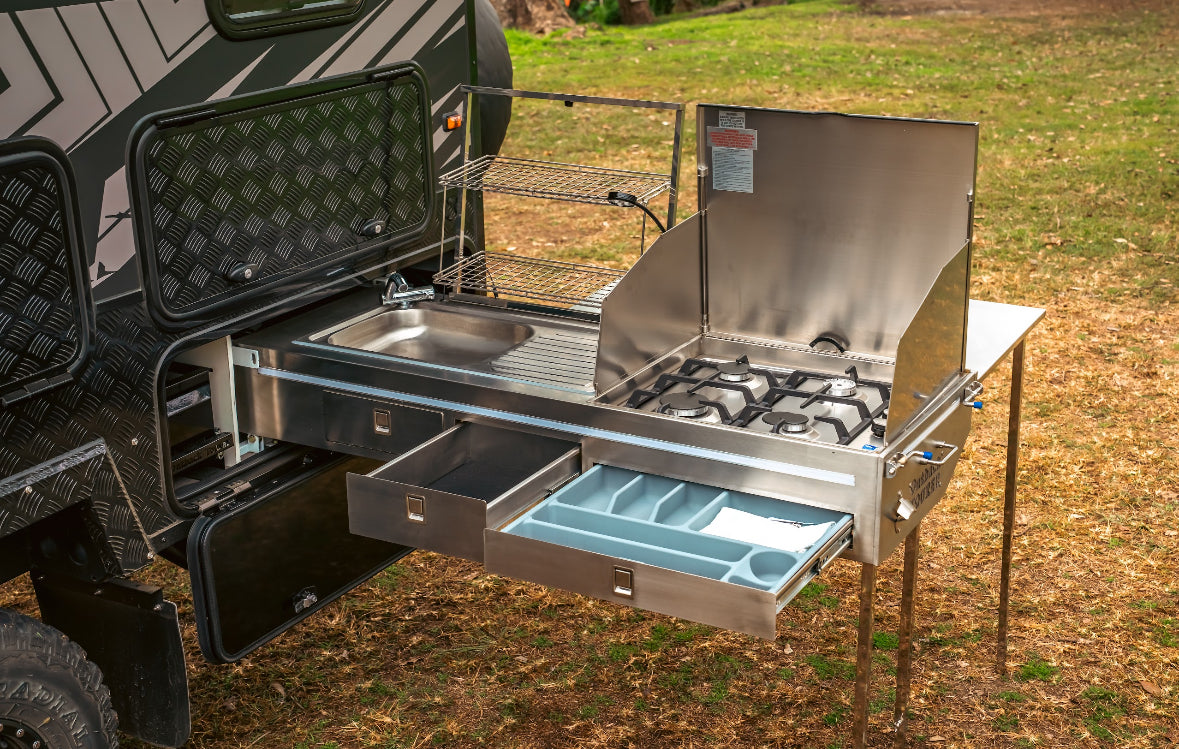

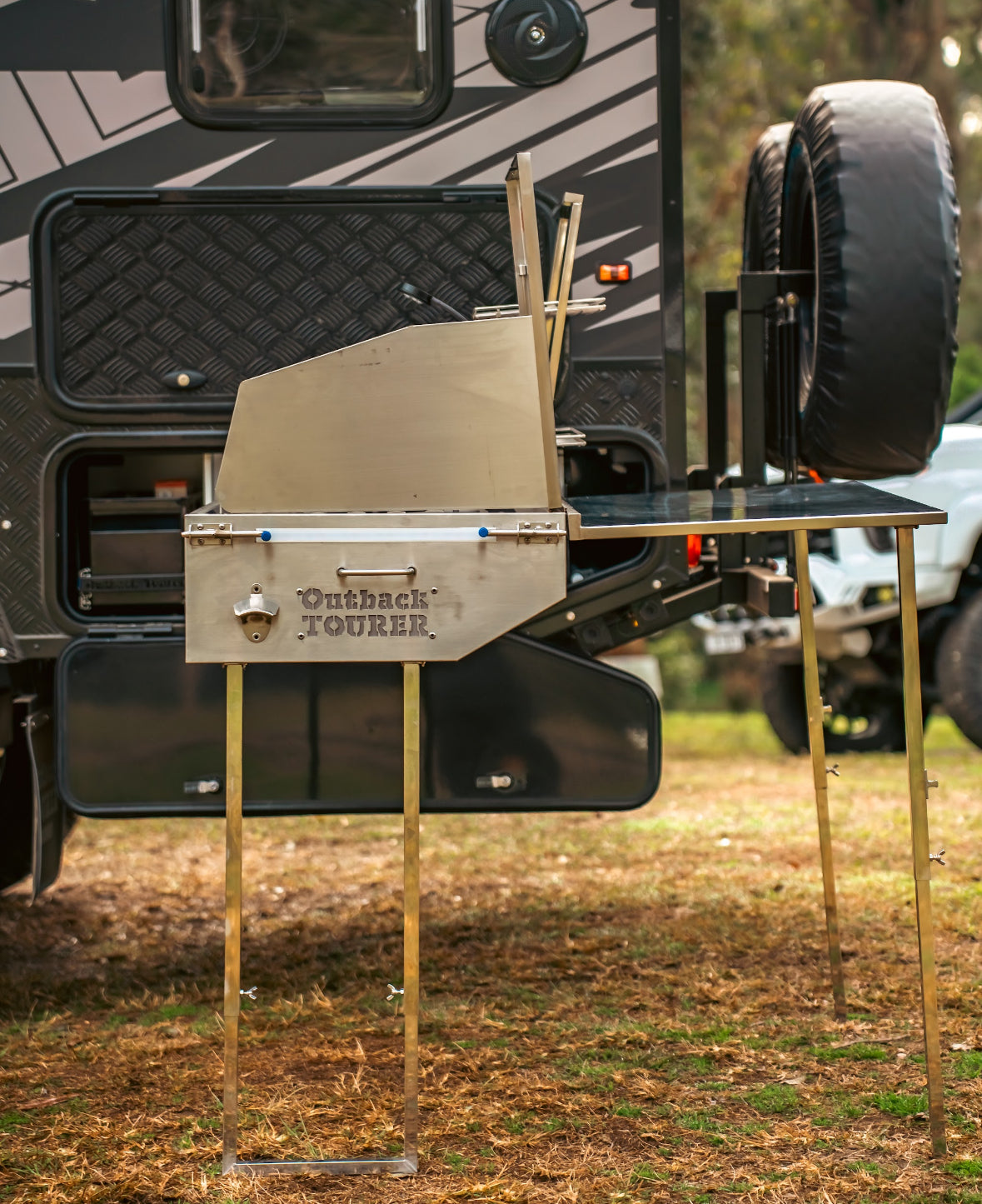

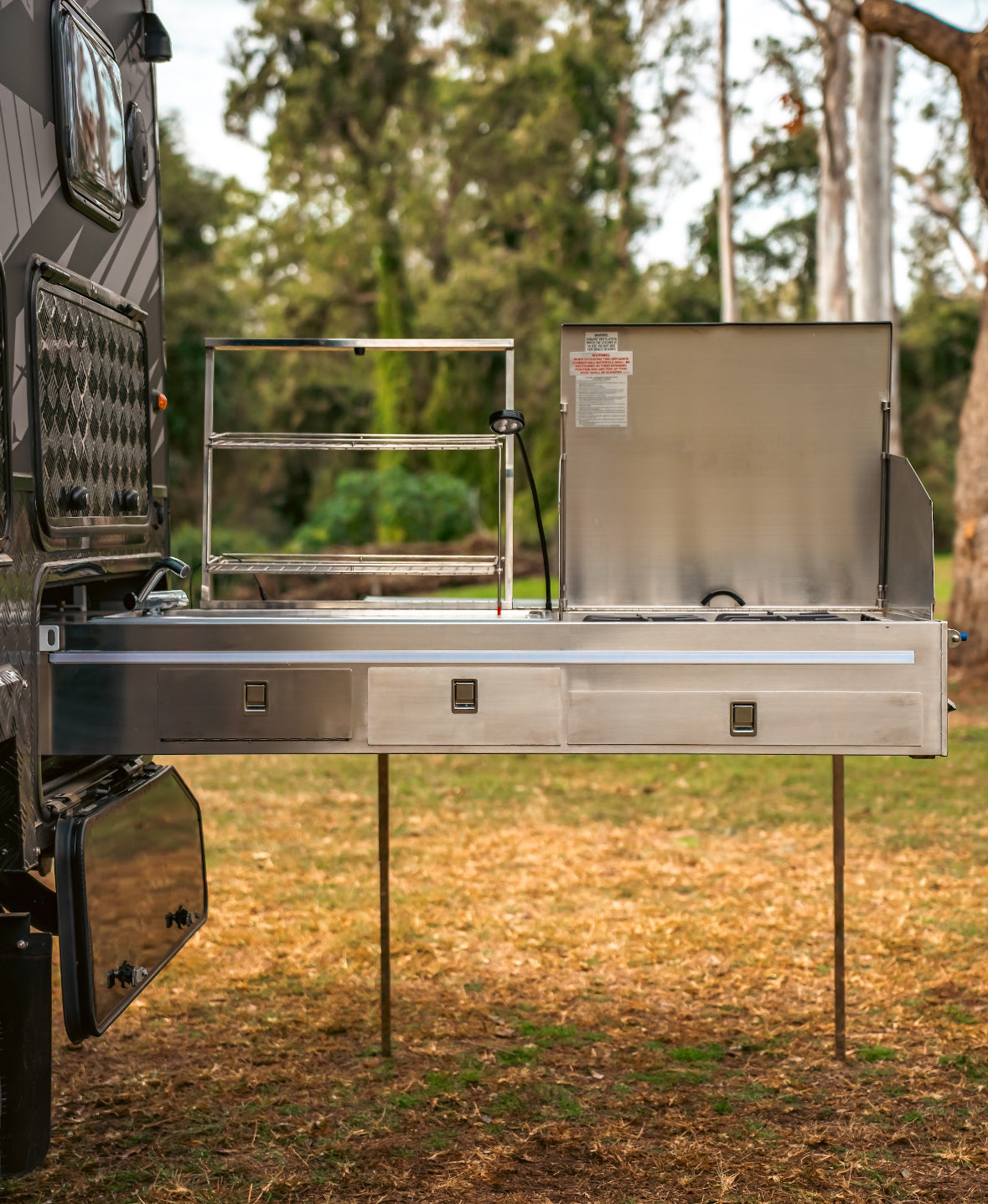

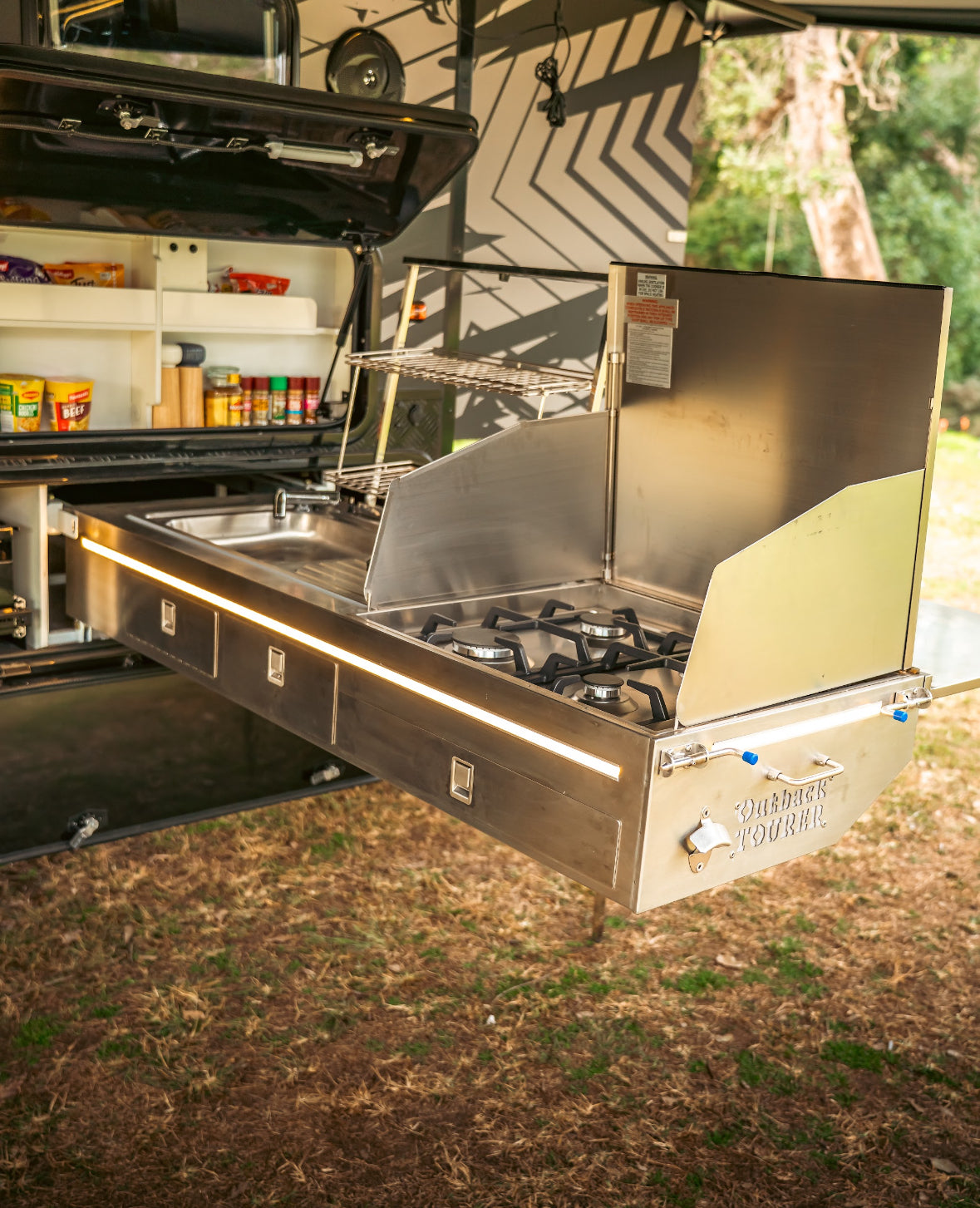

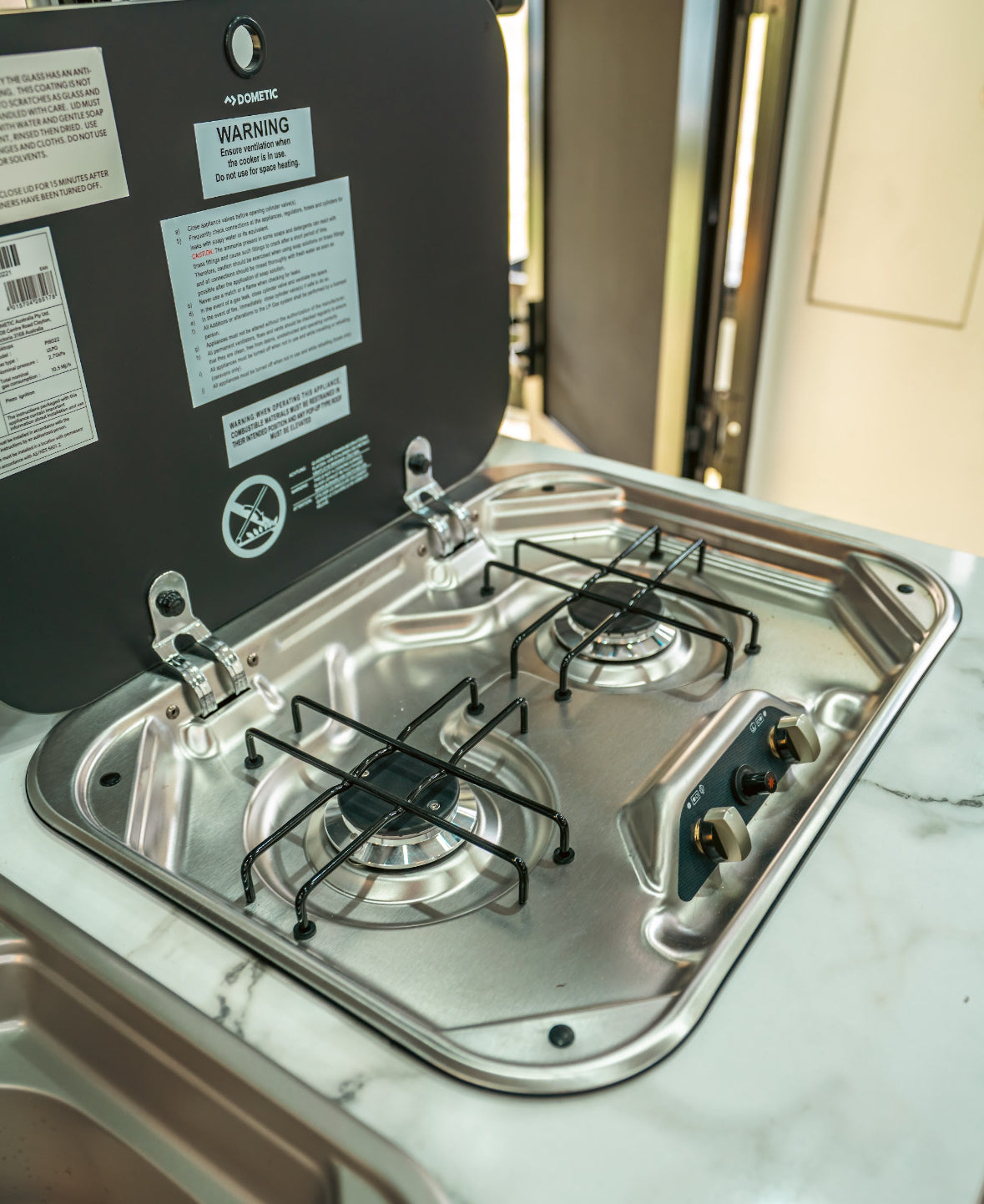

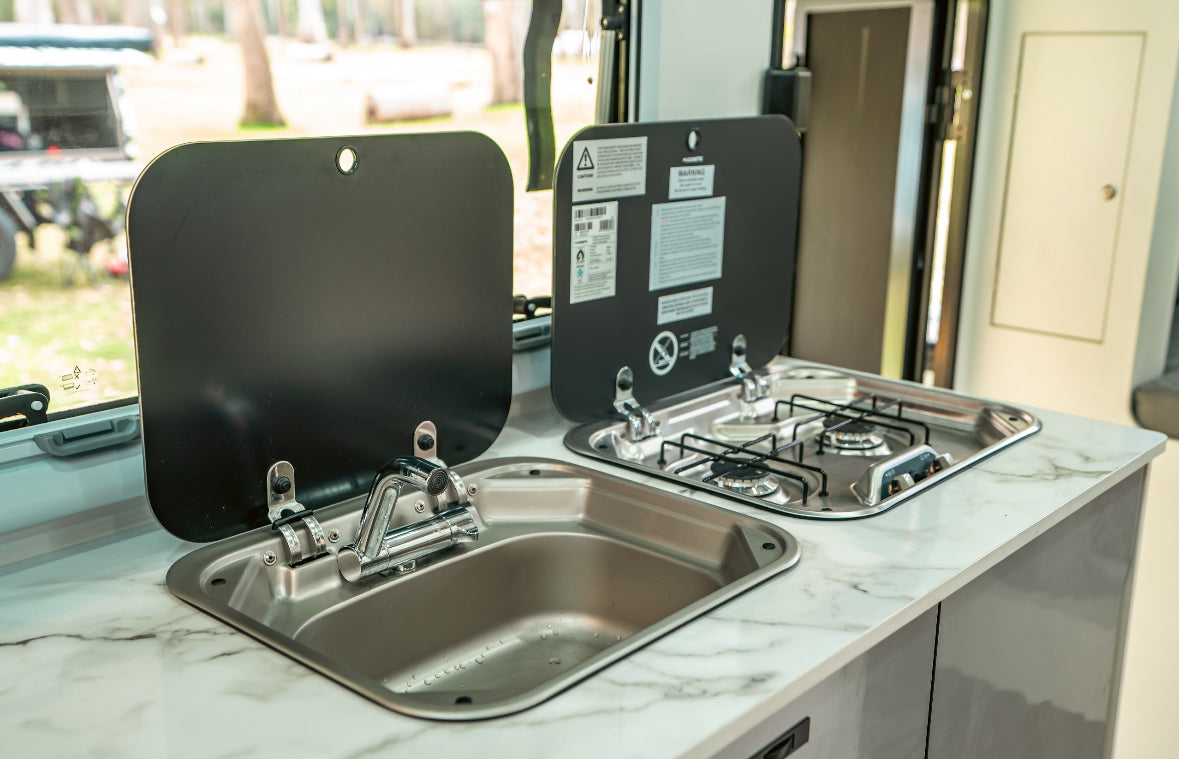

Stainless steel kitchen: Standard with dish rack & folding prep bench and wind guard

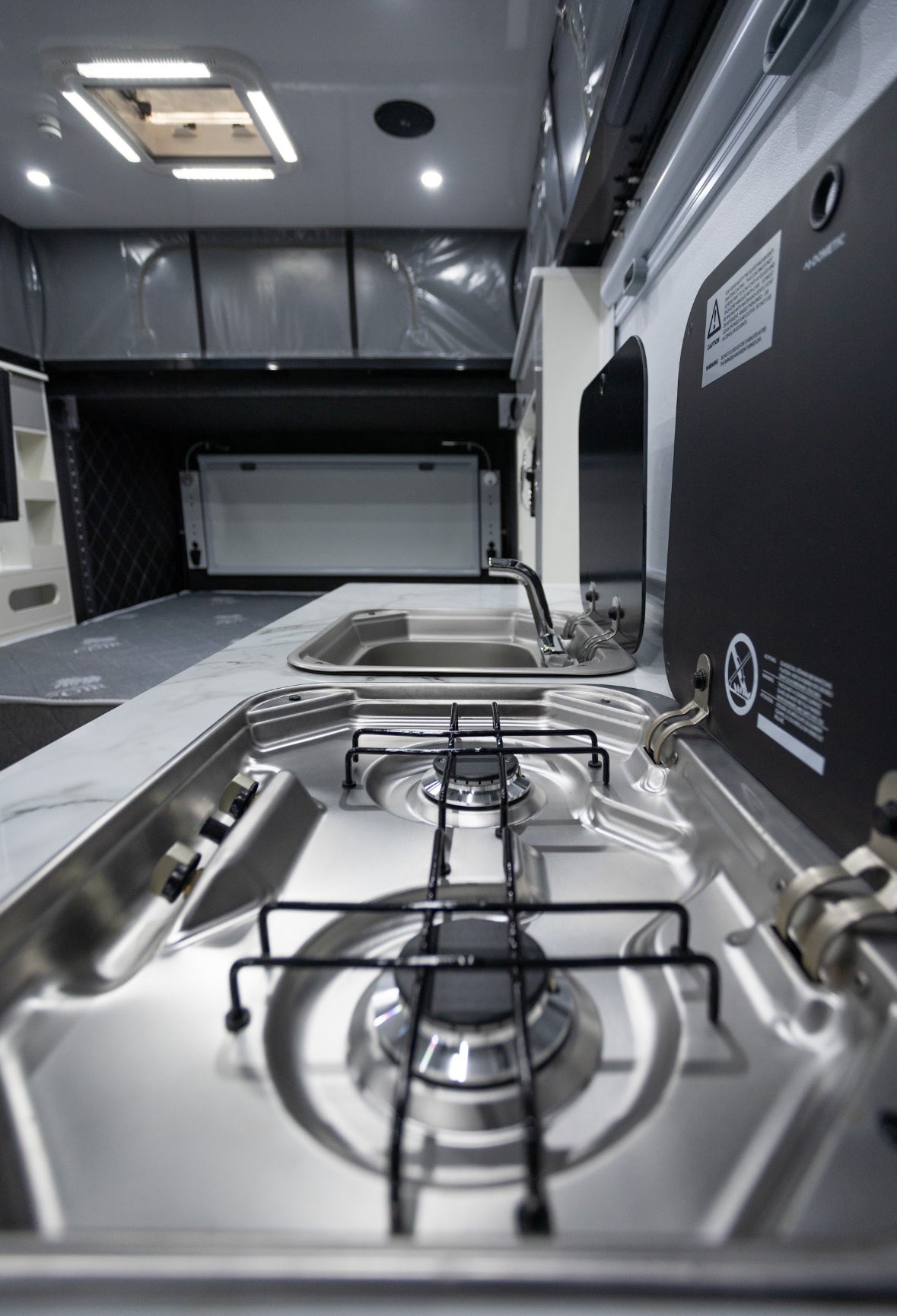

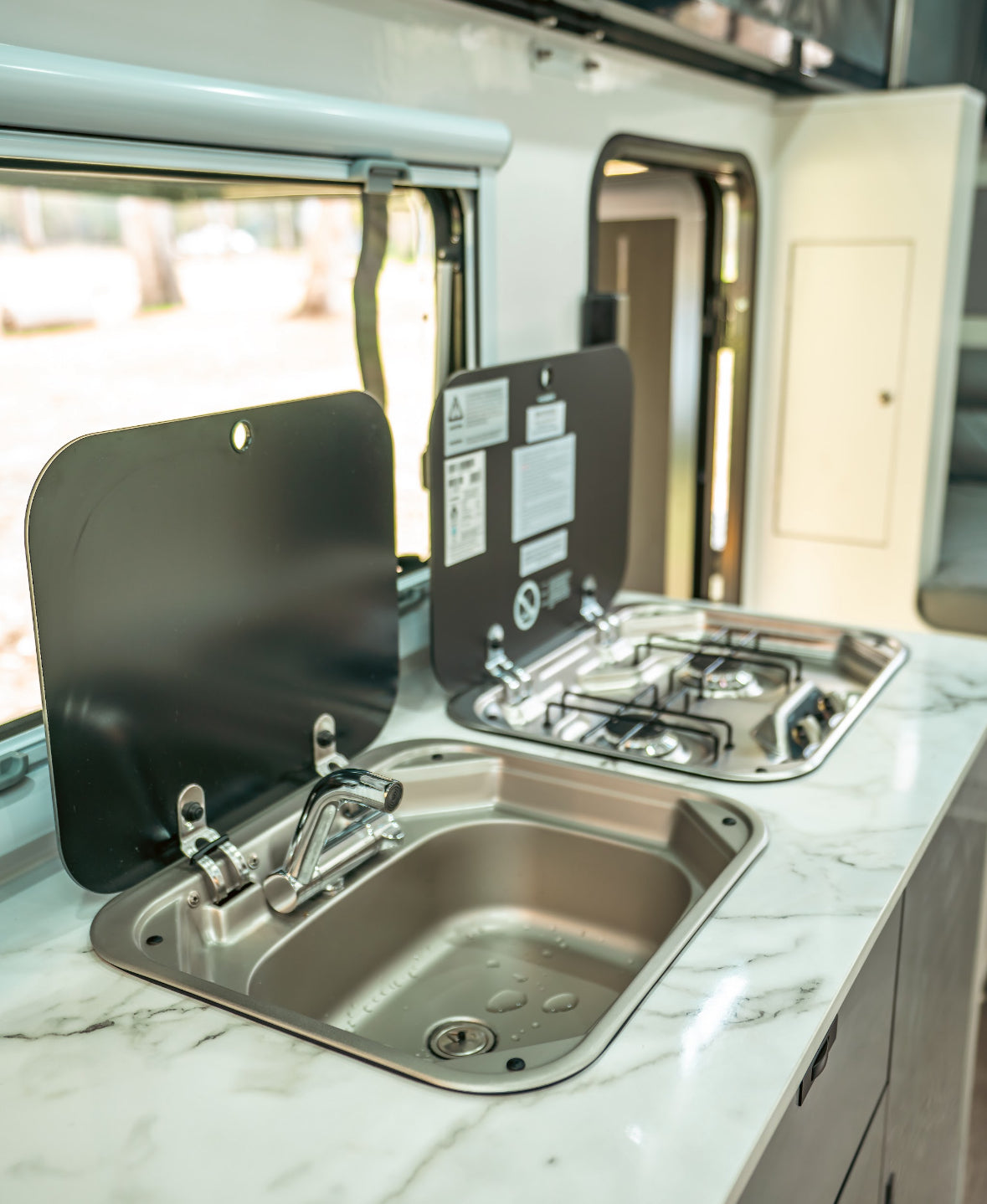

Gas & plumbing: External kitchen & internal kitchen & hot water system
Plumbed water: To ensuite & sinks + A frame water hose tap

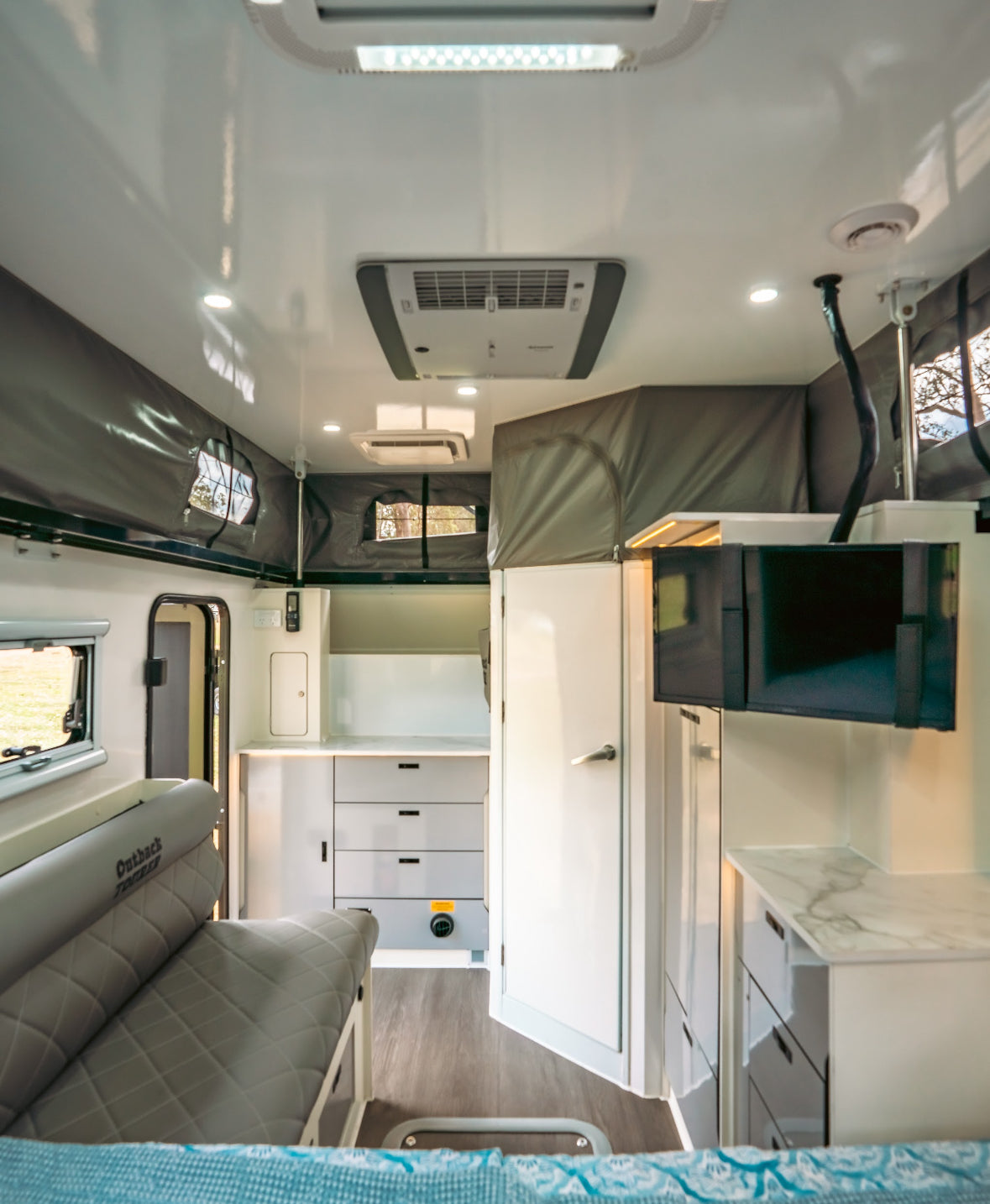

Air conditioning:Dometic Fresh Jet series 4
5KW diesel heater

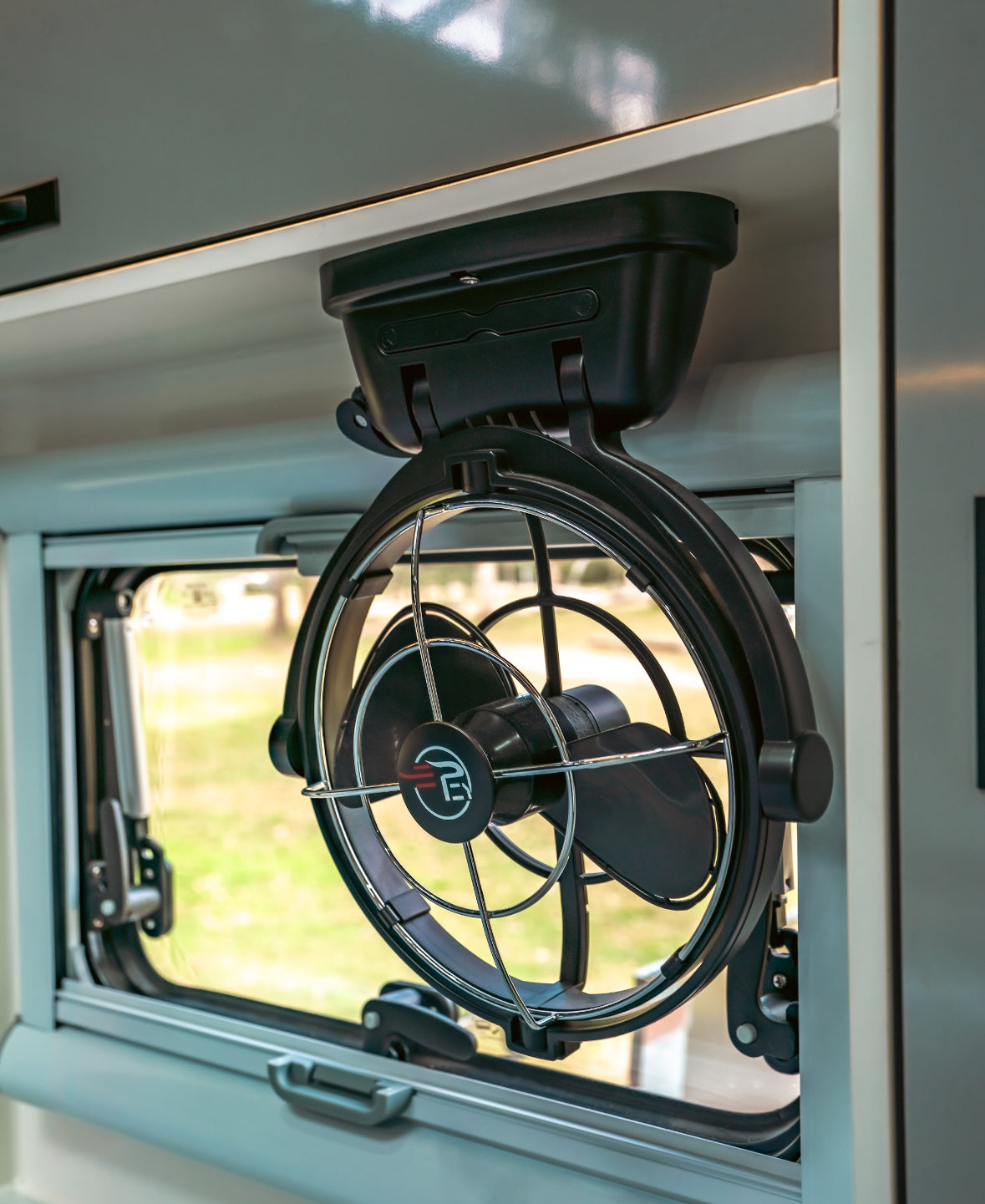

Internal fans: 4 adjustable Ranger fans with 3 speed settings & timers
Internal seating: Pleather

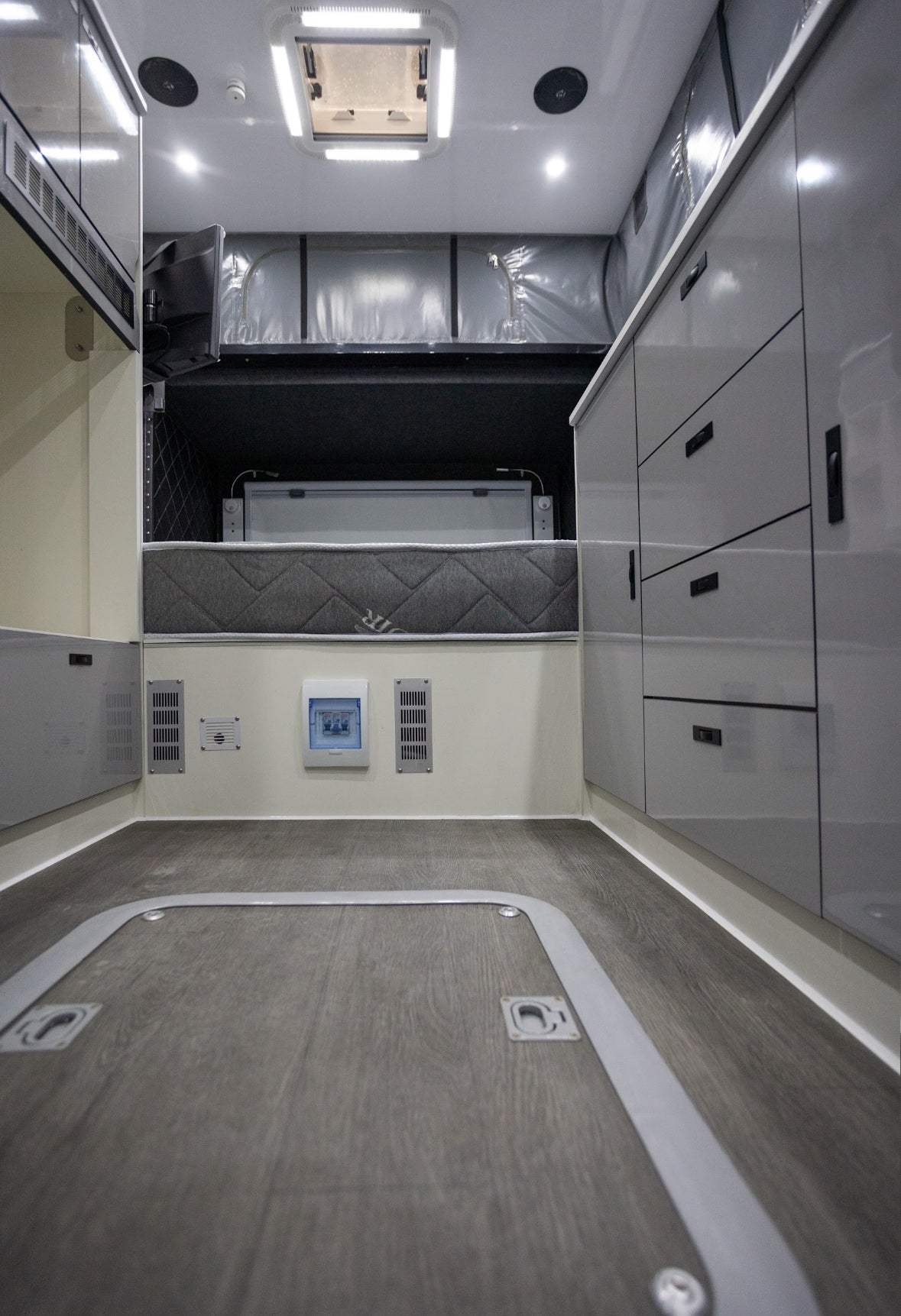

Flooring: Composite floor with premium vinyl
Club lounge dimensions: 1850mm x 950mm

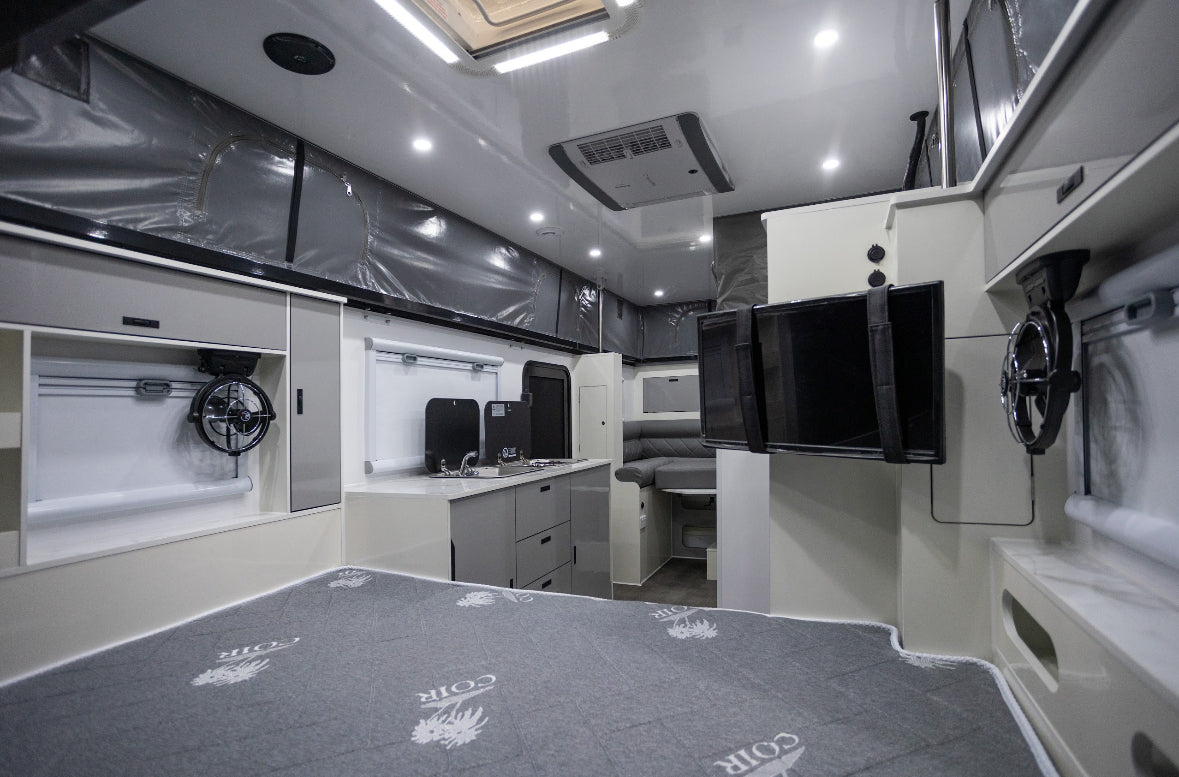

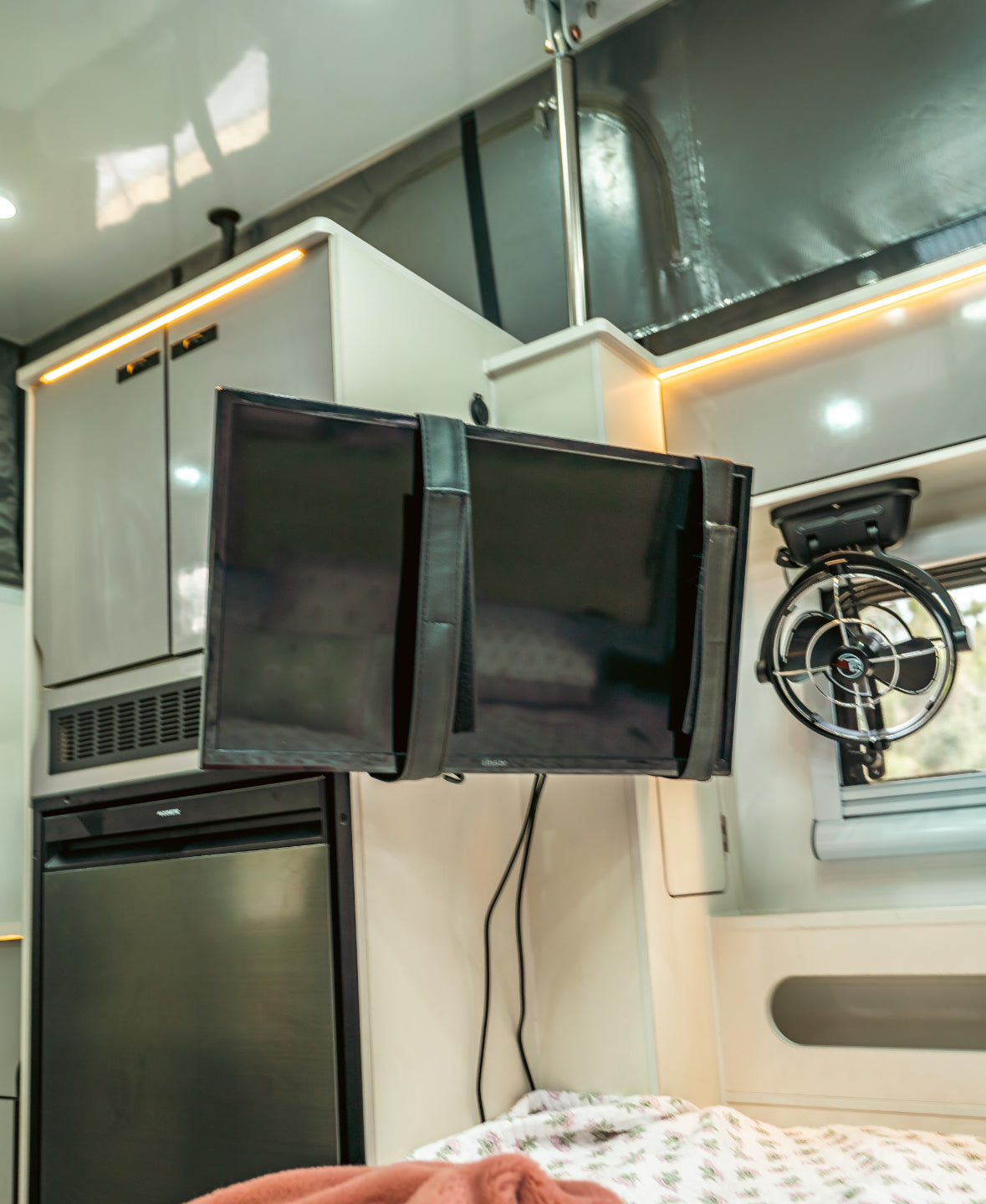

TV: 24 inch Linsar smart TV Netflix, Stan, Disney & Prime compatible
Entertainment system: DVD/BT/CD/radio with 4 Fusion marine speakers

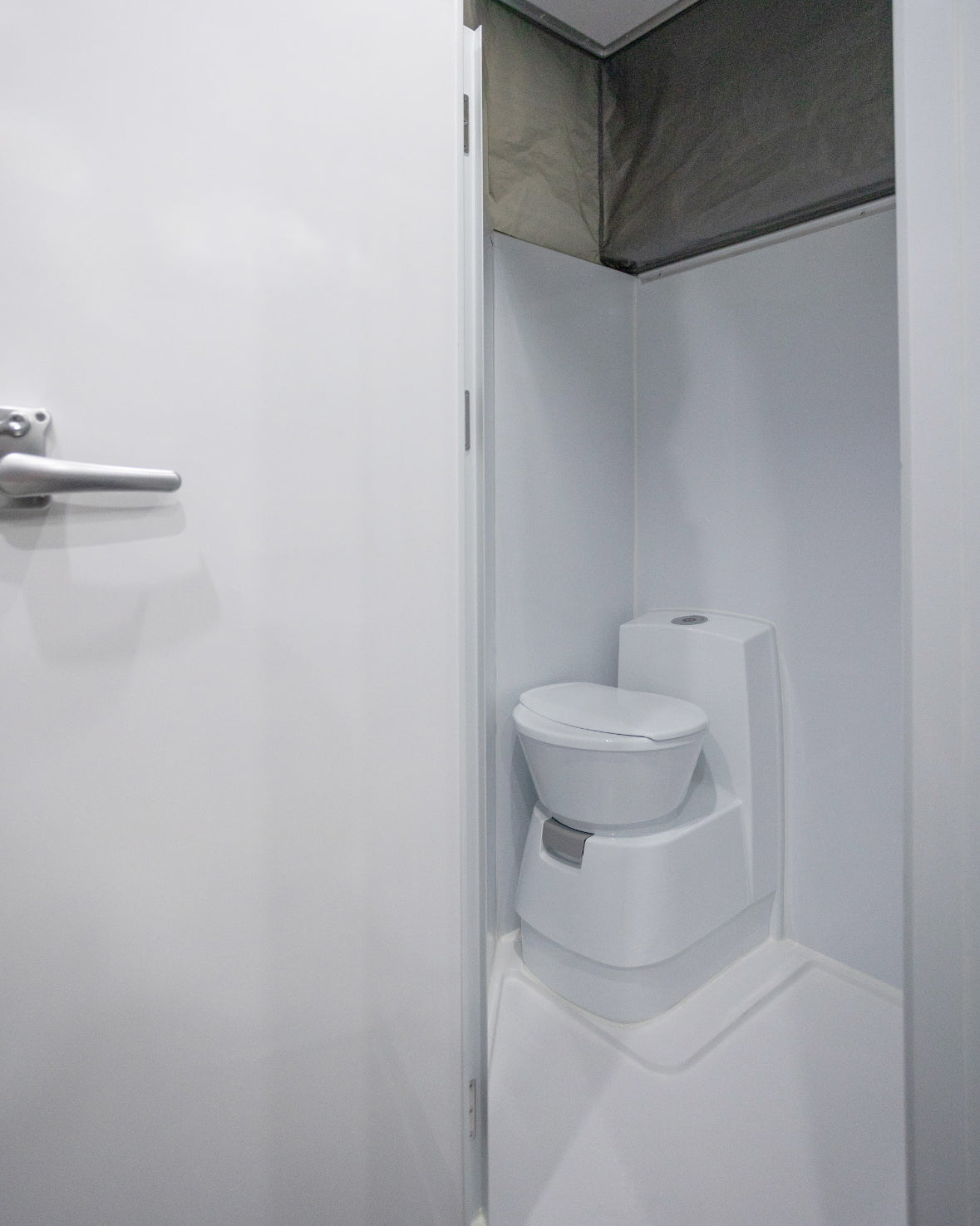

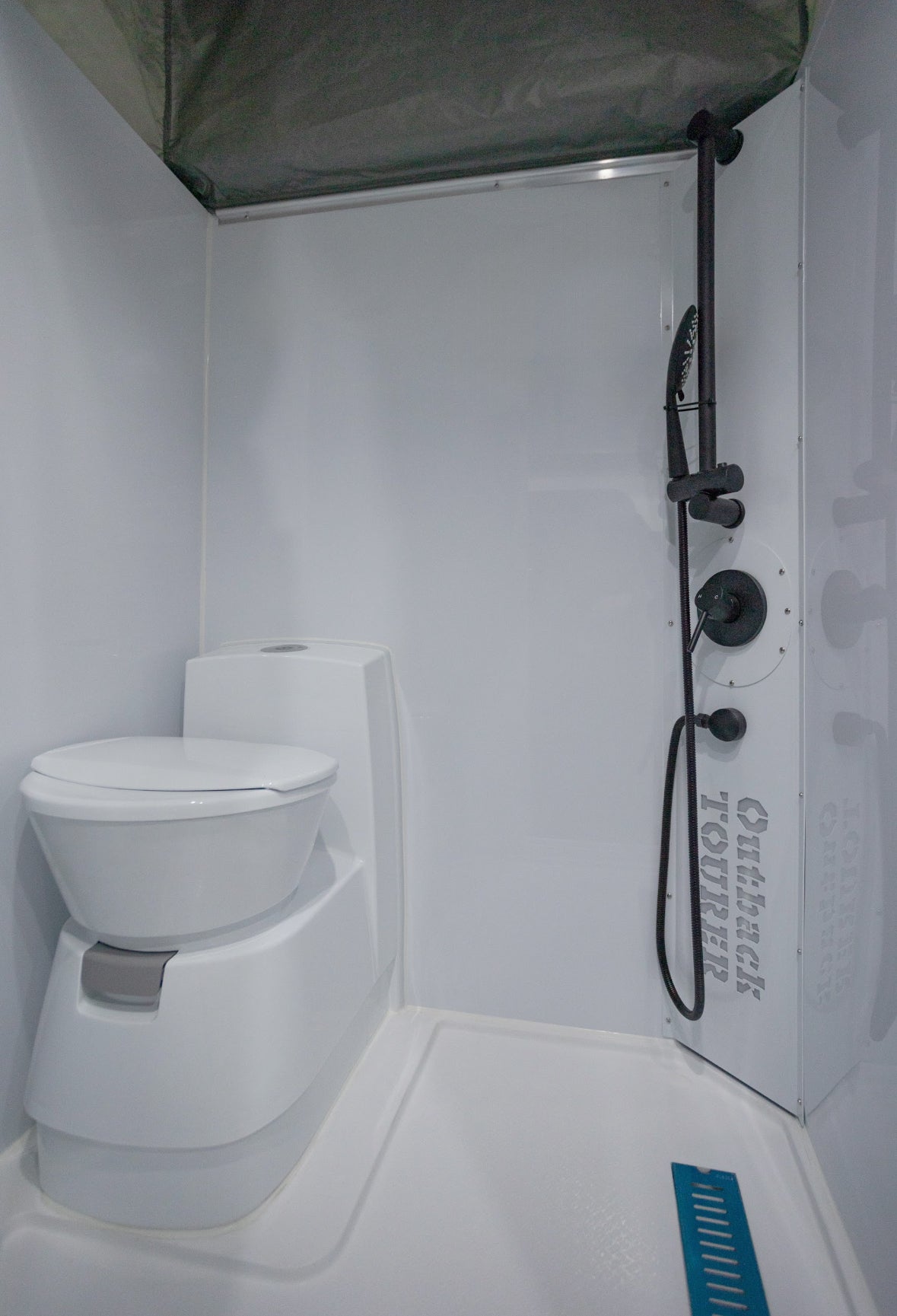

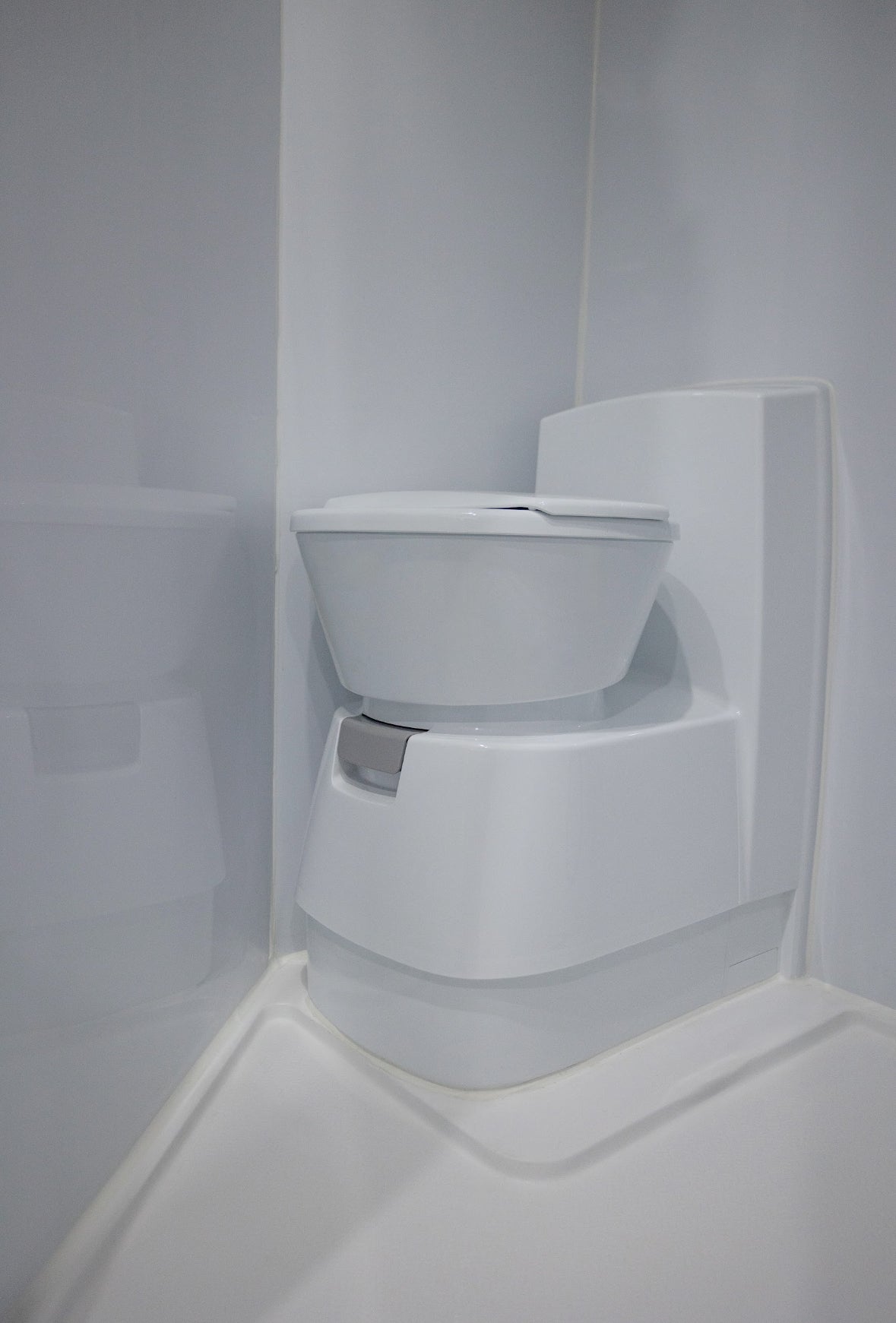

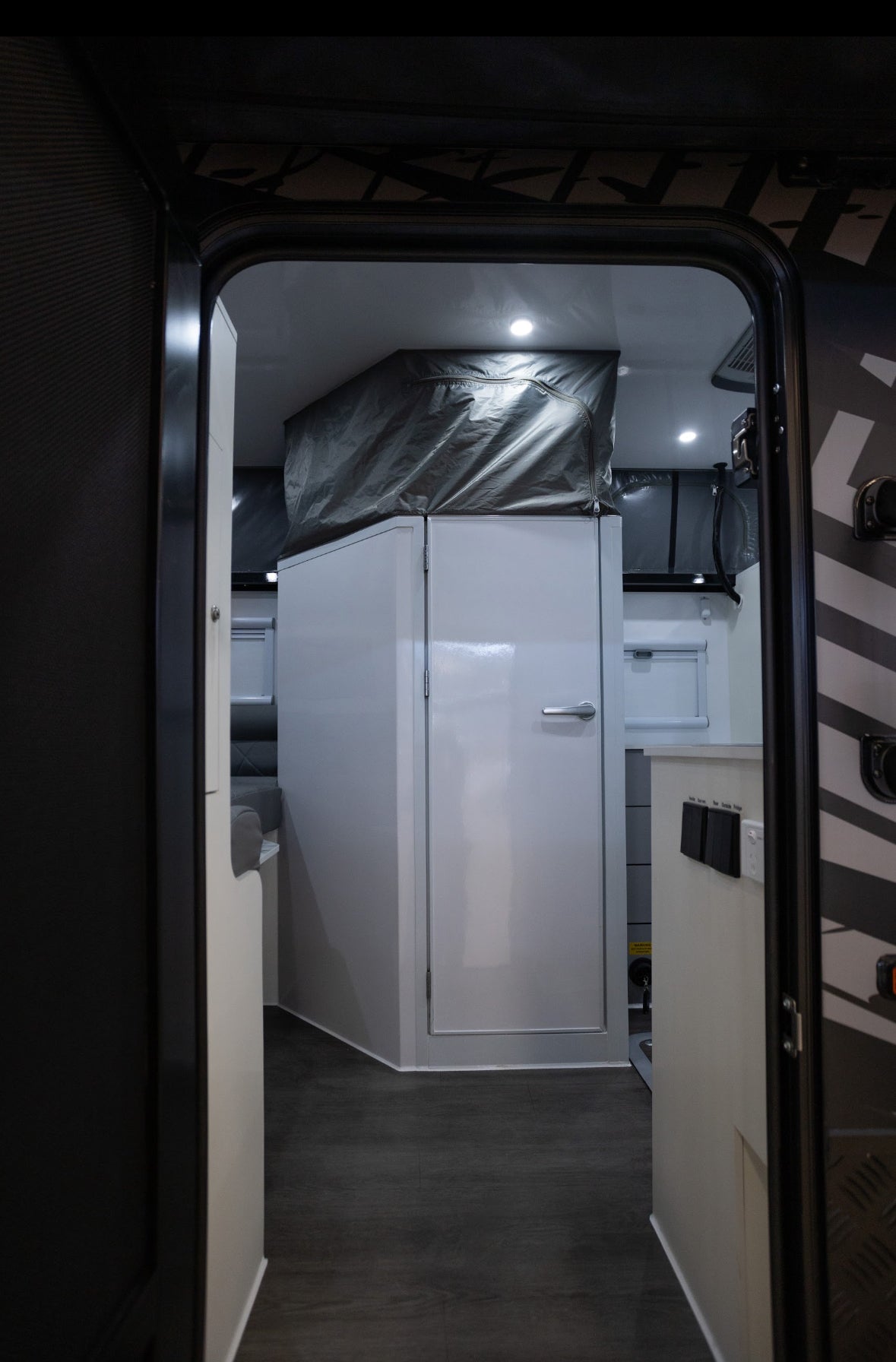

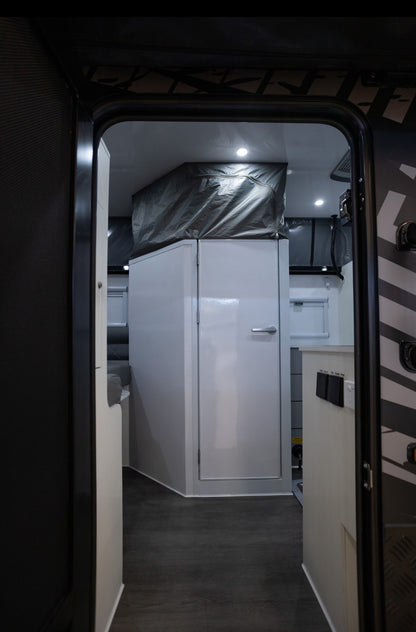

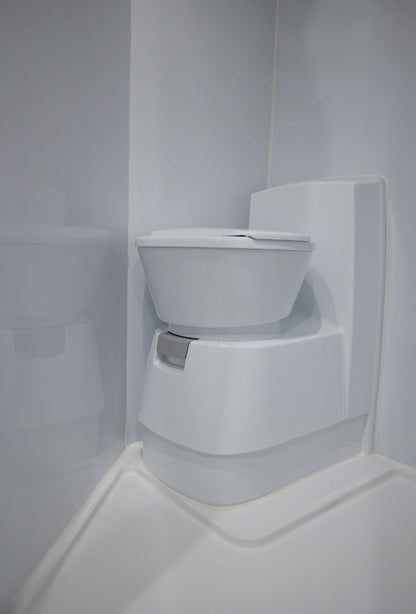

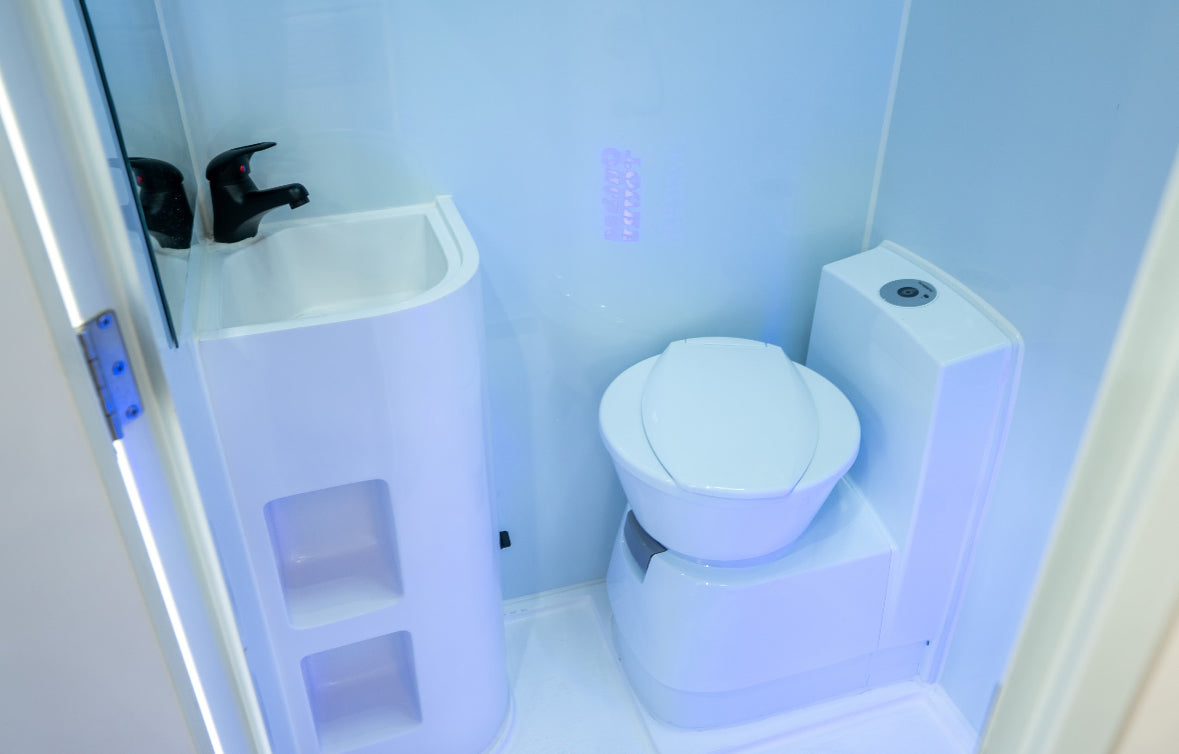

Internal ensuite: Dometic cassette toilet and shower
External shower: Included with shower tent & LED lighting
· Tare: 2520kg
· ATM: 2990kg
· Ball weight 200kg
· Length: 6930mm
Height when closed: 2670mm
· Height when open: 3070mm
· Width: 2170mm (this does not include awning)
Battery: 400Ah – 800Ah LiFePO4

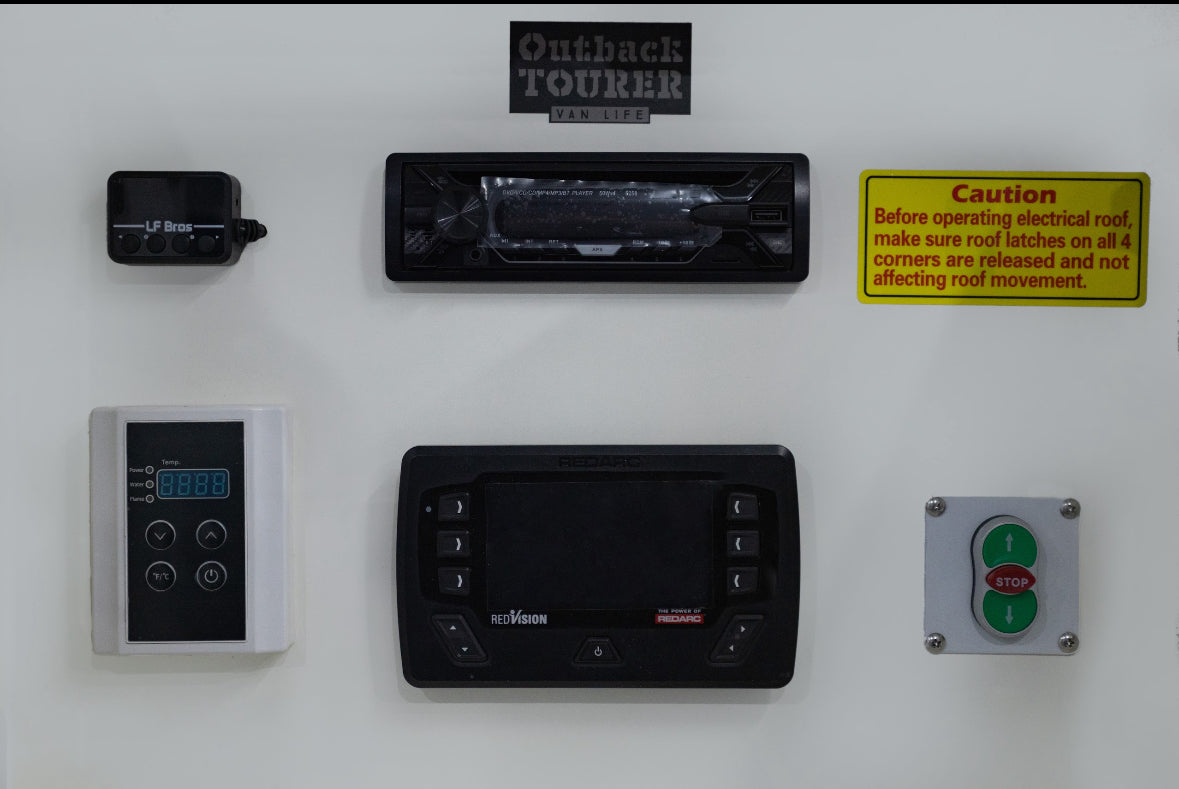

Battery Management System: Redarc Manager 30 / 50 with RedVision display (charger)
Battery Distribution: Redarc Rogue 40A distribution box
Inverter: Redarc RS3 2000W – 3000W pure sine wave with auto transfer
Solar System: 850W monocrystalline roof-mounted panels
External Solar Input: Included
Water Tank Monitoring: Displayed via RedVision system
Fridge Slide Power: 240V, Anderson plug & 12V socket
Internal 12V: 12V sockets, USB-A & USB-C
External 12V: 12V sockets, USB-A
External Outputs: 2x 3.5mm sockets
External Lighting: Dual-tone LED (amber & white)
240V System: 15A inlet & 10A waterproof outlet
Antenna: Milenco Power 900mm (360° horizontal & vertical)
Plug Connections: 7-pin flat plug & 50A Anderson plug
Product Detail
Exterior inclusions -
Coupling: Cruisemaster DO35 hitch
Jockey Wheel: ARK 750 off road jockey dual wheel (750kg rating with 6 adjustable heights)
Chassis: Fully galvanized steel inside & out
Brakes: 12” electric off road drum brakes
Under body protection coating: Standard
ADR approved safety chains: 2 with D shackles
Gas shock absorbers: 4
Full size spare wheel: 2
Jerry can holders: Includes tie down points
Awning: Outback Tourer Awning
Breakaway system
Suspension: Australian designed adjustable independent trailing arm suspension
Wheels: 6 stud 16” alloy
Tyres: 265/75/R16 radial MT / AT tyres
Stabilizer legs: 4 heavy duty adjustable drop-down legs with winder
Fan in fridge slide: Standard
Rear view camera: Australian supplied wireless camera
Luxuries inclusions -
Front water tank: 120L poly with bash plate
Rear water tank: 120L poly with bash plate
Grey water tank: 80L poly with bash plate
Mains water inlet
Dometic dust reduction system

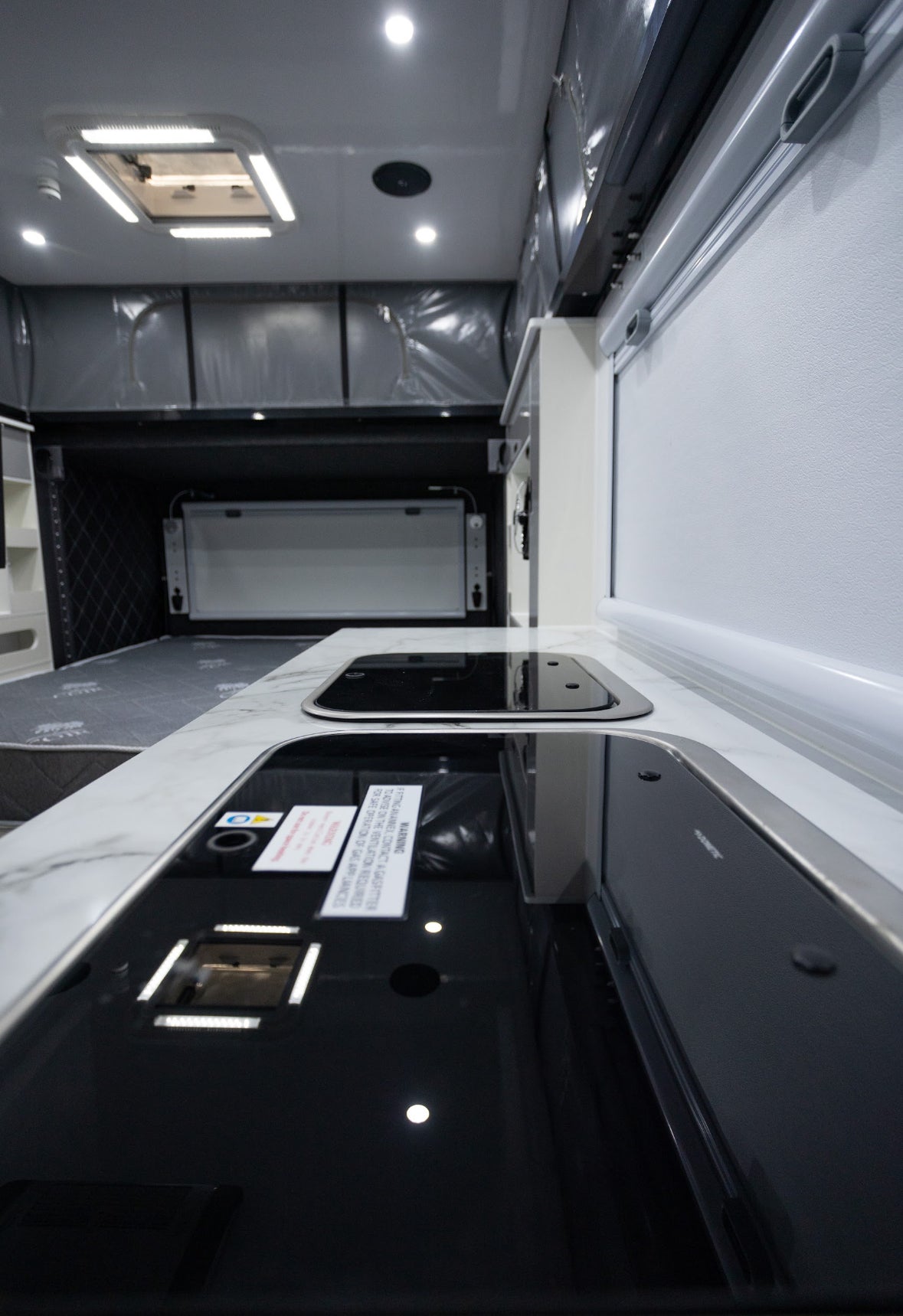

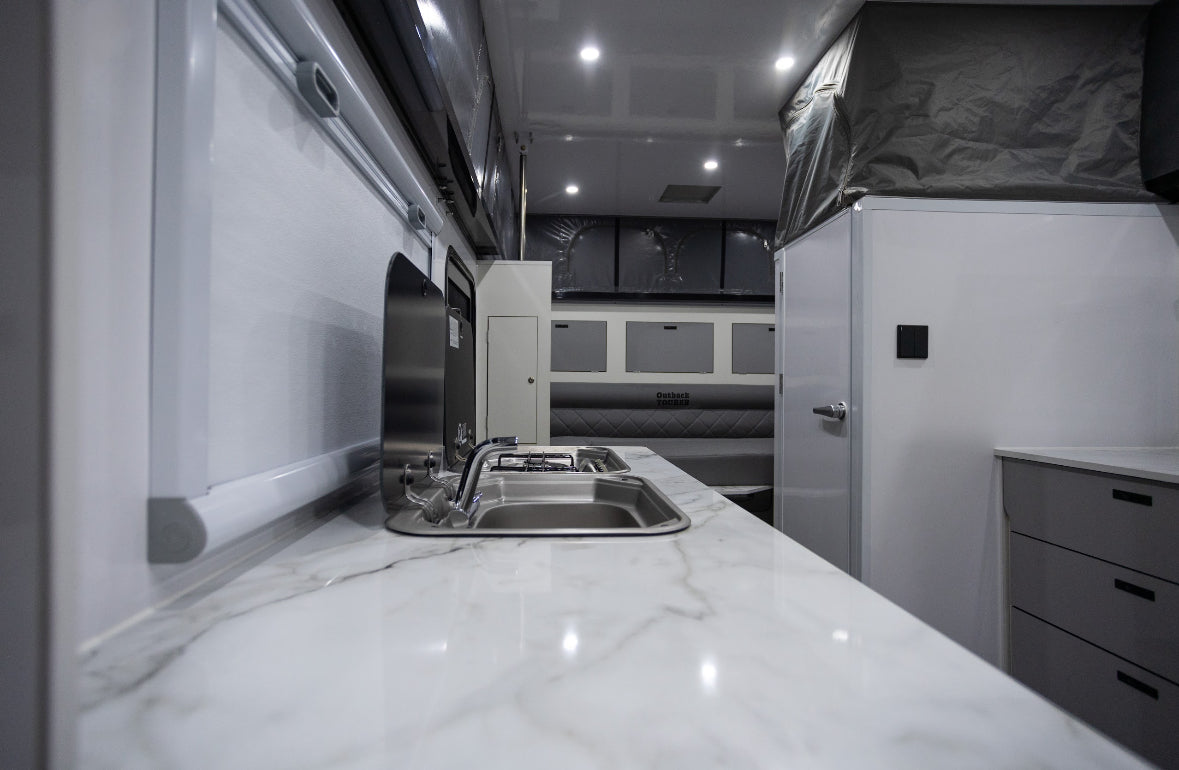

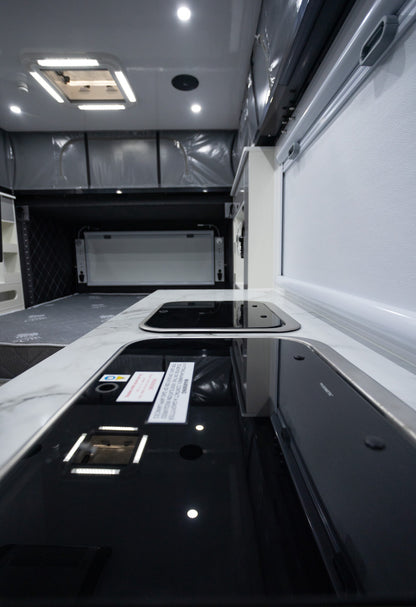

Stainless steel kitchen: Standard with dish rack & folding prep bench and wind guard

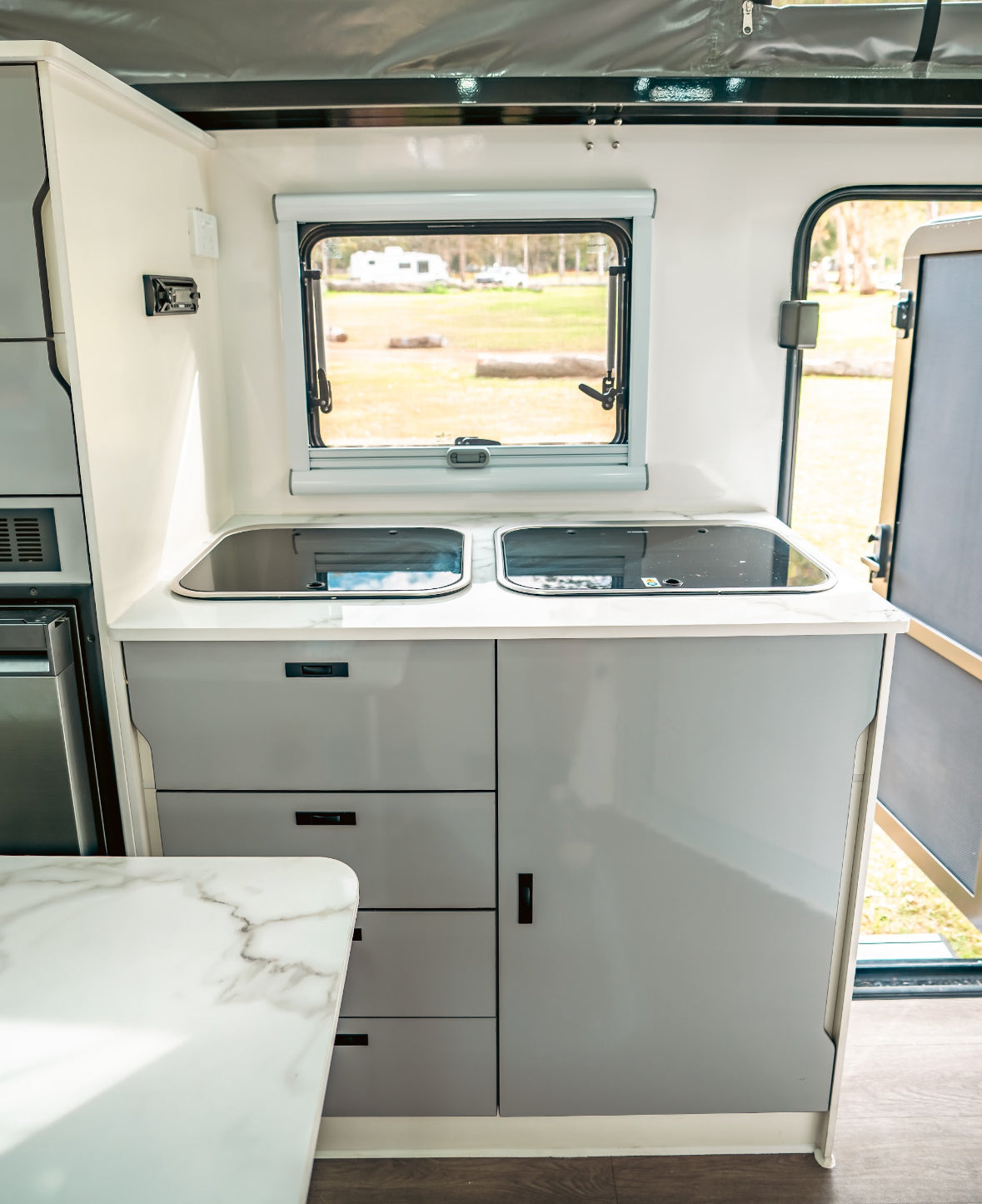

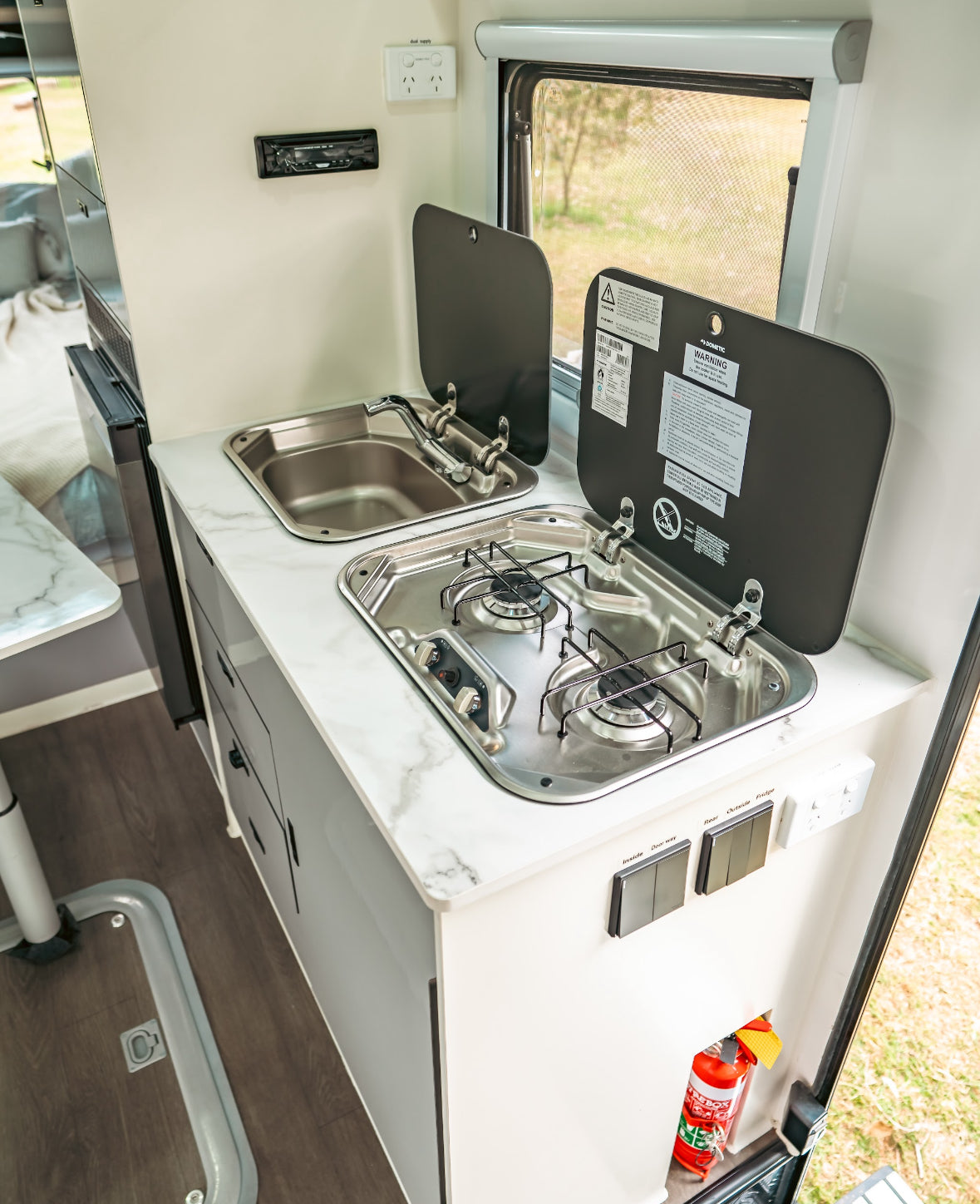

Gas & plumbing: External kitchen & internal kitchen & hot water system
Plumbed water: To ensuite & sinks + A frame water hose tap
Air conditioning: Dometic Fresh Jet series 4
5KW diesel heater
Internal fans: 4 adjustable Ranger fans with 3 speed settings & timers
Internal seating: Pleather
Flooring: Composite floor with premium vinyl
Club lounge dimensions: 1850mm x 950mm
TV: 24 inch Linsar smart TV Netflix, Stan, Disney & Prime compatible
Entertainment system: DVD/BT/CD/radio with 4 Fusion marine speakers
Internal ensuite: Dometic cassette toilet and shower
External shower: Included with shower tent & LED lighting
Electrical inclusions / Options -
Battery: 400ah - 800ah - LifePro4 battery
Battery management system: Redarc Manager 30 / 50 with Redvision display ( Charger )
Battery distribution system: Redarc Rouge 40A distribution box
Inverter: Redarc RS3 2000W - 3000W pure sine wave inverter with auto transfer
Solar system: 850W monocrystalline solar panels roof mounted
External solar point
Water tank gauges: Standard monitored through Redvision display
Fridge slide power: 240V, Anderson plug, 12V socket
Internal 12V: 12V sockets, USB-A, USB-C
External 12V: 12V sockets, USB-A
External 12V: 2x 3.5mm sockets
External LED lighting: Dual tone (amber & white)
240V power system: 15A inlet & 10A outlet waterproof
Antenna: Milenco Power 900mm 360 degrees horizontal and vertical
Plug connection: 7 pin flat plug & 50amp Anderson plug.
Weights -
· Tare: 2520kg
· ATM: 2990kg
· Ball weight 200kg
· Length: 6930mm
Height when closed: 2670mm
· Height when open: 3070mm
· Width: 2170mm (this does not include awning)

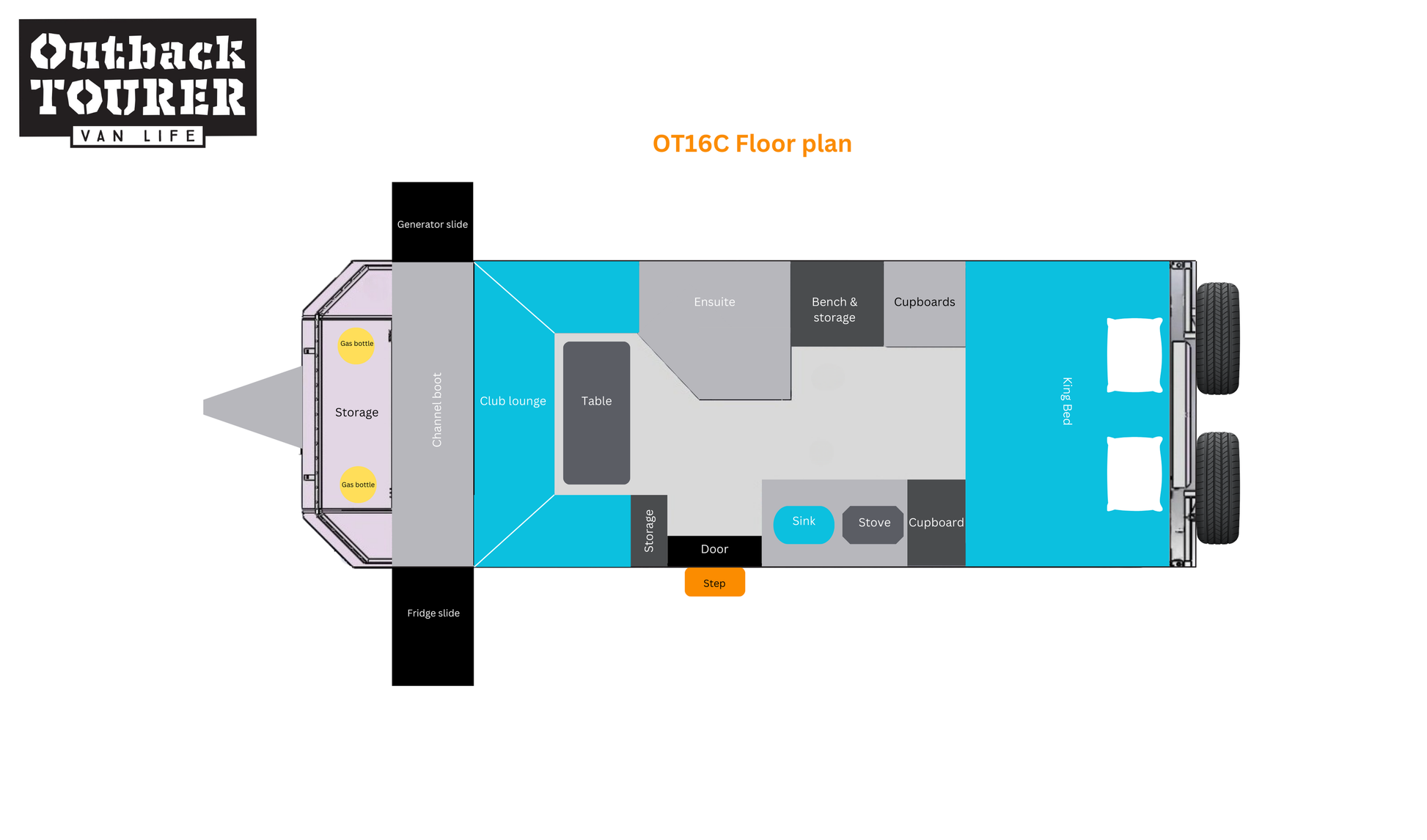

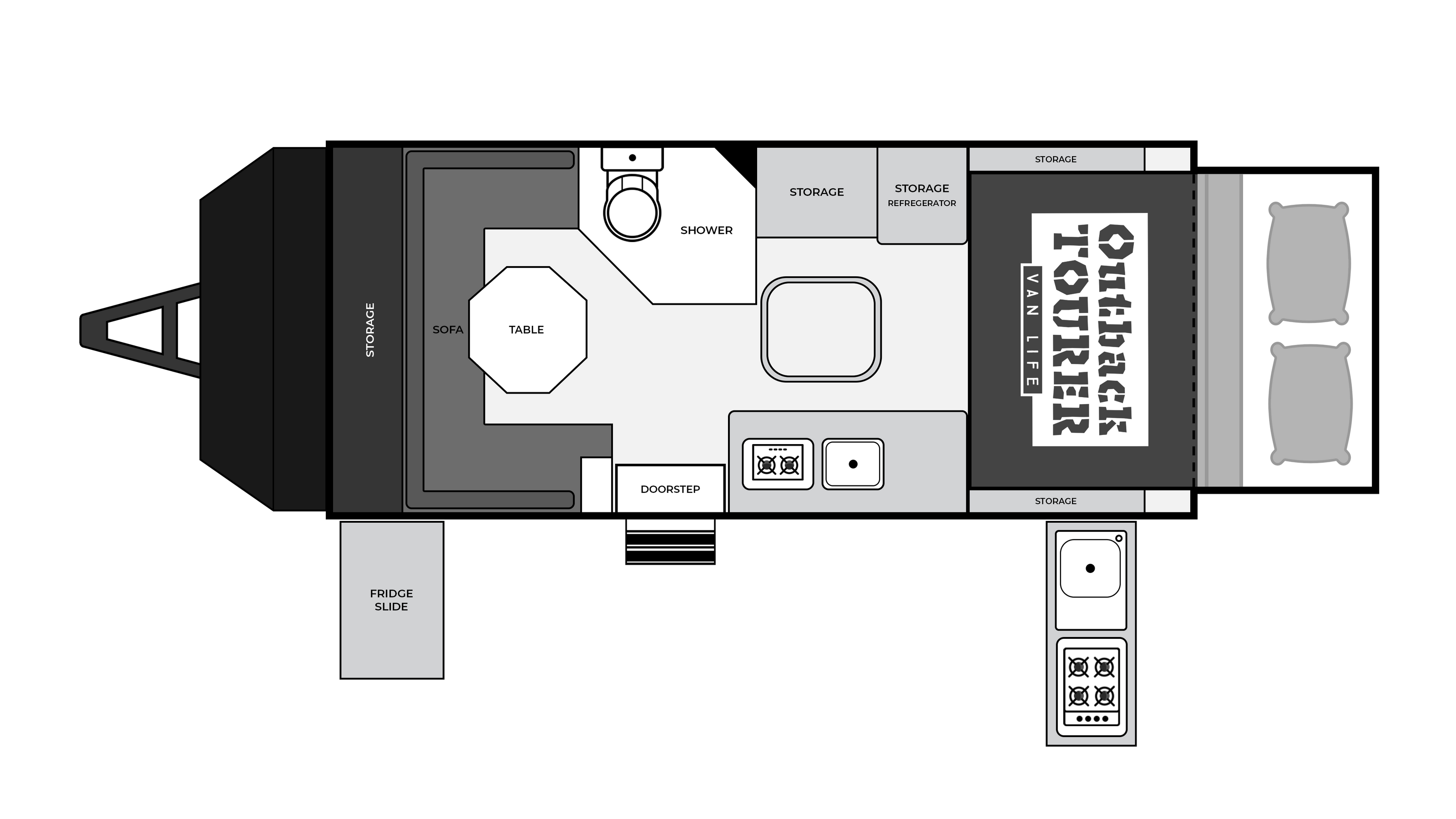

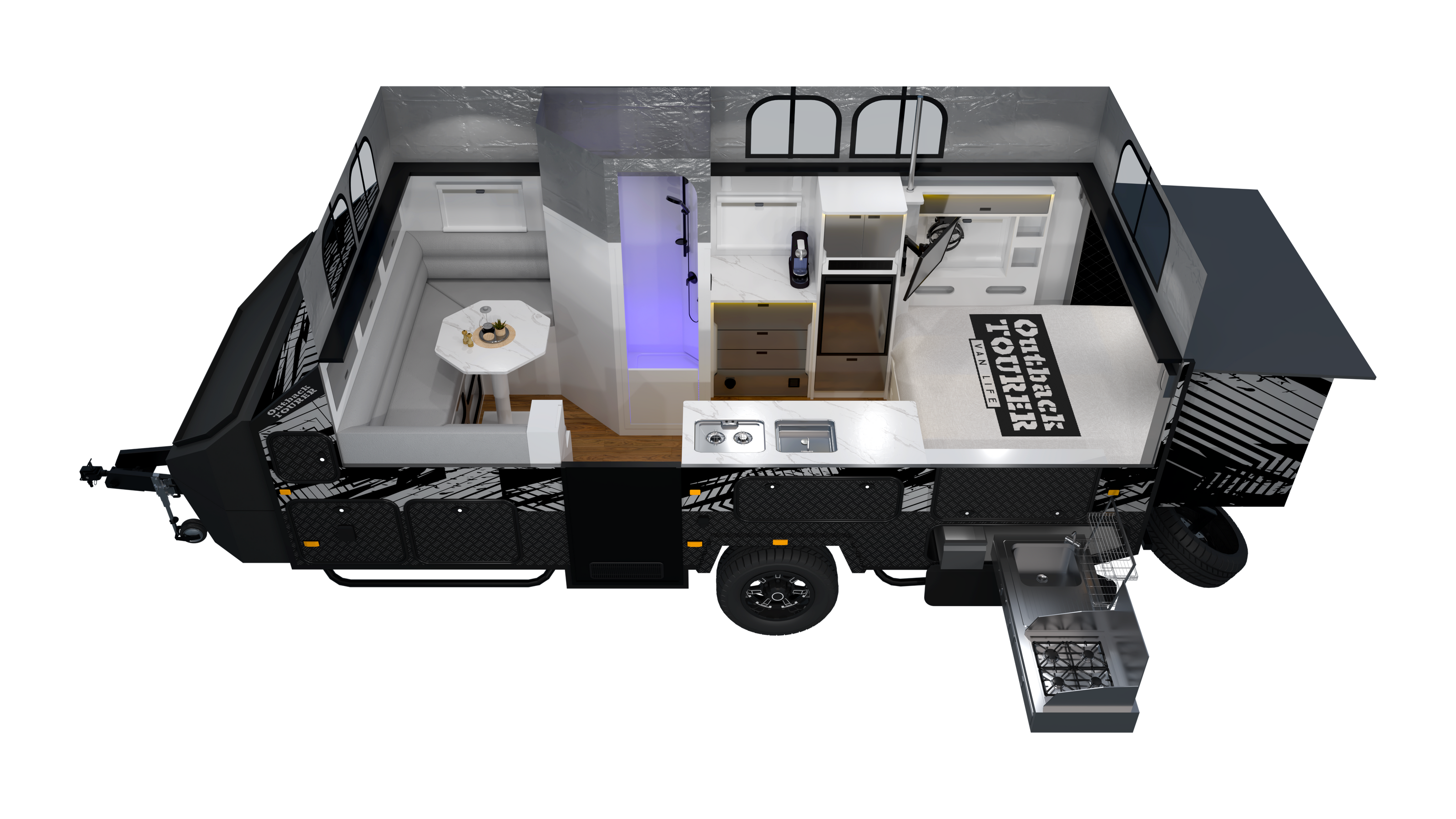

Layout / Floorplan
Flexible Finance Options
Powered by Redarc
Not just a brand but a reliable electrical system for your van.
Completely fit out in house by our Auto electricians.
We wouldn't sell a van with any other electrical system.
Travel off grid with 7 day support.
Battery monitoring and water tank monitoring all in one place.
Dometic Dust Reduction System
Reduce the amount of dust in your van while travelling.
Creates a positive pressure inside your van to reduce dust ingress.
Interchangeable and cleanable cabin filter.
Bushproof no motors or electrical fittings.
240L of Onboard Fresh Water
2 x 120L tanks of on board fresh water.
Steel bash plate for water tank protection.
John Guess pipe fittings that can be purchased nationwide.
Drainage tap to flush tanks out easily.
Suspension Details
4 x Pedders shocks for a smooth ride.
Independent trailing arms for smooth flowing suspension.
Coil sprung design to ensure the van handles perfectly.
Balanced wheels in Australia.
