Product Detail
Exterior Inclusions -
Coupling: Cruisemaster DO35 hitch
Jockey Wheel: ARK 750 off road jockey dual wheel (750kg rating with 6 adjustable heights)
Chassis: Fully galvanized steel inside & out
Brakes: 12” electric off road drum brakes
Under body protection coating
ADR approved safety chains: 2 with D shackles

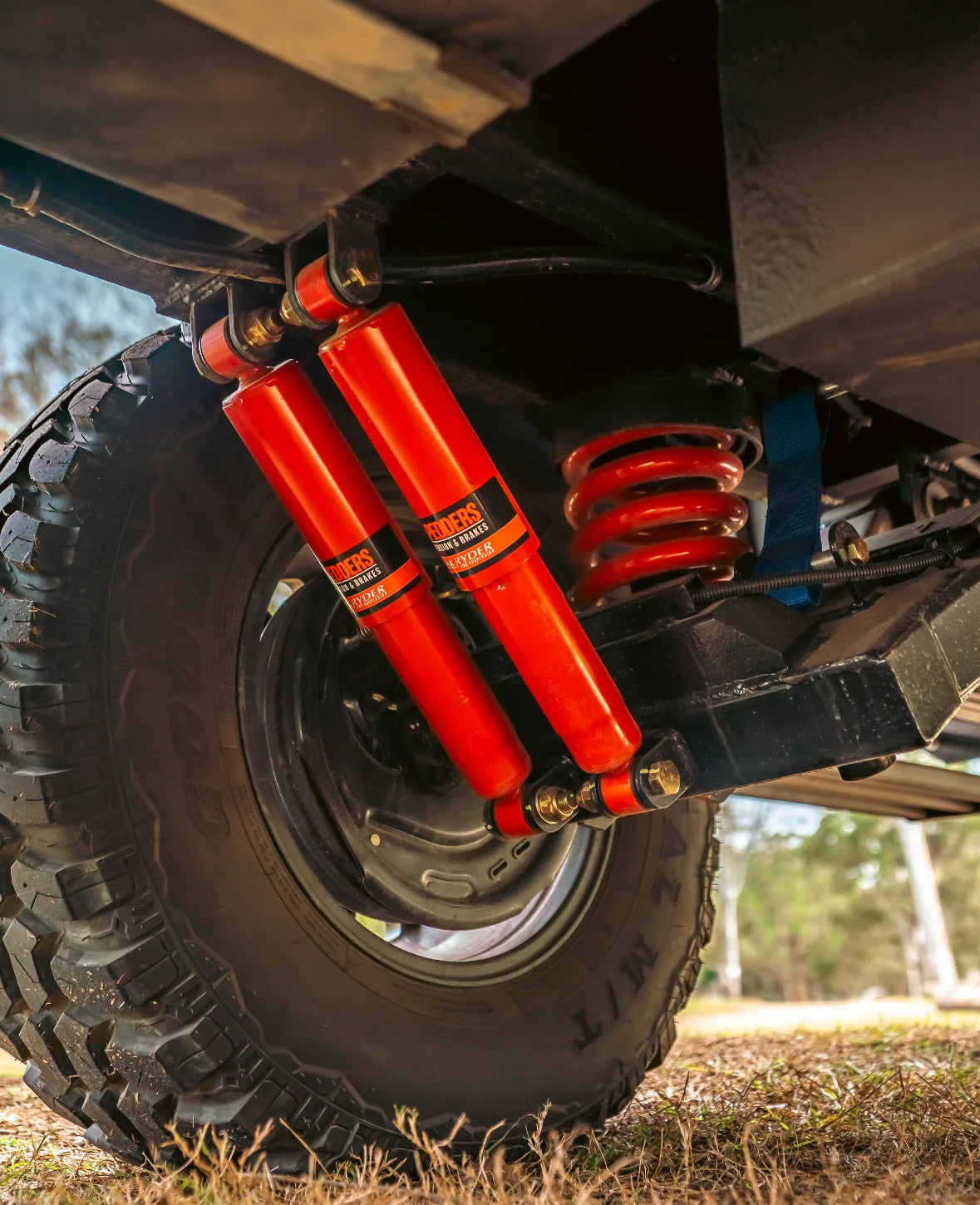

Gas shock absorbers: 4

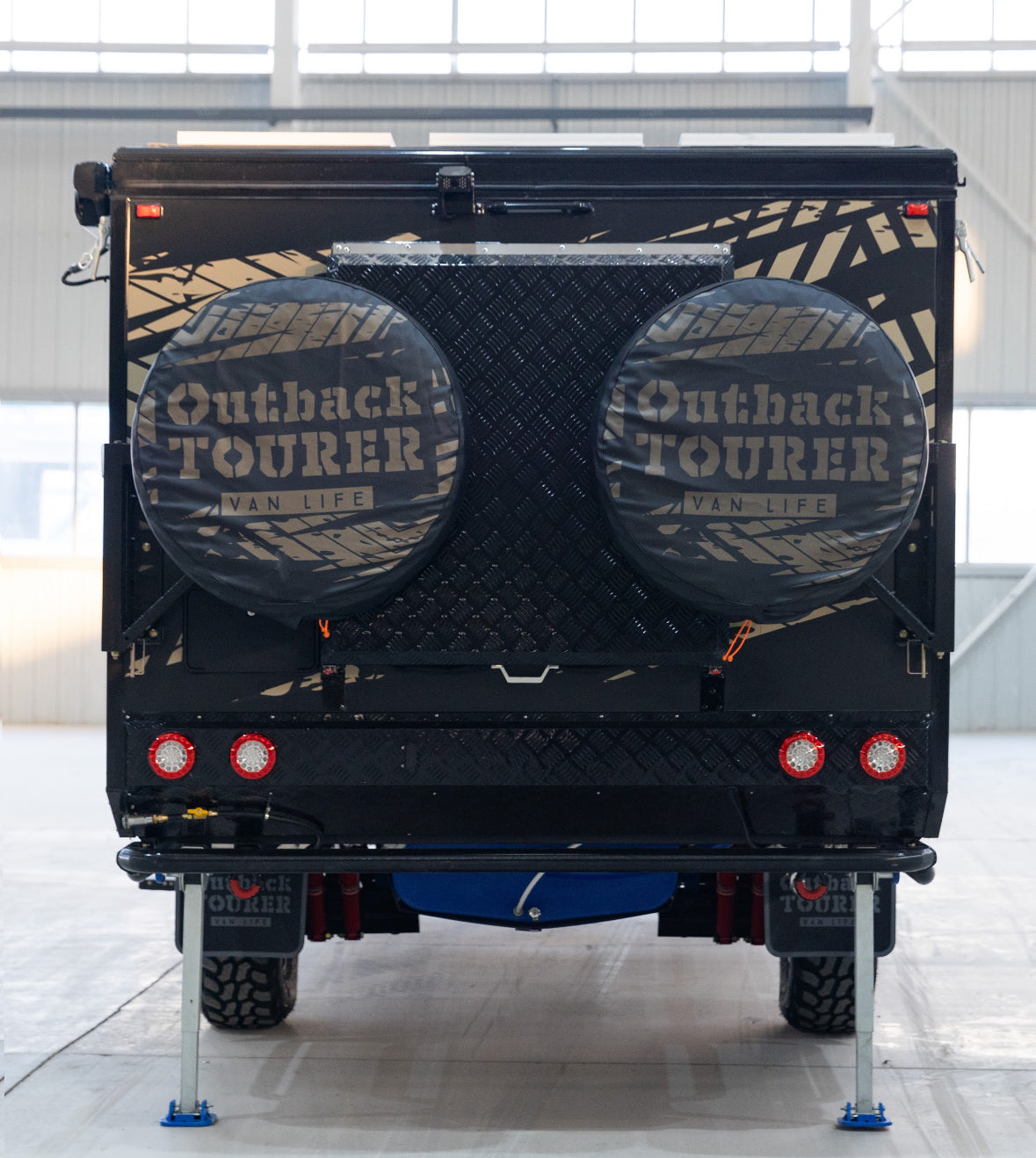

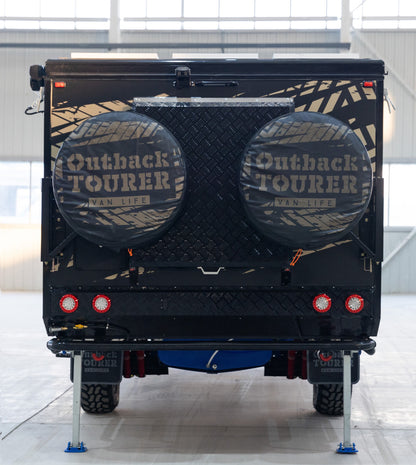

Full size spare wheel: 2
Jerry can holders: Includes tie down points
Outback Tourer 360 Awning ( NOT PICTURED )
Breakaway system
Suspension: Australian designed adjustable independent trailing arm suspension
Wheels: 6 stud 16” alloy
Tyres: 265/75/R16 radial MT tyres
Stabiliser legs: 4 heavy duty adjustable drop-down legs with winder

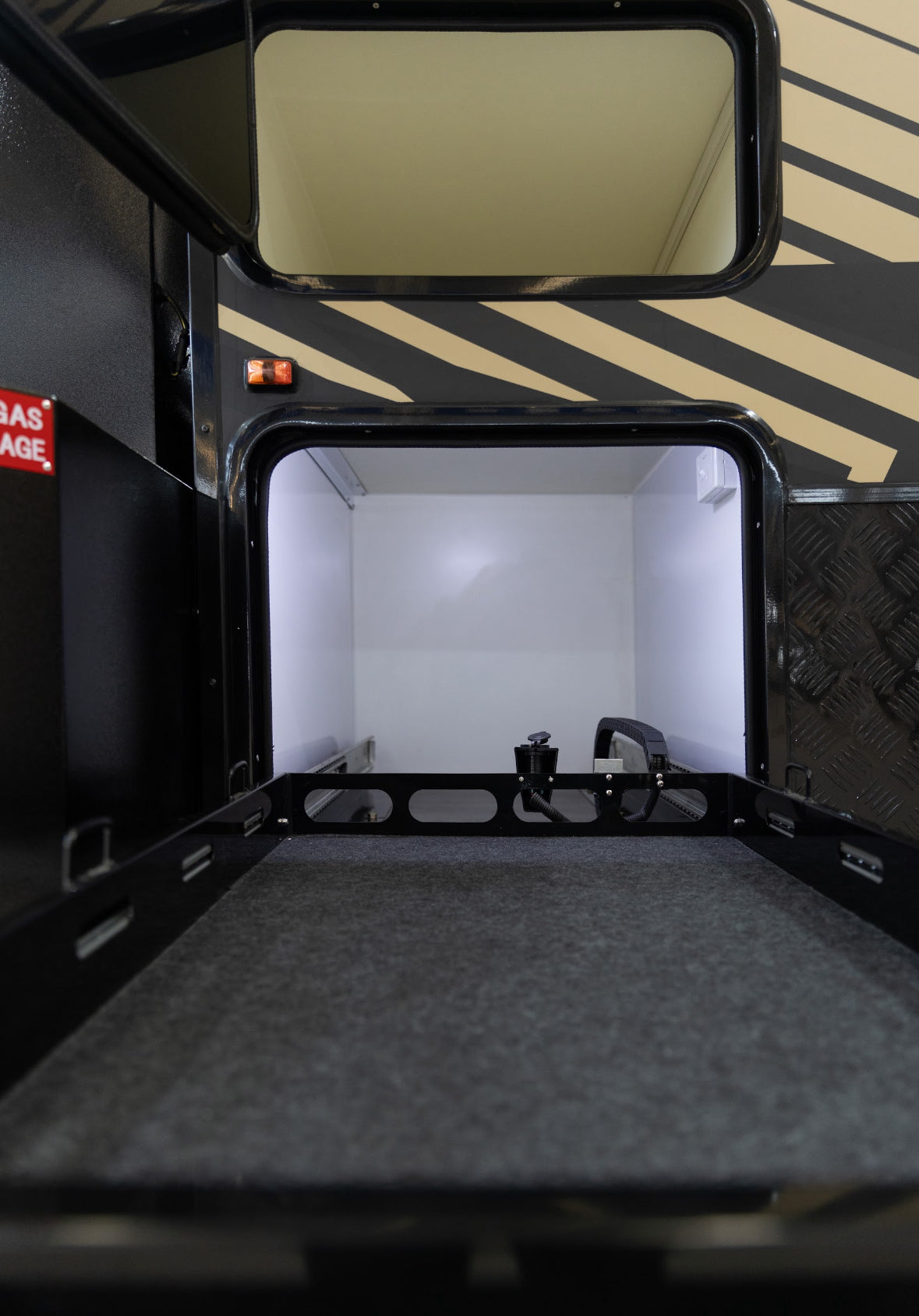

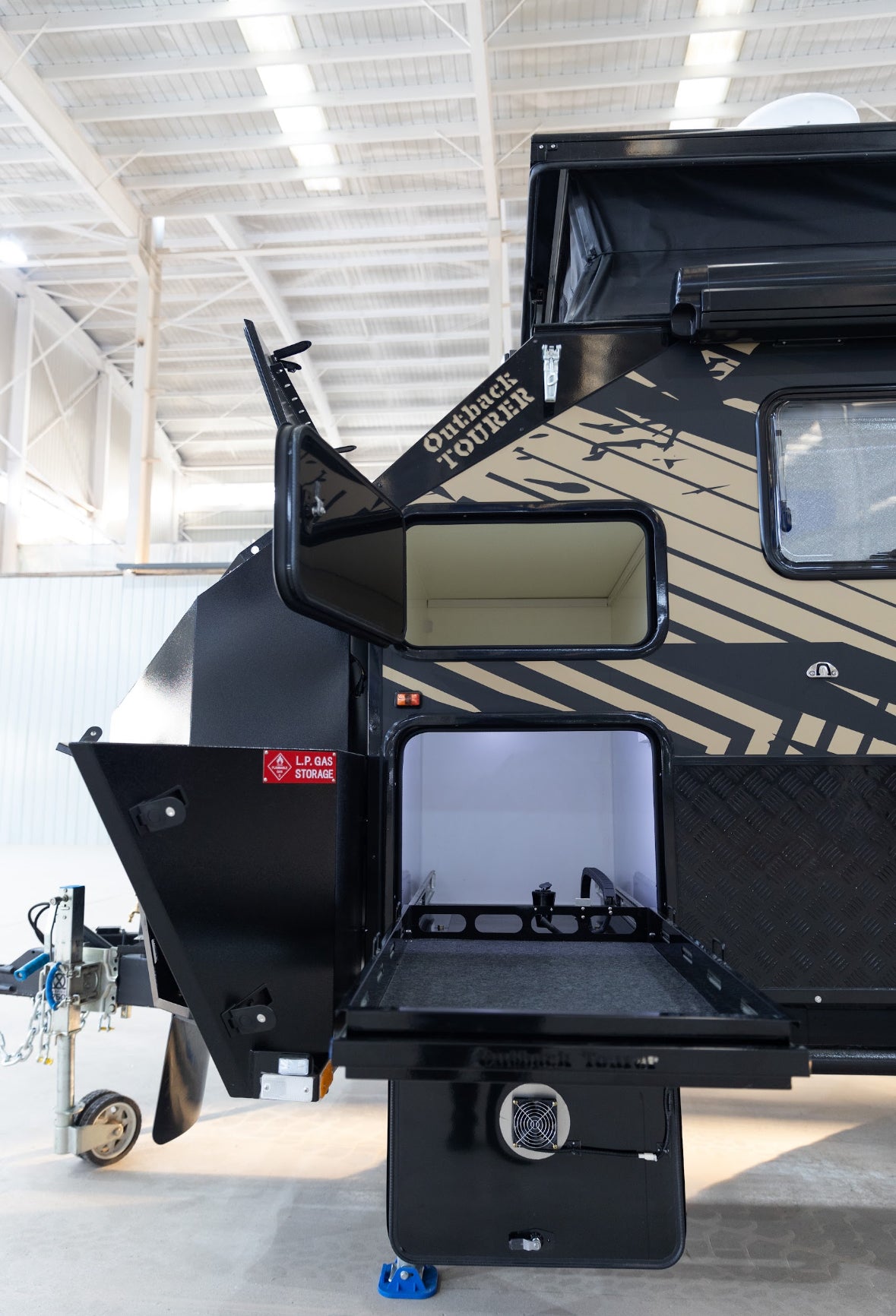

Fan in fridge slide
Rear view camera: Australian supplied wireless camera.
Luxuries inclusions -

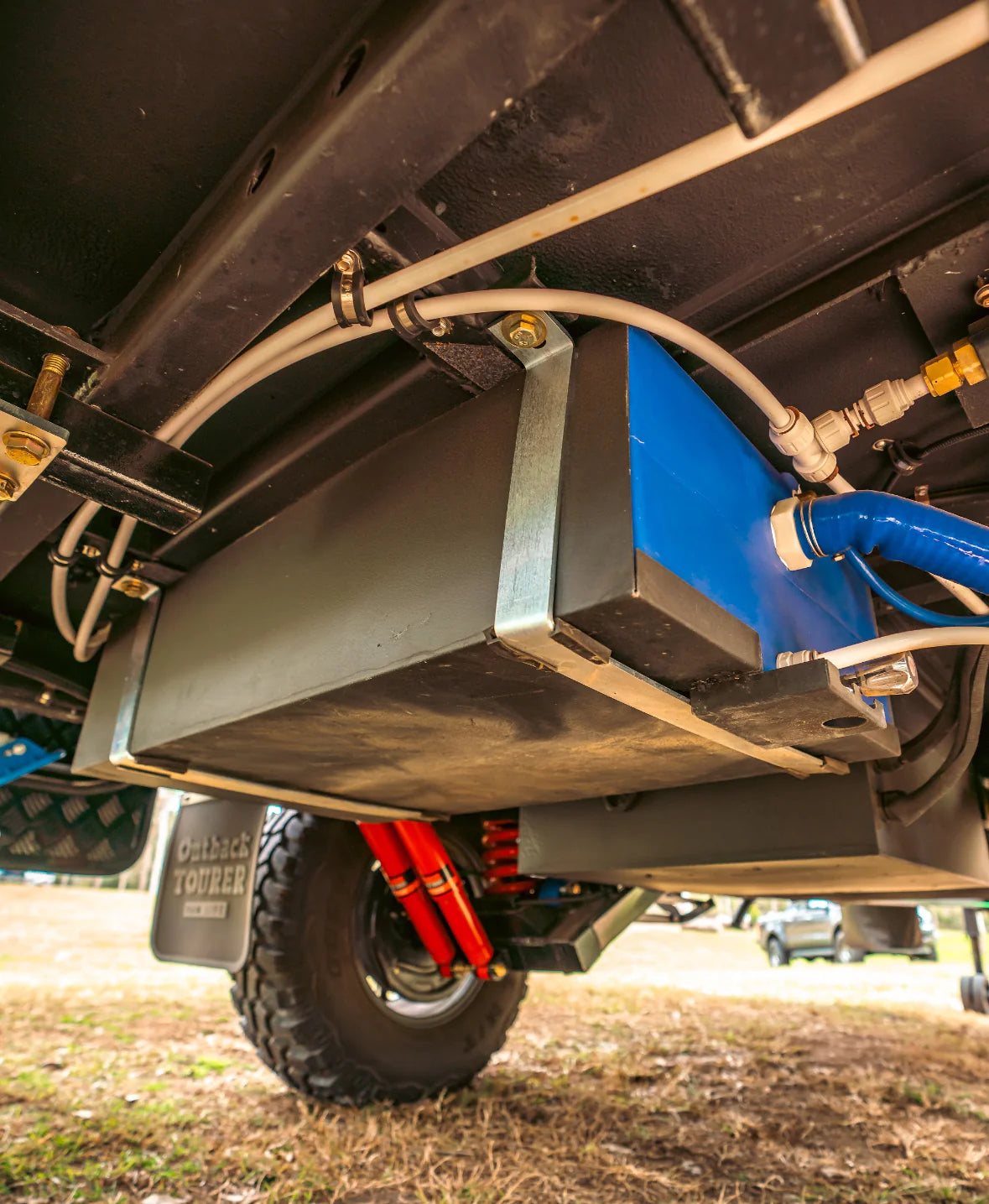

Front water tank: 120L poly with bash plate
Rear water tank: 120L poly with bash plate
Grey water tank: 80L poly with bash plate
Mains water inlet

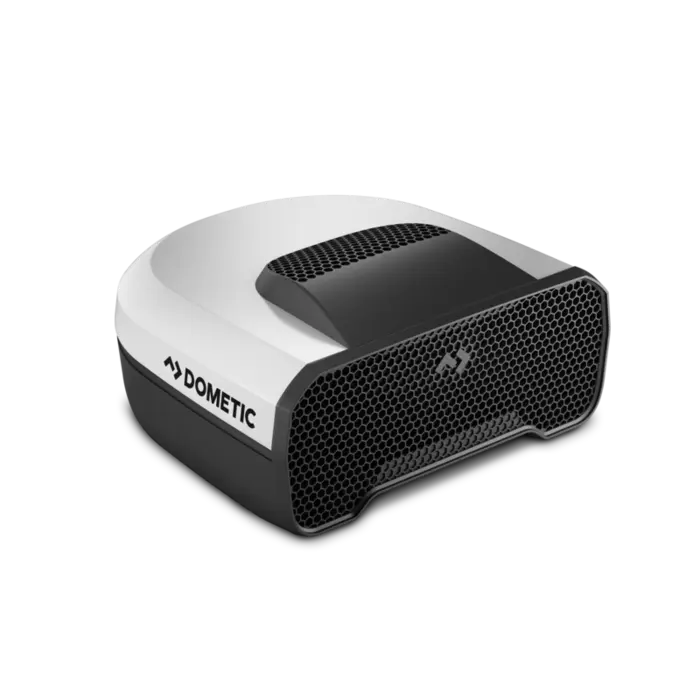

Dometic dust reduction system

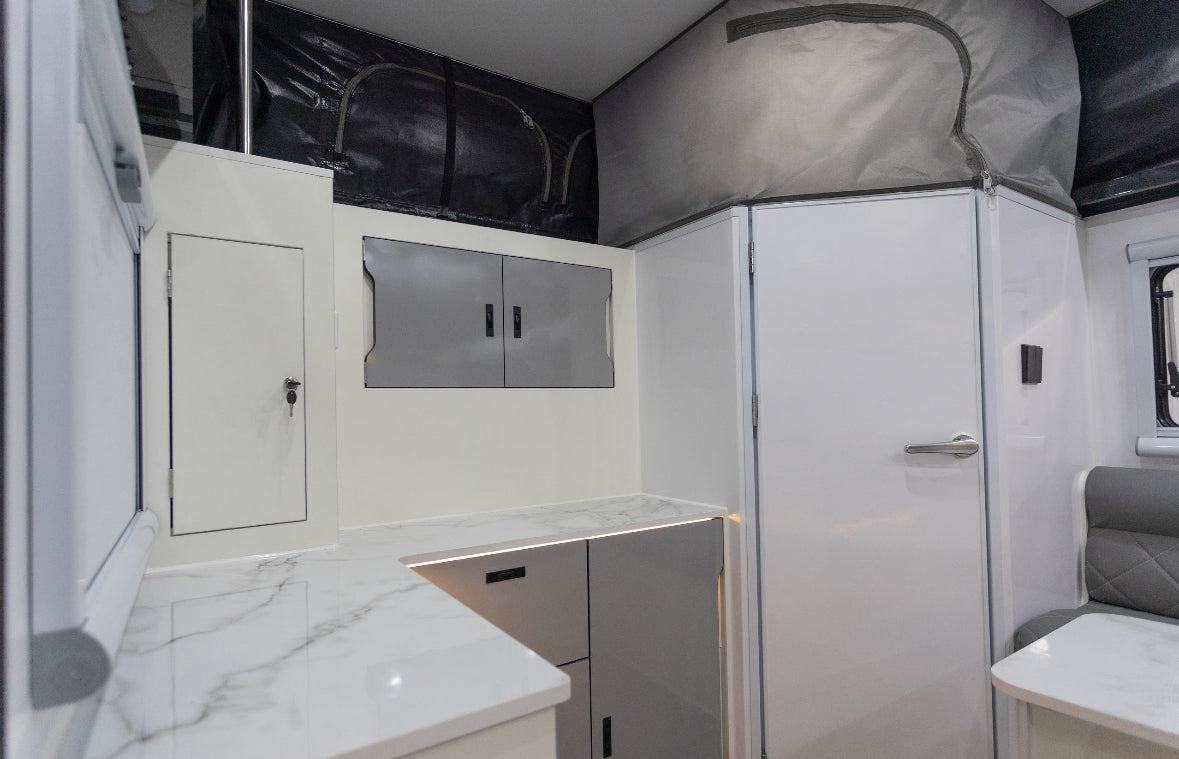

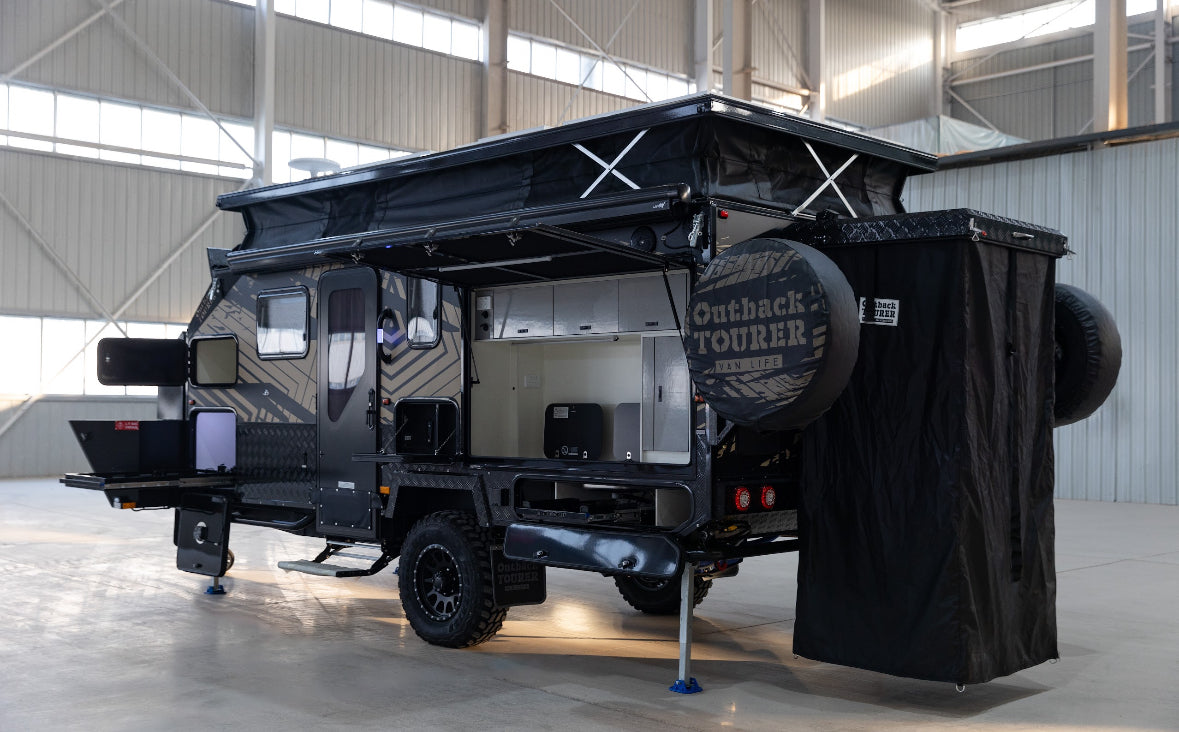

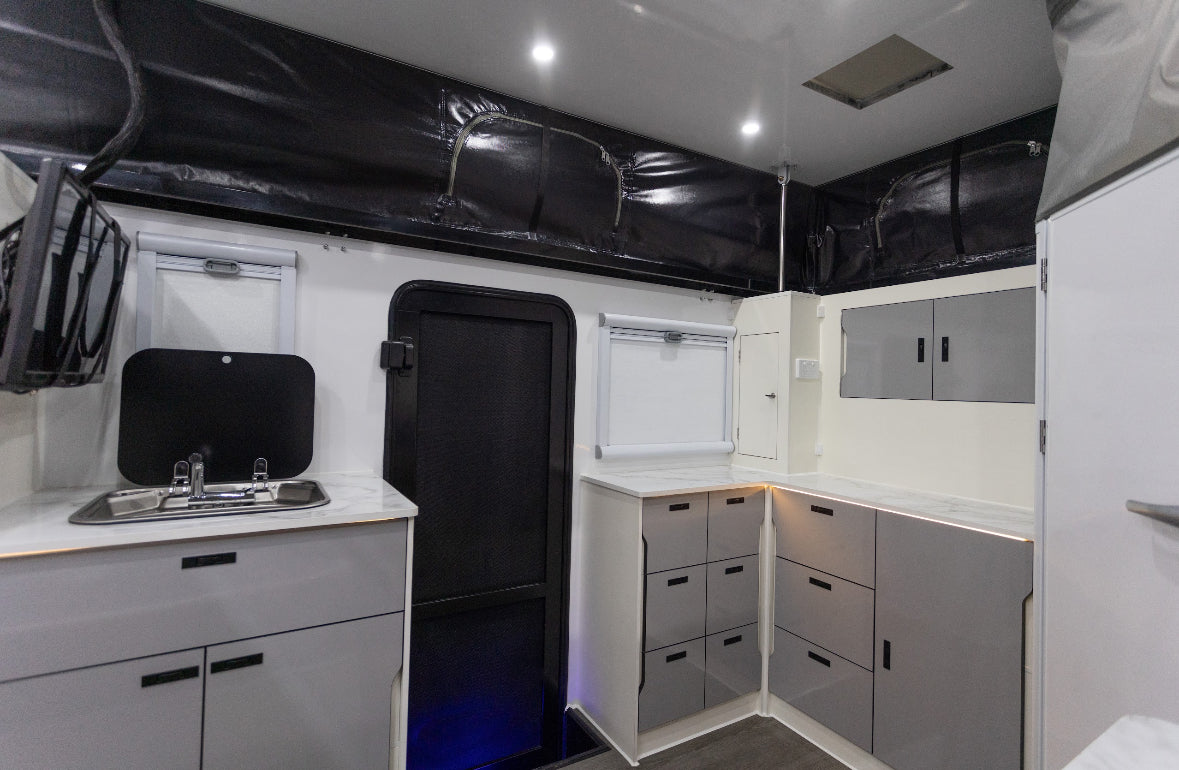

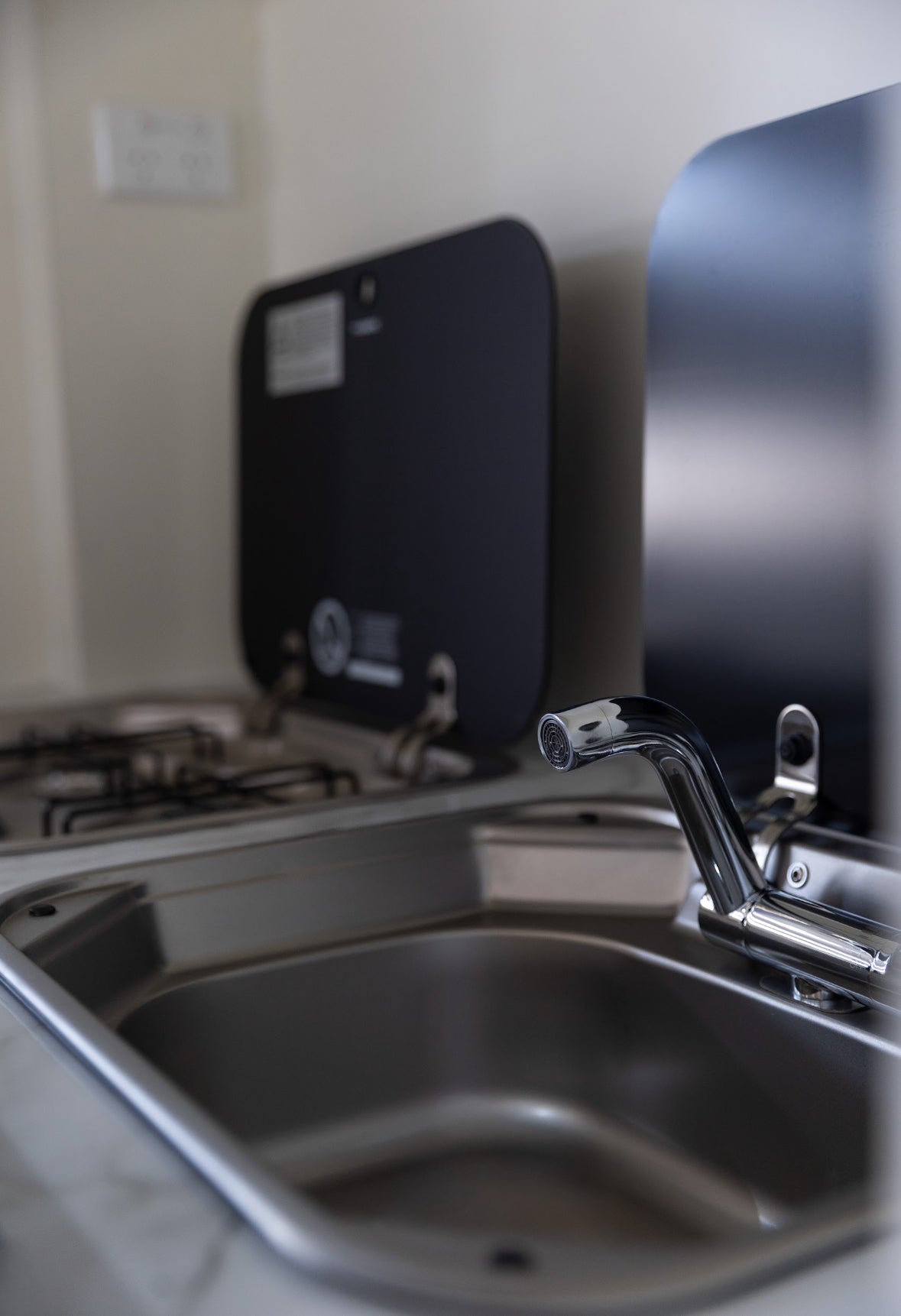

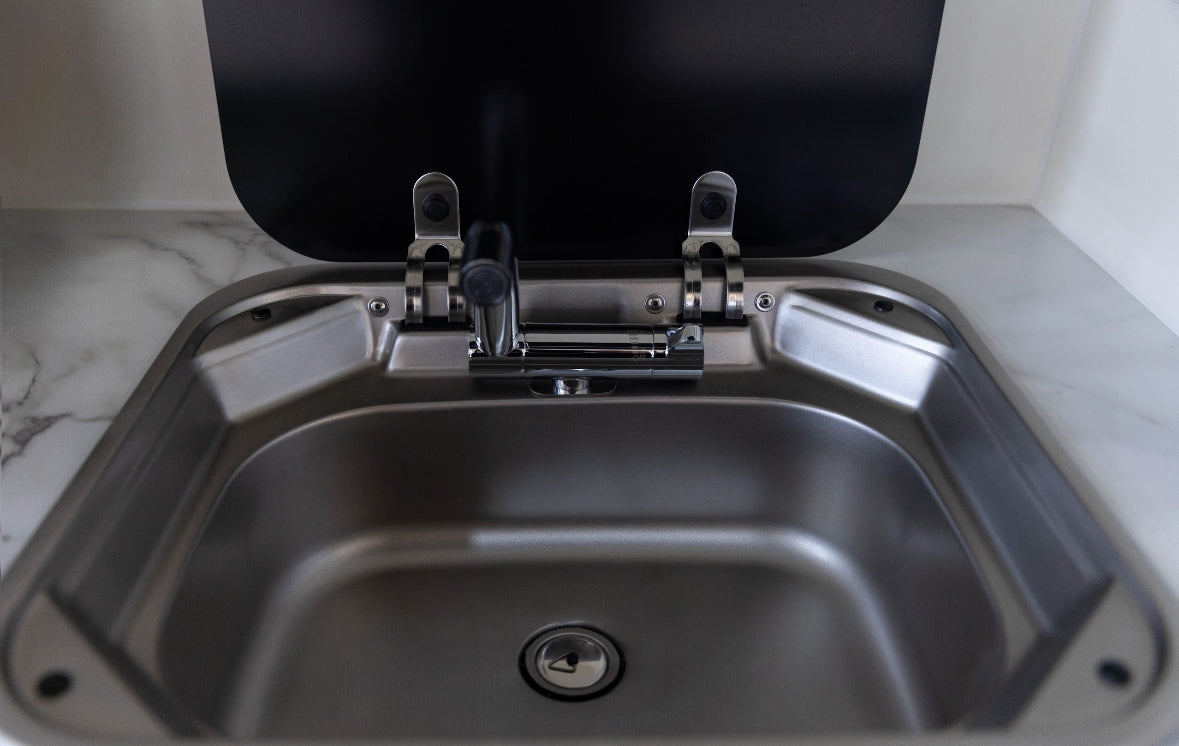

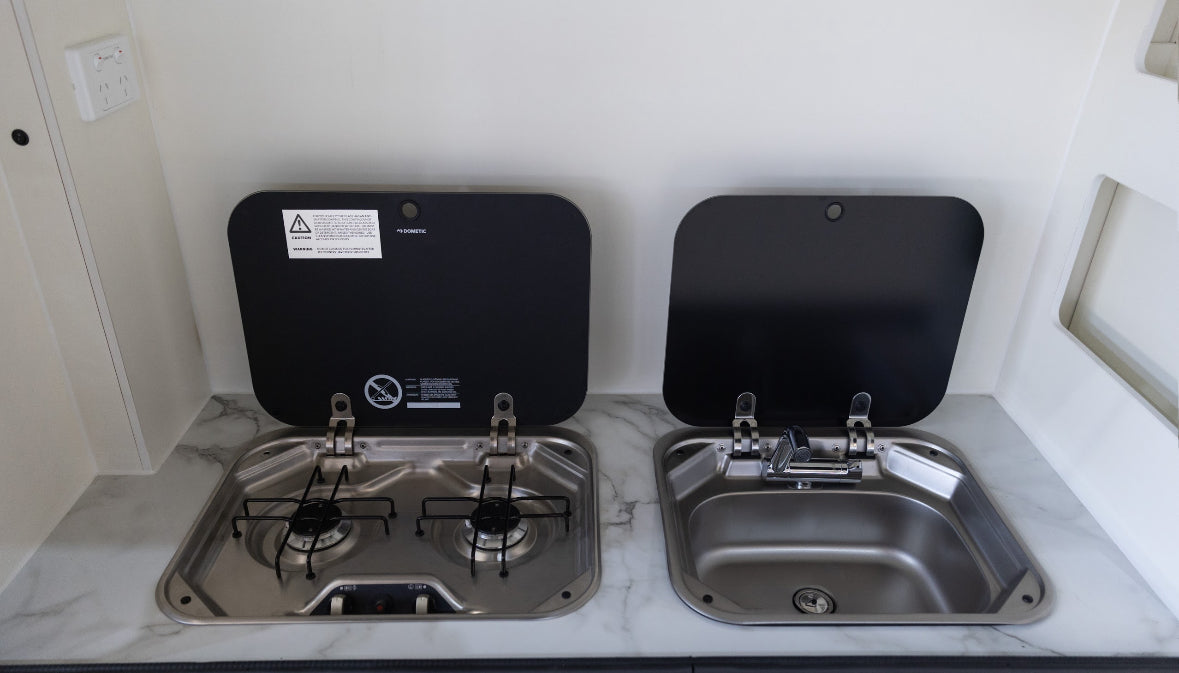

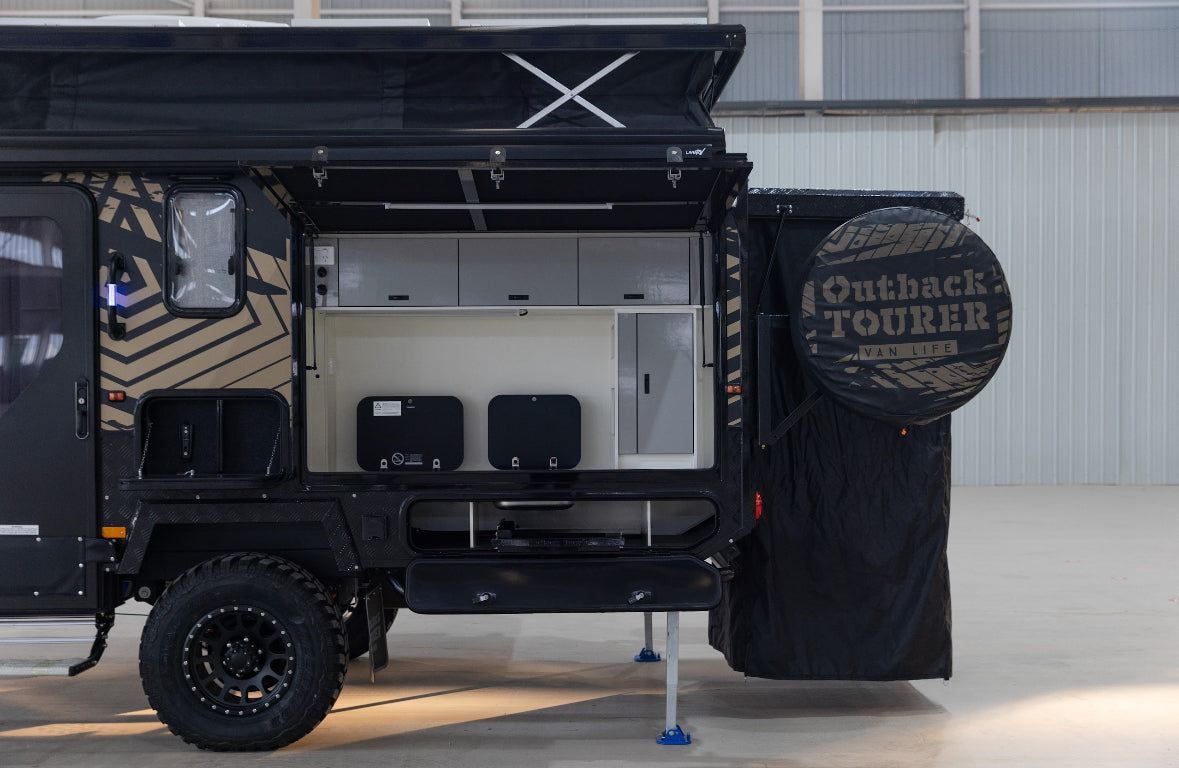

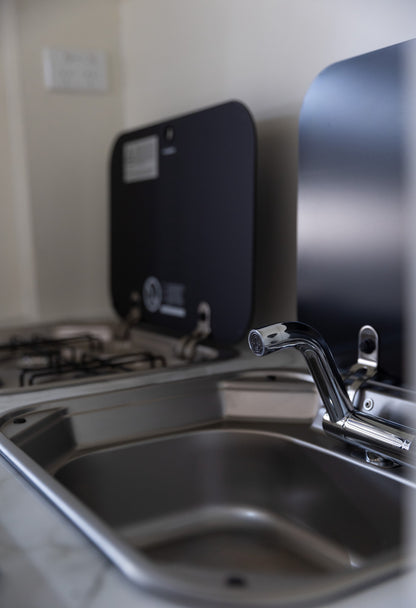

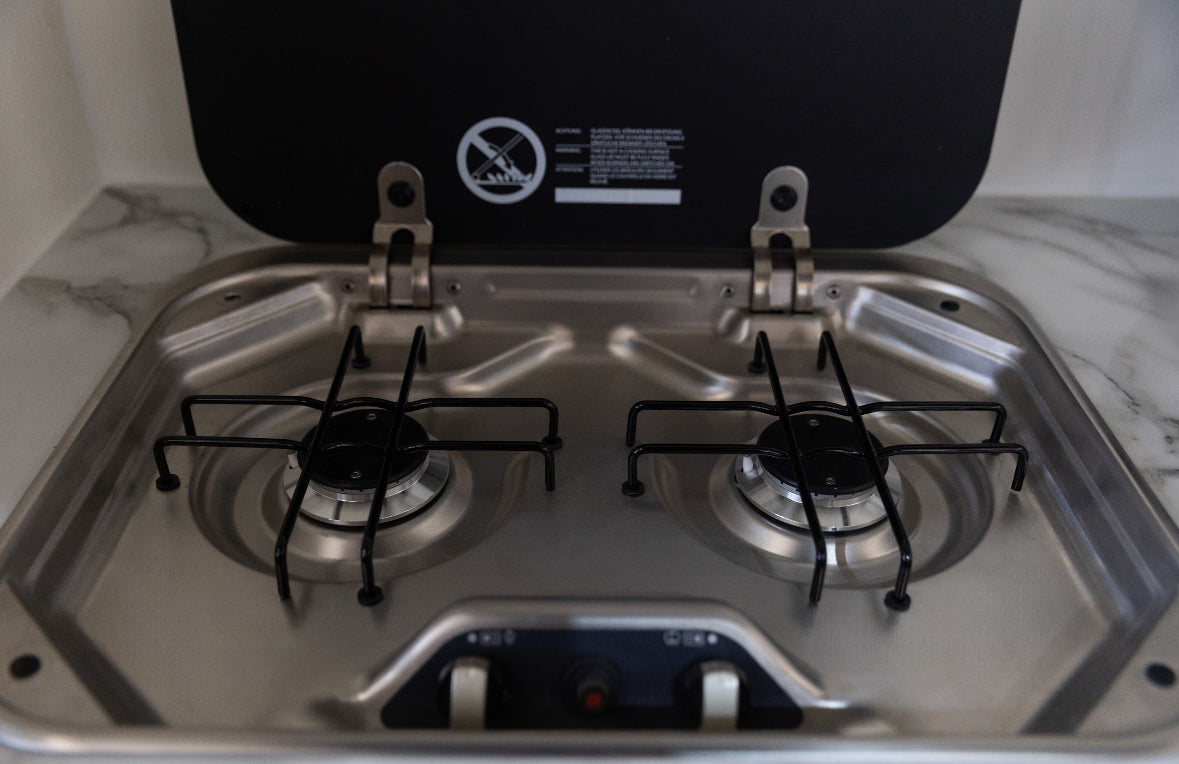

Stainless steel kitchen: Standard with dish rack & folding prep bench and wind guard

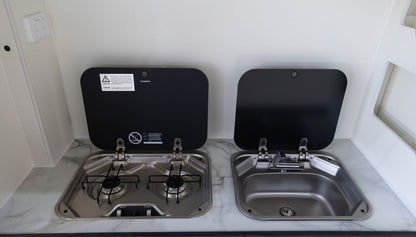

Gas & plumbing: External kitchen & internal kitchen & hot water system

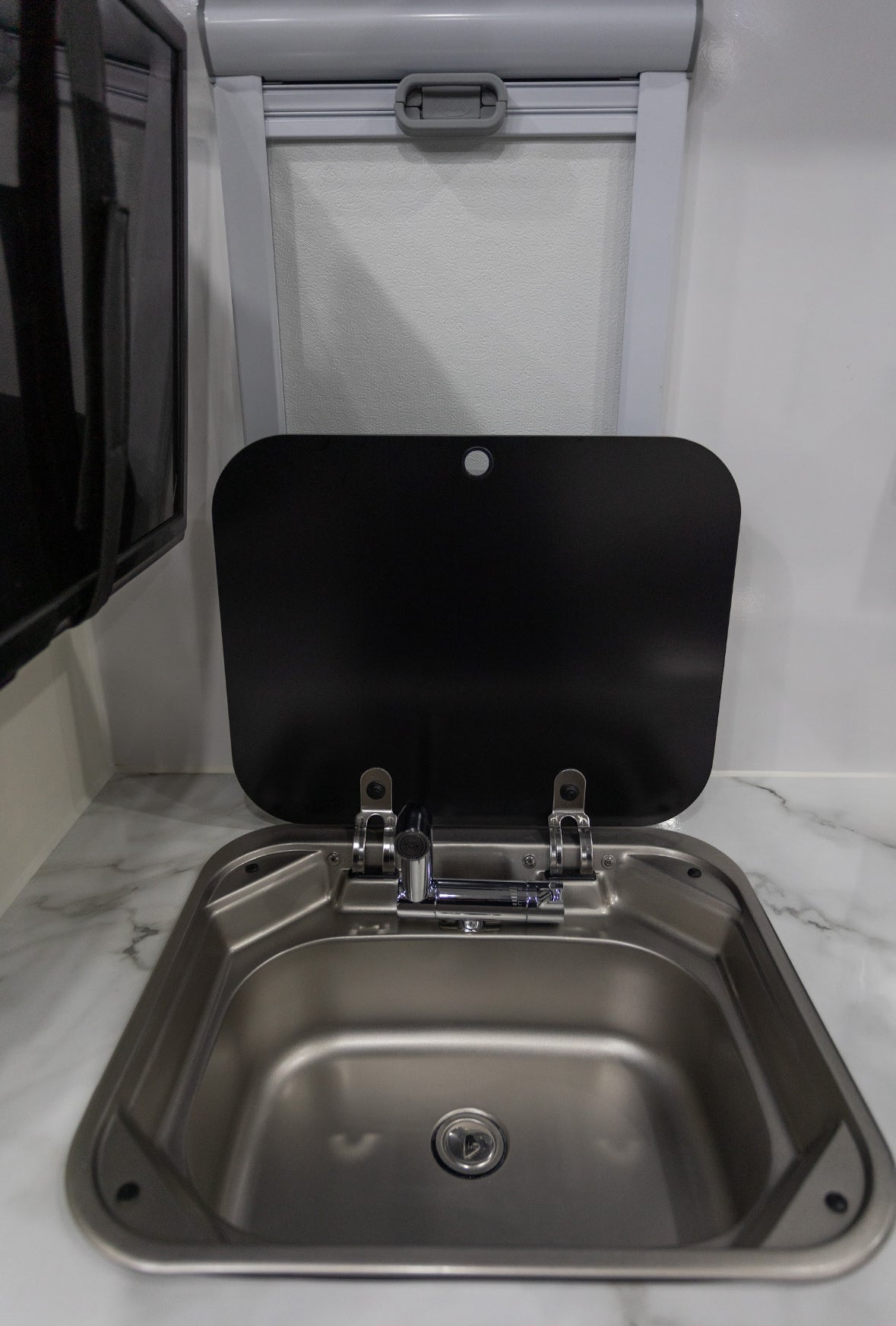

Plumbed water: To ensuite & sinks + A frame water hose tap

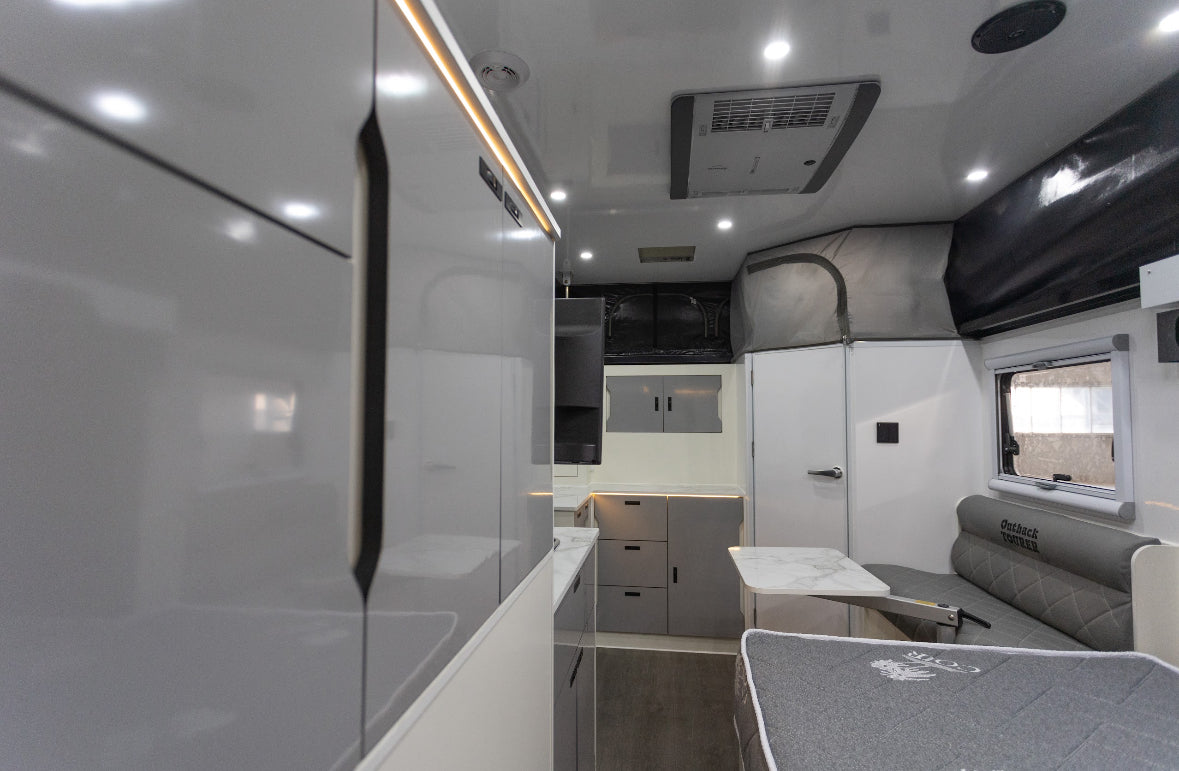

Air conditioning: Truma Aventa reverse cycle aircon
Australian made AU Focus 5KW diesel heater
Internal fans: 4 adjustable Ranger fans with 3 speed settings & timers

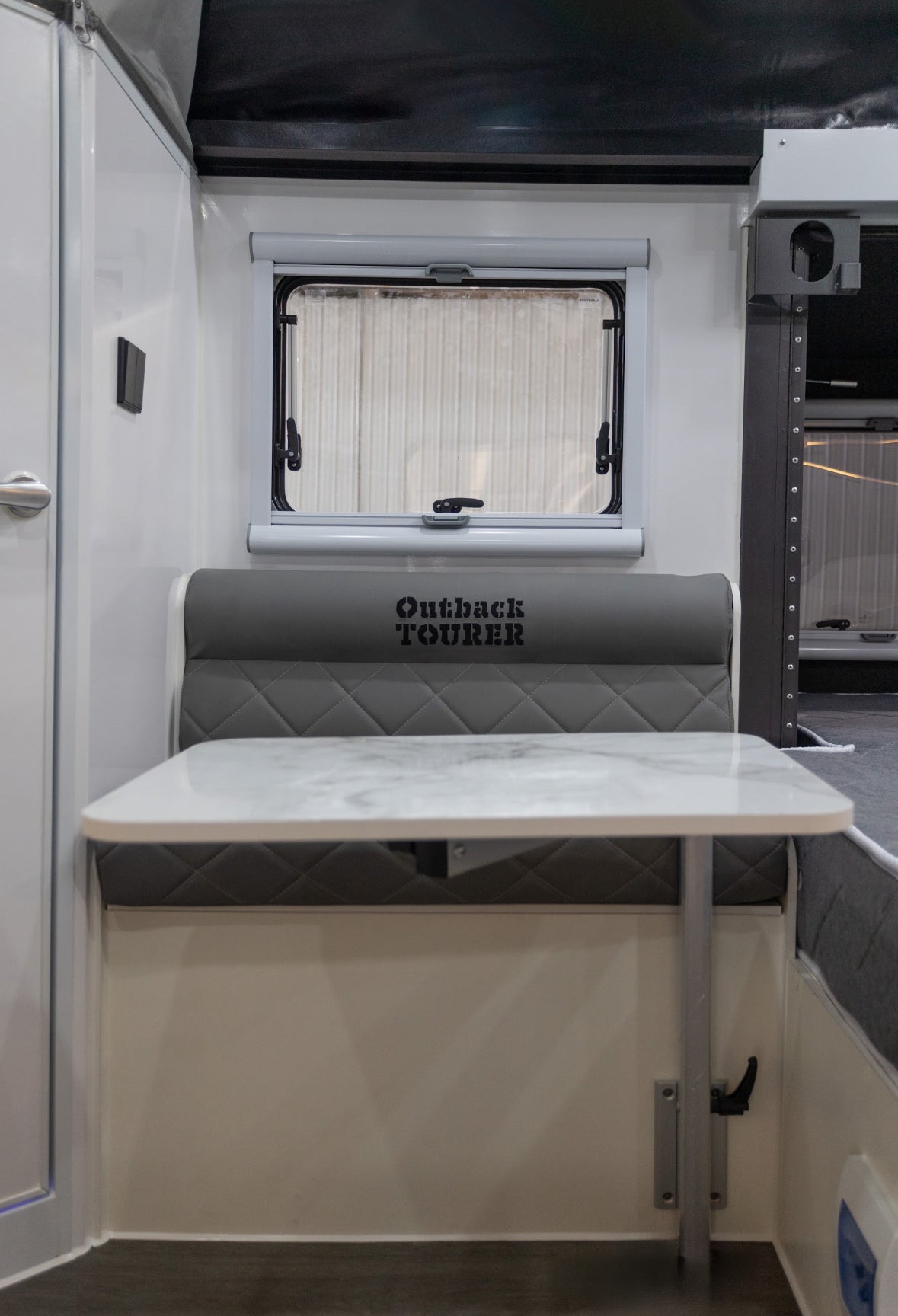

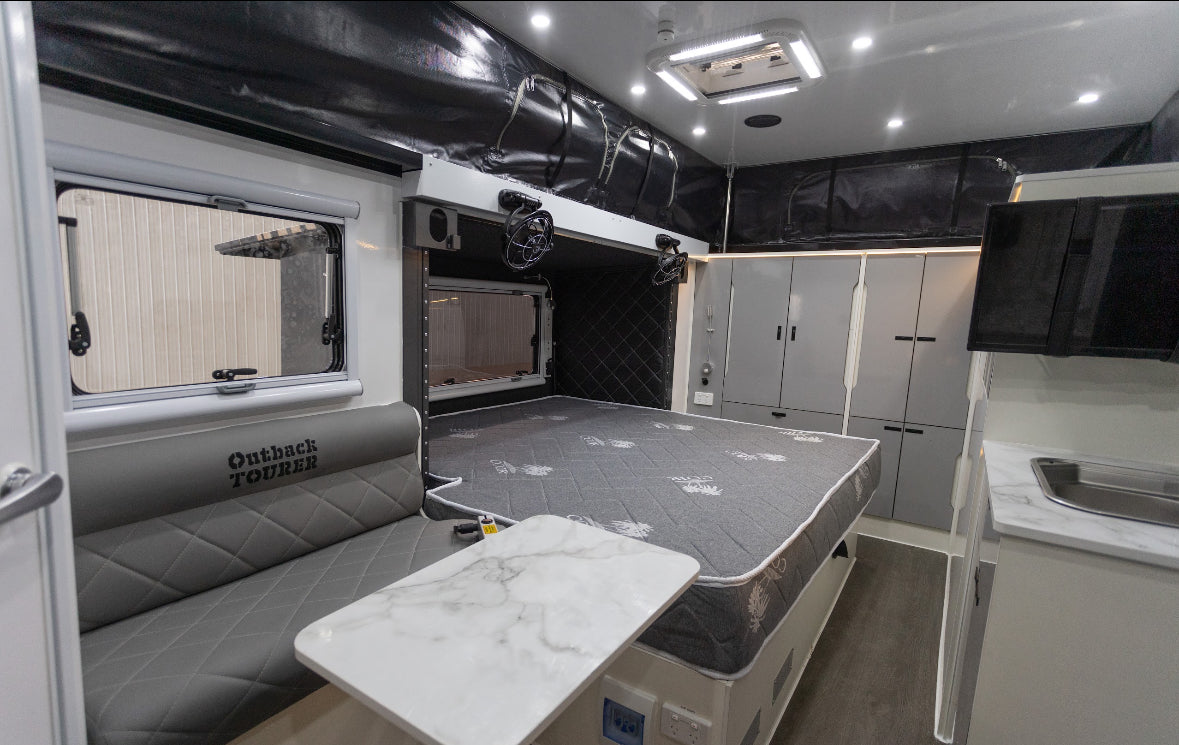

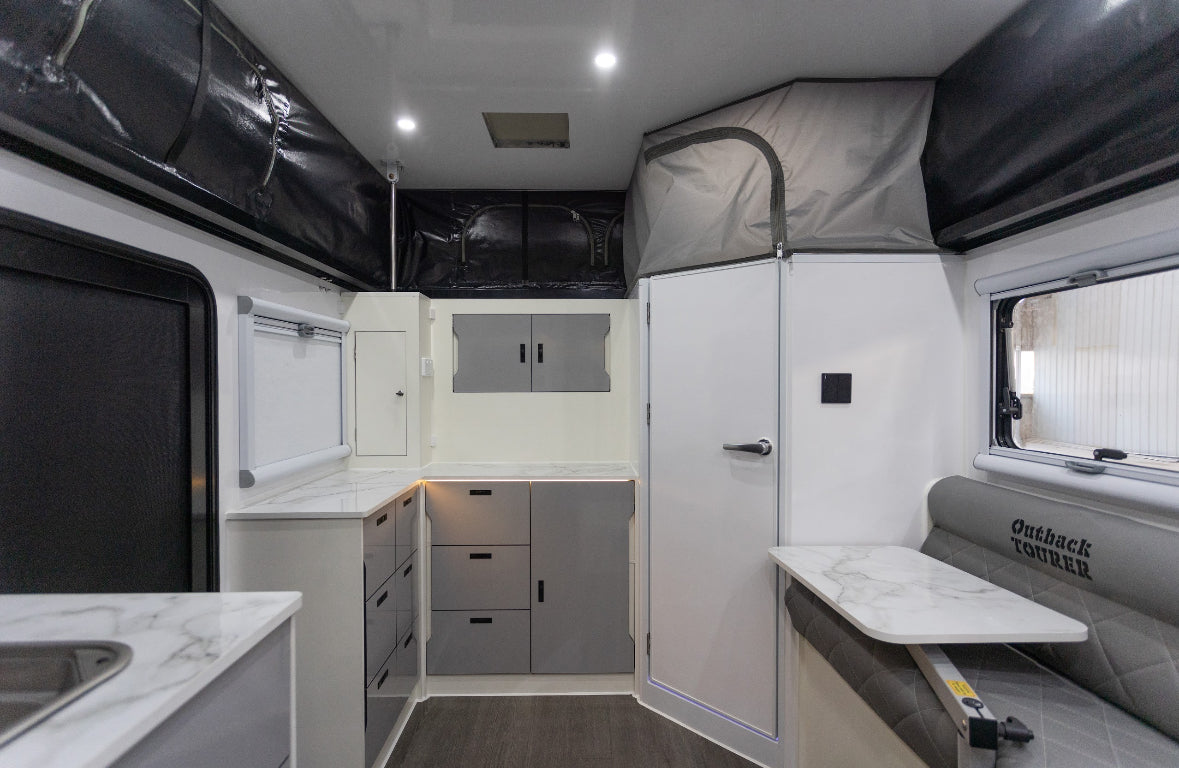

Internal seating: Pleather

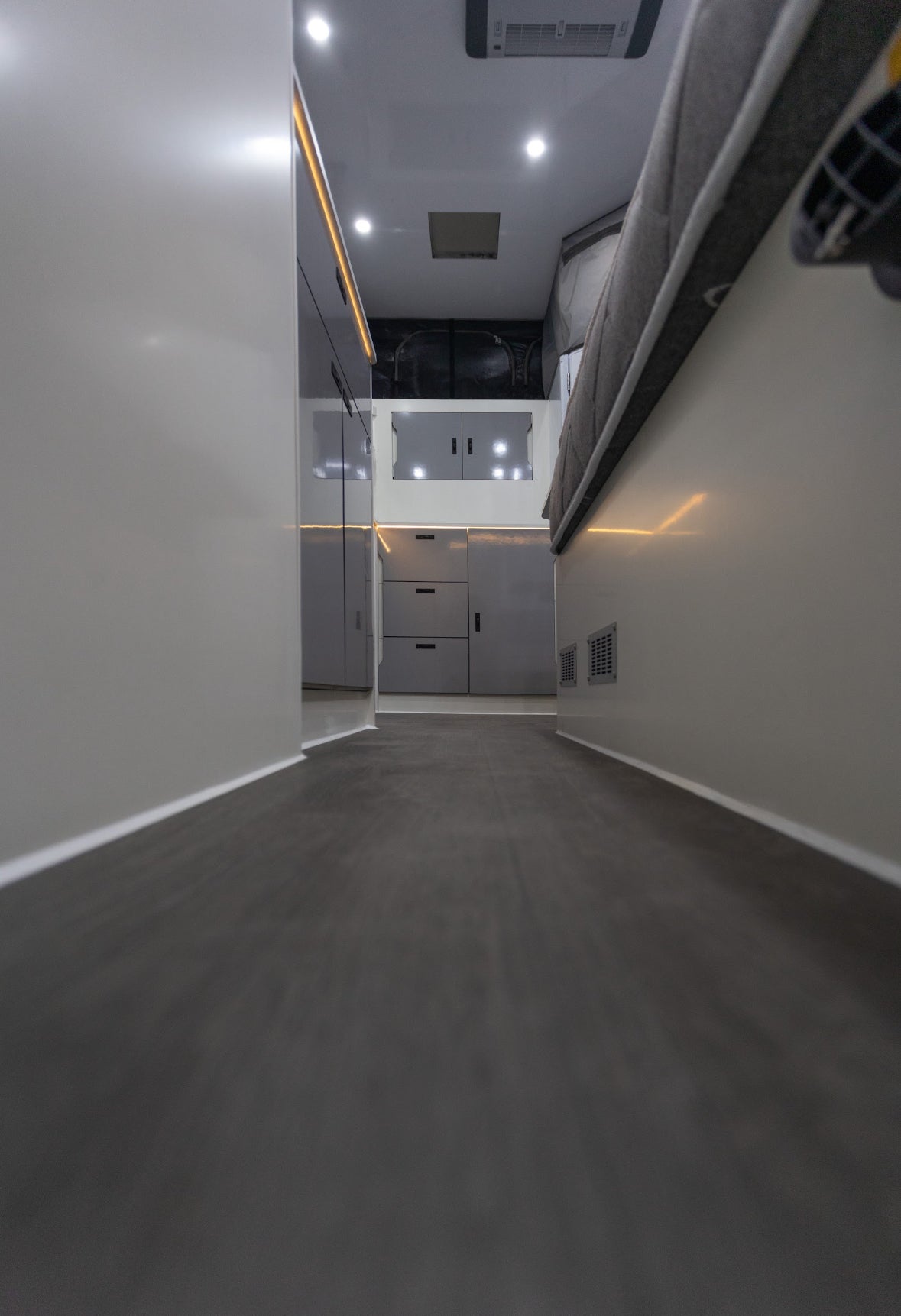

Flooring: Composite floor with premium vinyl

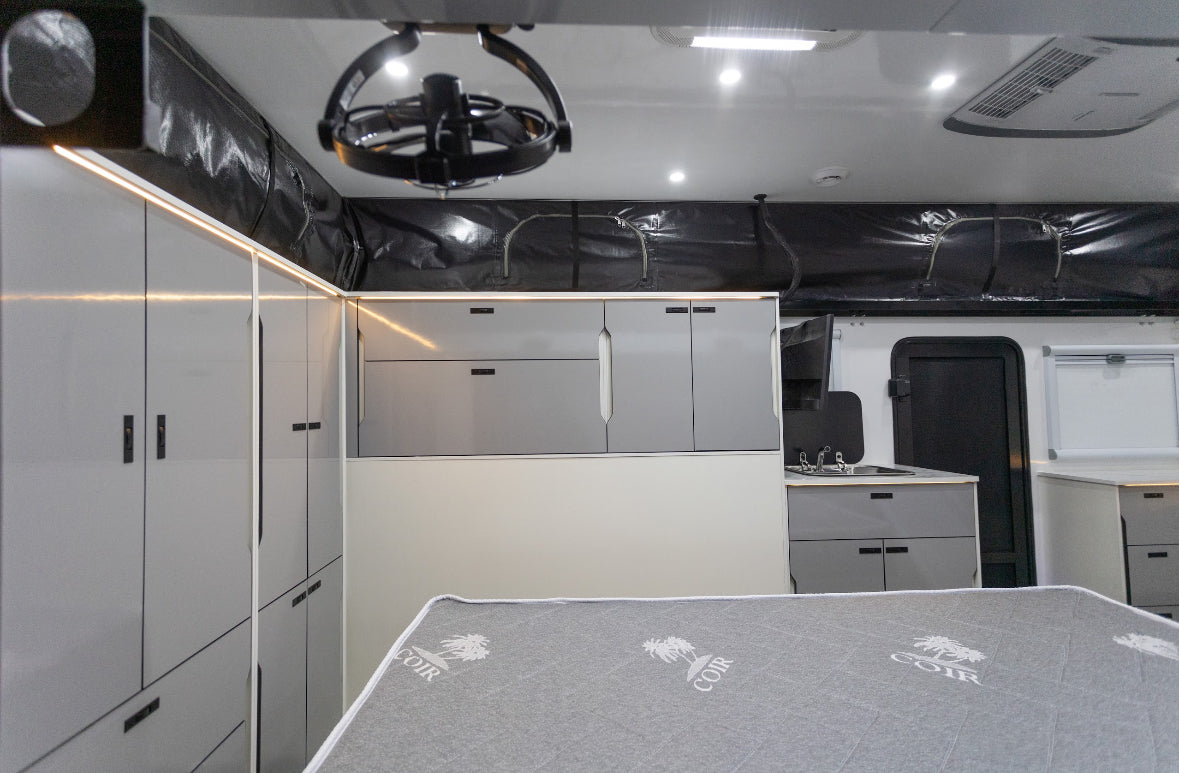

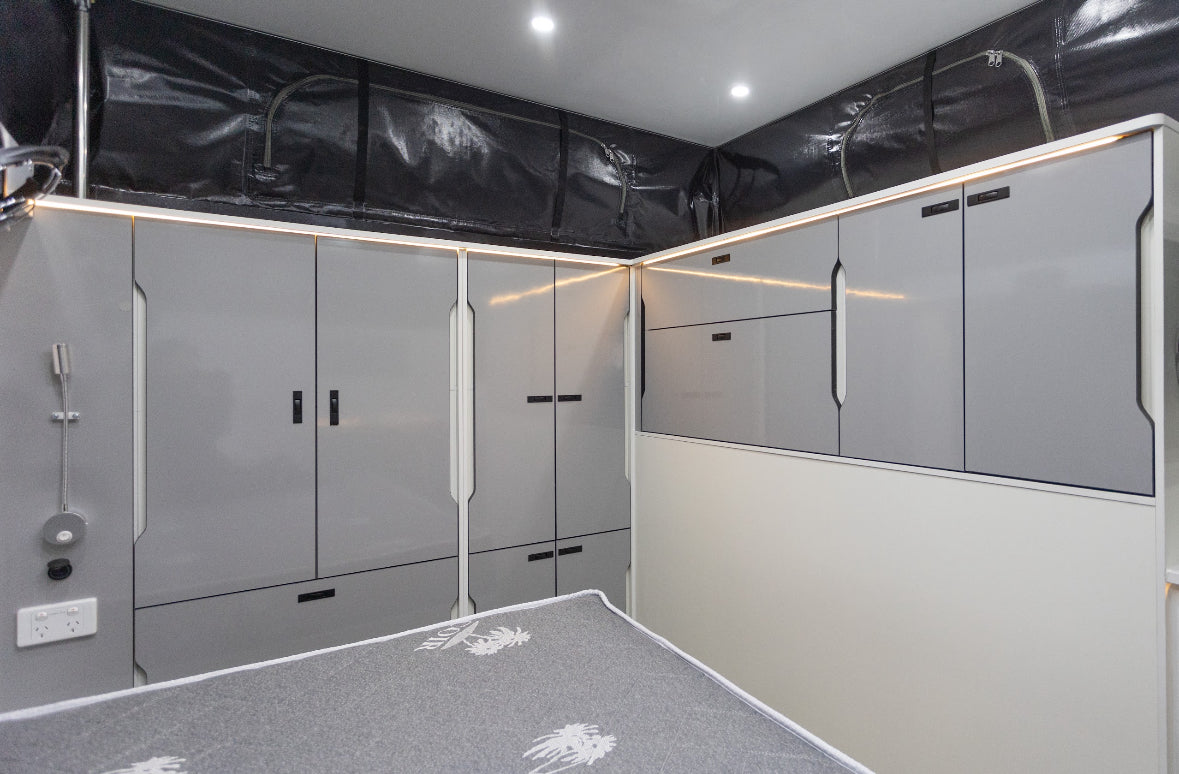

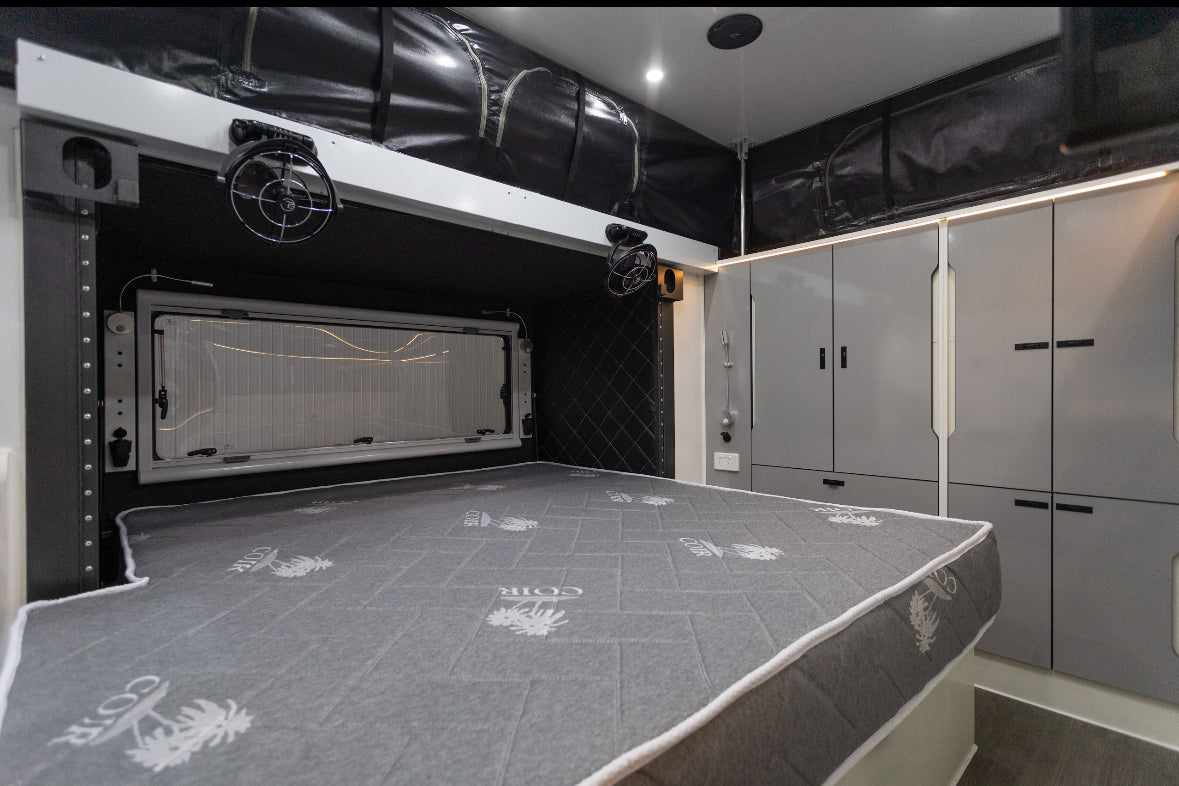

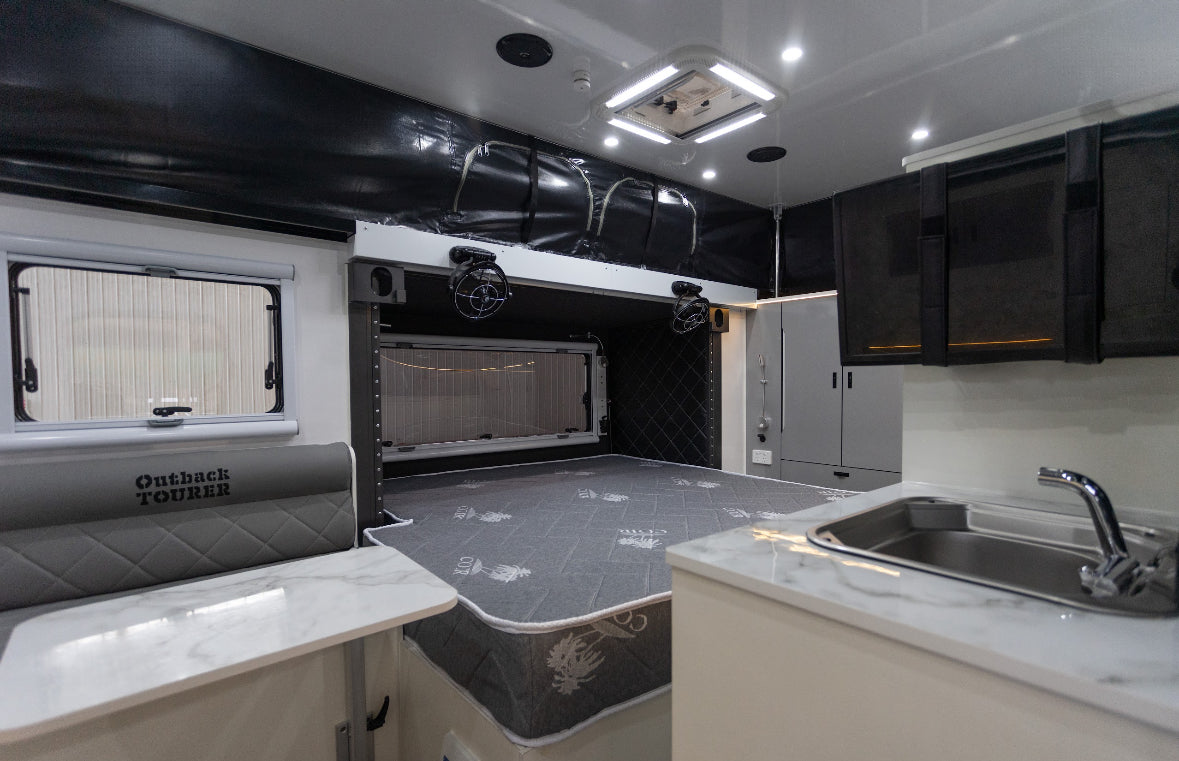

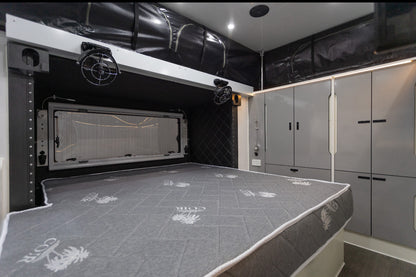

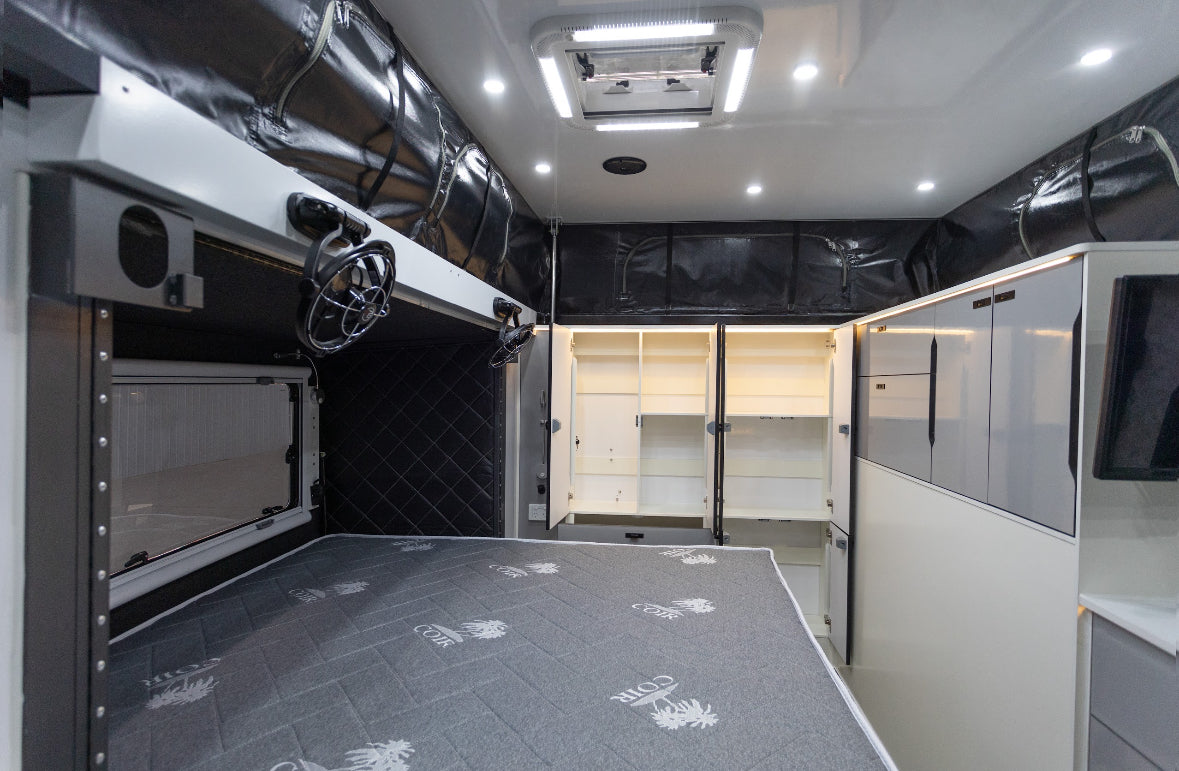

Mattress: King bed pillowtop with innerspring

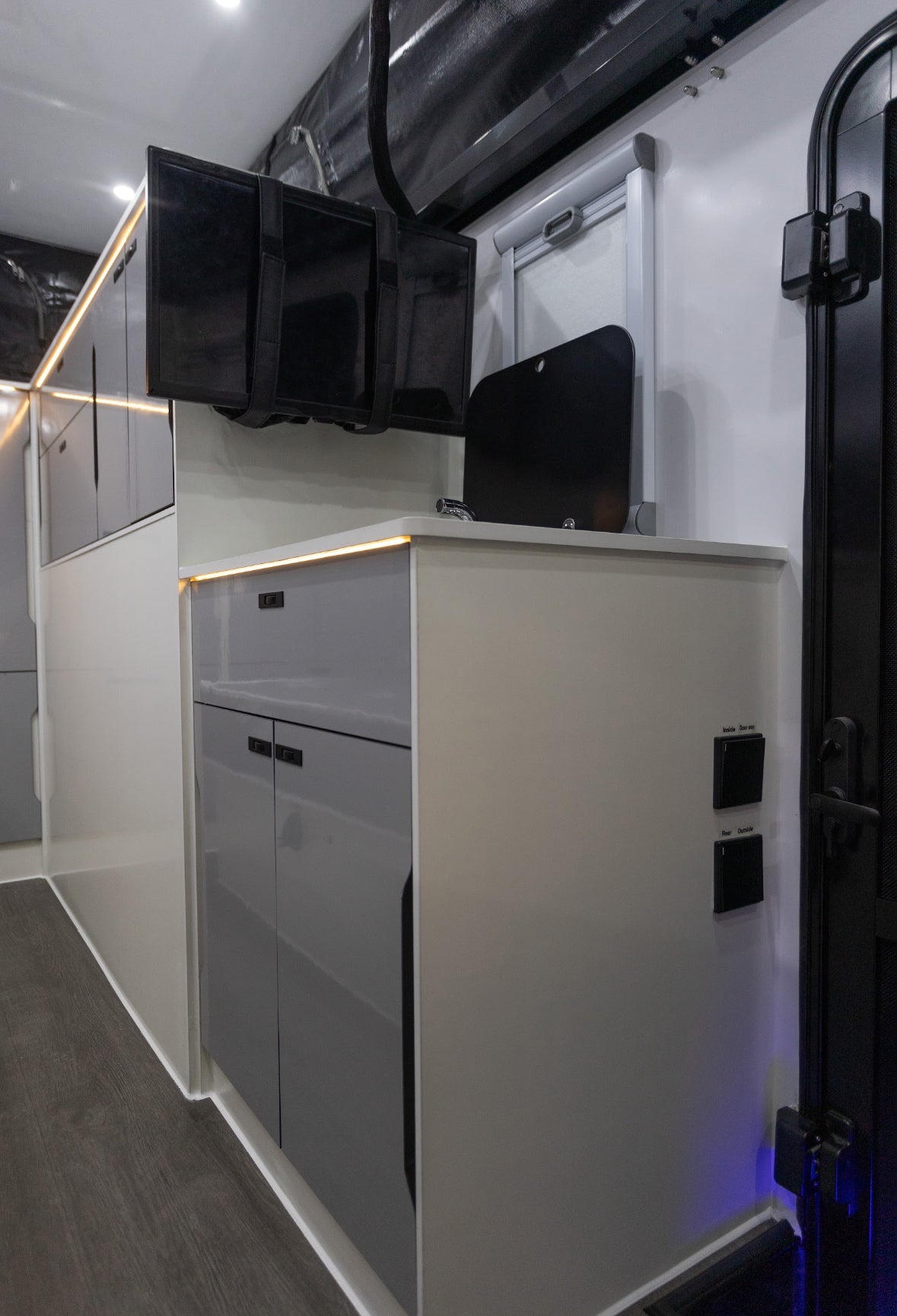

TV: 24 inch Australian supplied smart TV
Entertainment system: DVD/BT/CD/radio with 4 Fusion marine speakers

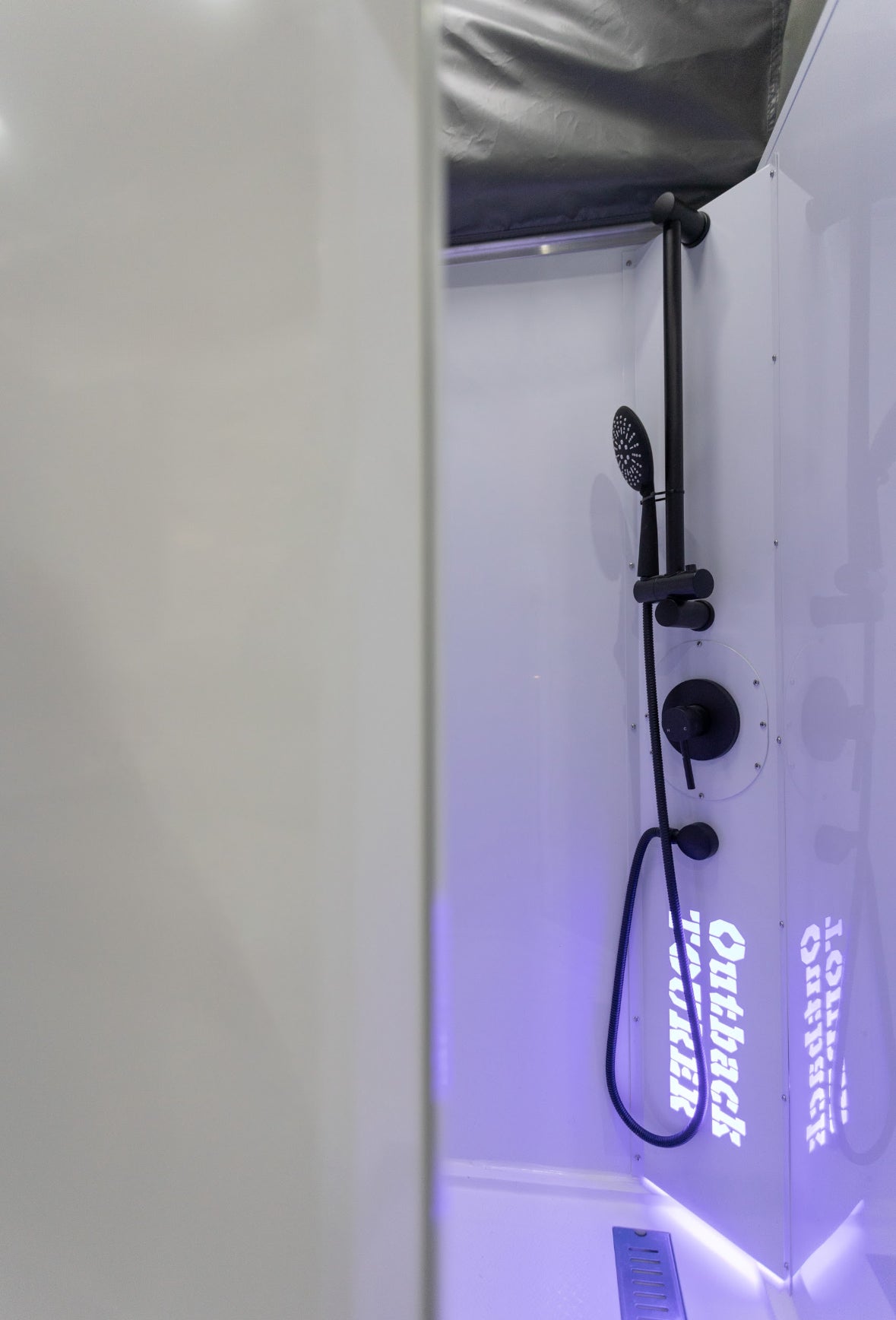

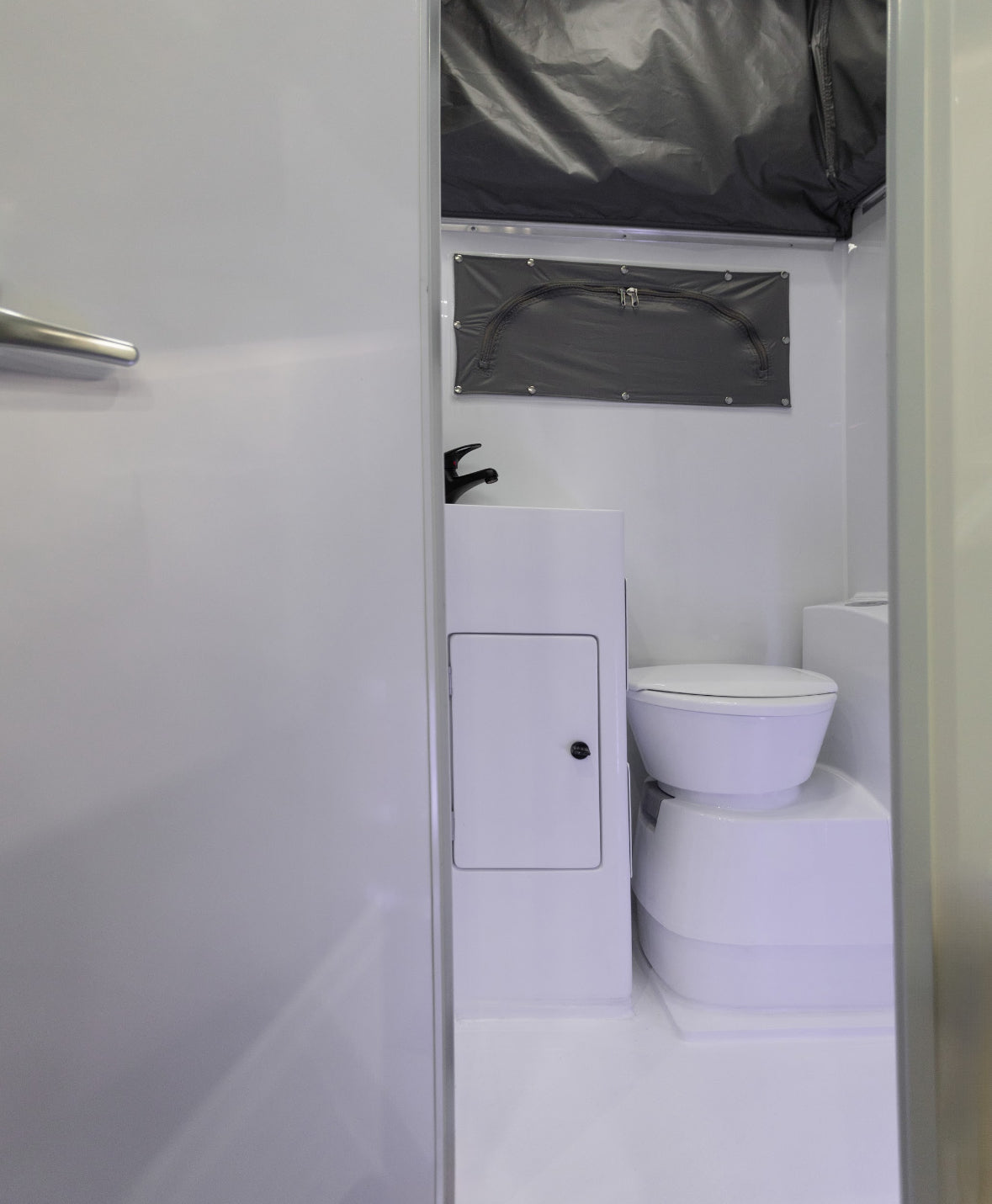

Internal ensuite: Dometic cassette toilet with curtain

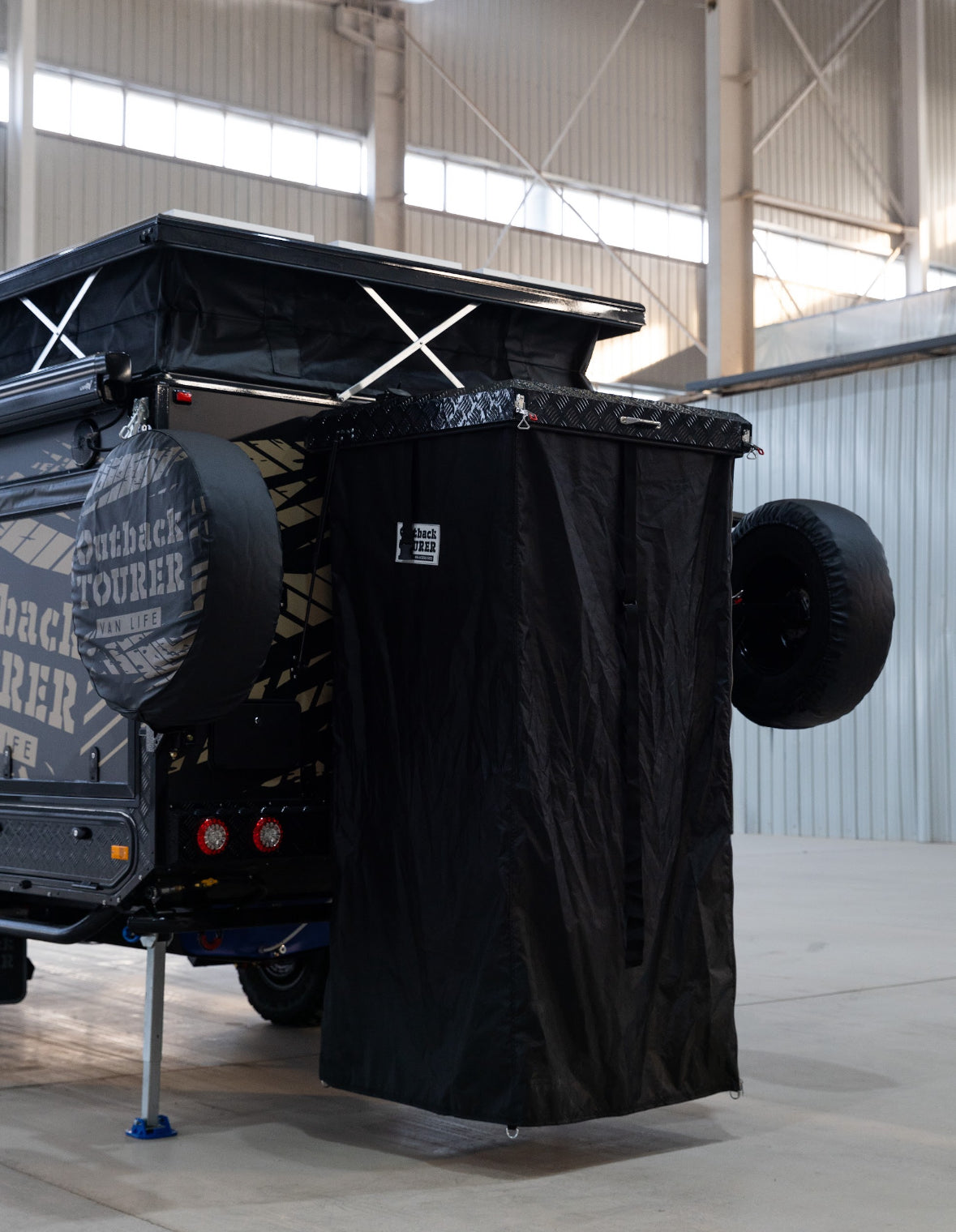

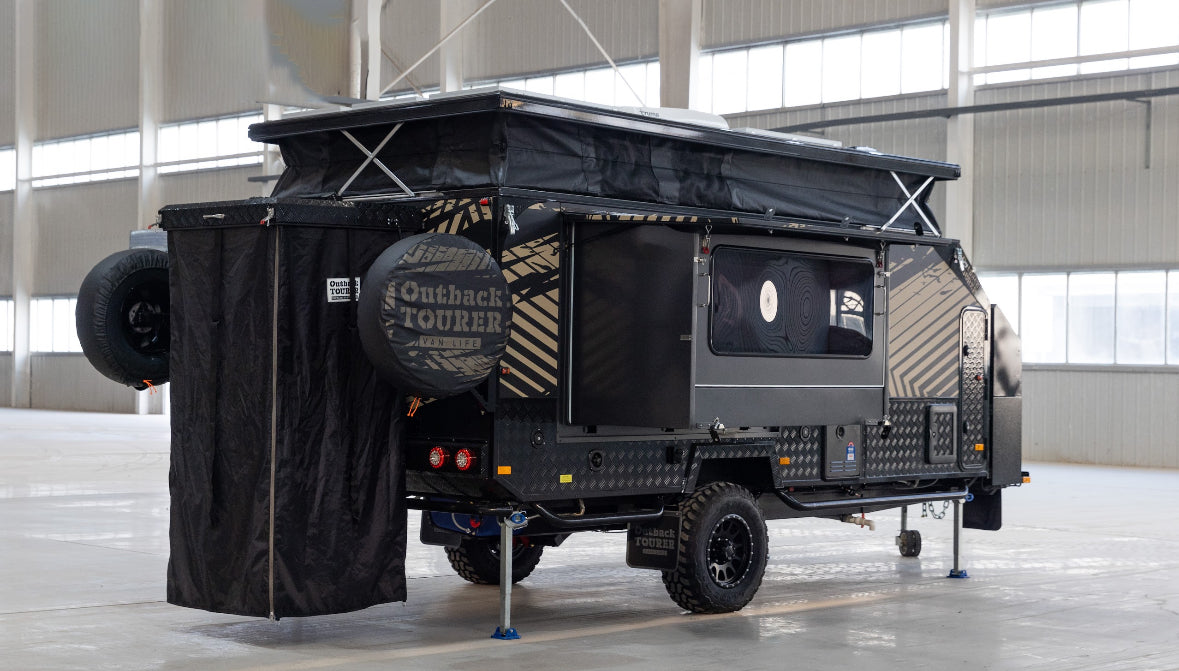

External shower: Included with shower tent & LED lighting
Electrical inclusions -
Battery: 2x 200ah LifePro4 batteries

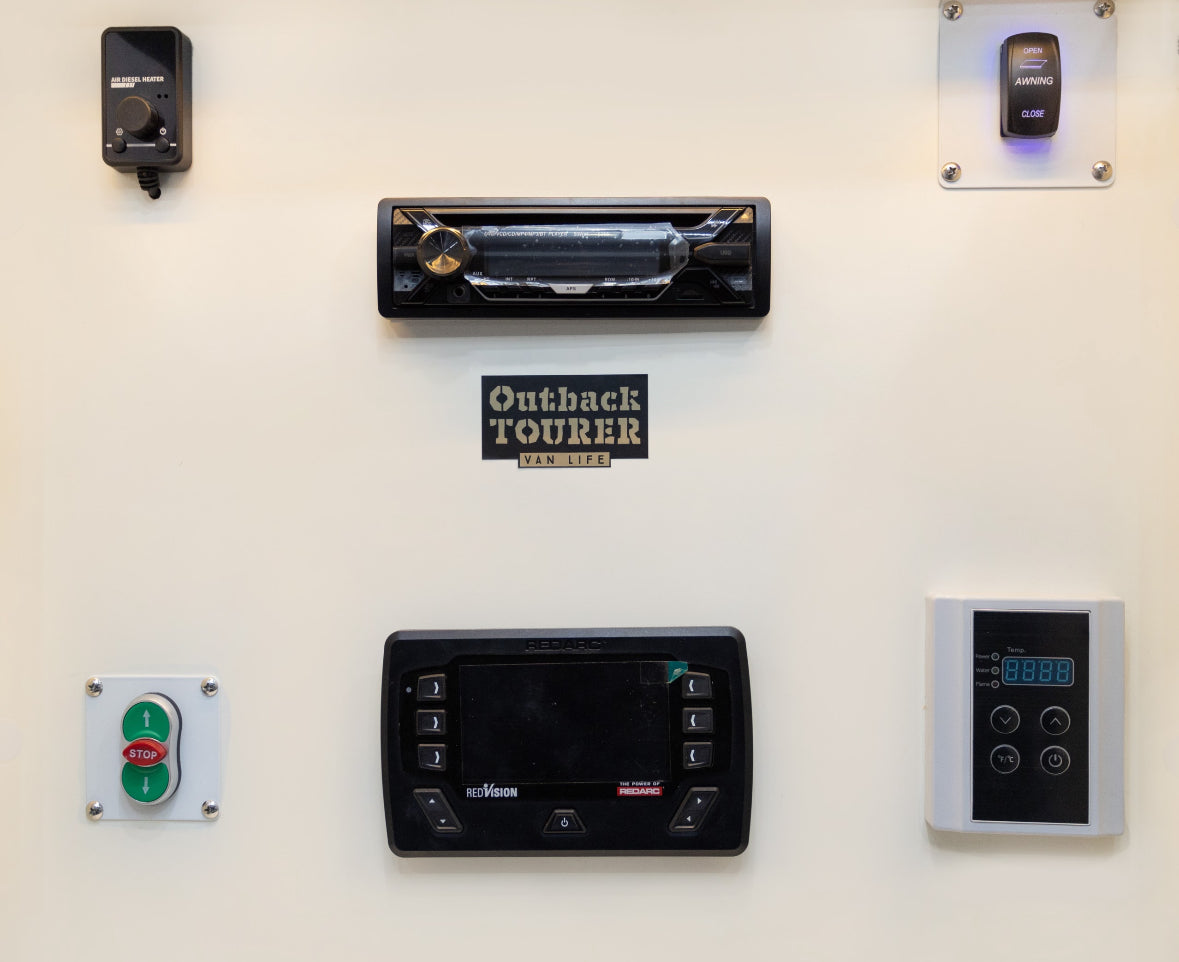

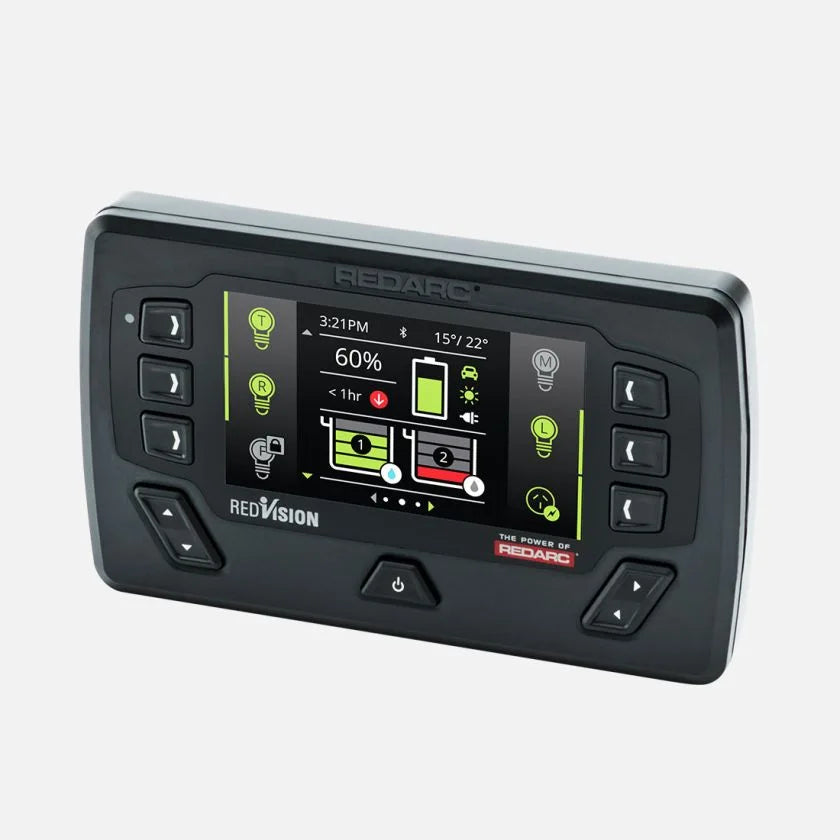

Battery management system: Redarc Manager 30 with Redvision display
Battery distribution system: Redarc Rouge 40A distribution box
Inverter: Redarc RS3 2000W pure sine wave inverter with auto transfer
Solar system: 600W monocrystalline solar panels roof mounted
External solar point
Water tank gauges: Standard monitored through Redvision display
Fridge slide power: 240V, Anderson plug, 12V socket
Internal 12V: 12V sockets, USB-A, USB-C
External 12V: 12V sockets, USB-A
External 12V: 2x 3.5mm sockets
External LED lighting: Dual tone (amber & white)
240V power system: 15A inlet & 10A outlet waterproof
Antenna: Milenco Power 900mm 360 degrees horizontal and vertical
Plug connection: 7 pin flat plug & 50amp Anderson plug.
Weights -
· Tare: 2540kg
· ATM: 2990kg
· Ball weight 220kg
· Length: 6850mm
· Height when closed: 2680mm
· Height when open: 3080mm
· Width: 2470mm
